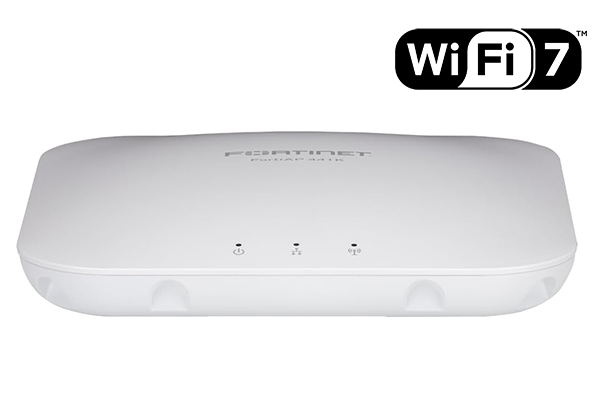

Fortinet FortiAP FAP-441K – Wi-Fi 7 Chuẩn Doanh Nghiệp Với Hiệu Suất Vượt Trội
Wi-Fi 7 | Four-Radio 2.4GHz + 5GHz + 6GHz + Scan | 10 Internal Antennas /
(4 External RPSMA dual band Connectors + 4 External RPSMA 6Ghz connectors + 2 Tri-band RPSMA connectors) + 1 BLE/Zigbee internal antenna
4x4 MU-MIMO | Up to 1.148 Gbps + 8.648 Gbps + 11.53 Gbps
SKU: FAP-441K
Danh mục: WIFI
Liên hệ
Chính sách bán hàng
Hàng chính hãng, CO/CQ đầy đủ
Giá cạnh tranh, ưu đãi dự án & đại lý
Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7
Miễn phí giao hàng toàn quốc
Bảo hành minh bạch, chuyên nghiệp
Hỗ trợ trực tuyến
Specifications:
| FortiAP 441K | FortiAP 443K | |
|---|---|---|
| Hardware | ||
| Hardware Type | Indoor AP | |
| Number of Radios | 4 + 1 BLE | |
| Number of Antennas | Internal x4 2.4/5GHz Dual band WiFi + x4 6GHz band WiFi x2 Tri-band Scanning + 1 Single band 2.4GHz BLE/ ZigBee + 1GPS antenna | External x4 2.4/5GHz Dual band WiFi + x4 6GHz band WiFi x2 Tri-band Scanning + 1 Single band 2.4GHz BLE/ ZigBee + 1GPS antenna |
| Antenna Type and Peak Gain | Omni Directional Antenna Dual band antenna: 4.0 dBi for 2.4GHz 5.6 dBi for 5 GHz 6GHz antenna: 5.4dBi for 6GHz band Tri-band antenna: 4.0 dBi for 2.4 GHz, 6.0 dBi for 5 GHz and 5.7 dBi for 6 GHz band BLE antenna: 5.1 dBi for 2.4GHz GPS active antenna: 2.2 dBi antenna | Omni Directional Antenna Dual band antenna: 5.0 dBi for 2.4GHz 5.0 dBi for 5 GHz 6GHz antenna: 5.8dBi for 6GHz band Tri-band antenna: 5.0 dBi for 2.4 GHz, 5.0 dBi for 5 GHz and 4.0 dBi for 6 GHz band BLE antenna: 5.1 dBi for 2.4GHz GPS active antenna: 2.2 dBi antenna |
| Frequency Bands (GHz) | . ISM 2.4-2.484 GHz · U-NII-1 5.15-5.25 GHz · U-NII-2A 5.25-5.35 GHz · U-NII-2C 5.47-5.725 GHz · U-NII-3 5.725-5.85 GHz · U-NII-4 5.850-5.925 GHz · U-NII-5 5.925–6.425 GHz · U-NII-6 6.425–6.525 GHz · U-NII-7 6.525–6.875 GHz · U-NII-8 6.875–7.125 GHz | |
| Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4x4 Service | |
| Radio 2 Capabilities | Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160/240MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4x4 Service | |
| Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4x4 Service | |
| Radio 4 Capabilities | Frequency band: 2.4/5.0/6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Scanning | |
| Maximum Data Rate | 2.4GHz band: up to 1.148 Gbps 5.0GHz band: up to 8.648 Gbps 6.0GHz band: up to 11.530 Gbps | |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power | |
| GNSS |
|
|
| Interfaces | x2 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) x1 Type 3.0 USB at 4.5W x1 RS-232 RJ45 Serial Port | |
| Power over Ethernet (PoE) | x1 802.3bt PoE default or x2 802.3at PoE (Dual PoE current sharing) | |
| Simultaneous SSIDs | Up to 24 | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist | |
| Maximum Tx Power (Conducted) | 2.4GHz band: 29 dBm / 794 mW (4 chains combined) 5.0GHz band: 27.8 dBm / 602 mW (4 chains combined) 6.0GHz band: 23 dBm / 200 mW (4 chains combined @ 160MHz BW) | |
| Kensington Lock | Yes | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az | |
| SSIDs Supported | Local-Bridge, Tunnel, and Mesh | |
| Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) | |
| Cellular Co-existence | Yes | |
| LED Off Mode | Yes | |
| Advanced 802.11 Features | ||
| OFDMA | Yes (UL and DL) | |
| Spatial Reuse (BSS Coloring) | Yes | |
| UL MU-MIMO | Yes | |
| DL-MU-MIMO | Yes | |
| Enhanced Target Wake Time (TWT) | Yes | |
| ZeroWait DFS | No | |
| Wireless Monitoring Capabilities | ||
| Rogue Scan radio modes | Background, Dedicated | |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | |
| Spectrum Analyzer | Yes | |
| Dimensions | ||
| Length x Width x Height | 9.84 x 9.84 x 2.26 inches (250 x 250 x 57.5 mm) | |
| Weight | 4.36 lbs (1.98 kg) | |
| Package (shipping) Weight | 6.9 lbs (3.13 kg) | |
| Mounting Options | Ceiling, T-Rail, and Wall | |
| Included Accessories | Standard Mounting Kit for Ceiling, T-Rail, and Wall | |
| Environment | ||
| Power Supply | GPI-145 or SP-FAP250-PA-10 | |
| Power Consumption (Maximum) | 41.7 W | |
| PoE Mode | 802.3at : R1(2.4Ghz) and R2(5 GHz) operation in Low Tx Power 17dBm ; Chain 4x4; USB – Disabled 802.3bt / DC : Full – Tx Power Full ; Chain 4x4; USBEnabled | |
| Humidity | 5% - 90% non condensing | |
| Operating / Storage Temperature | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | Yes | |
| Mean Time Between Failures | > 10 Years | |
| IP Rating | N/A | |
| Surge Protection Built In | Yes | |
| Hit-less PoE Failover | N/A | |
| Certifications | ||
| WiFi Alliance Certified | Certified (Wi-Fi 7 in progress) | |
| DFS | No | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | |
