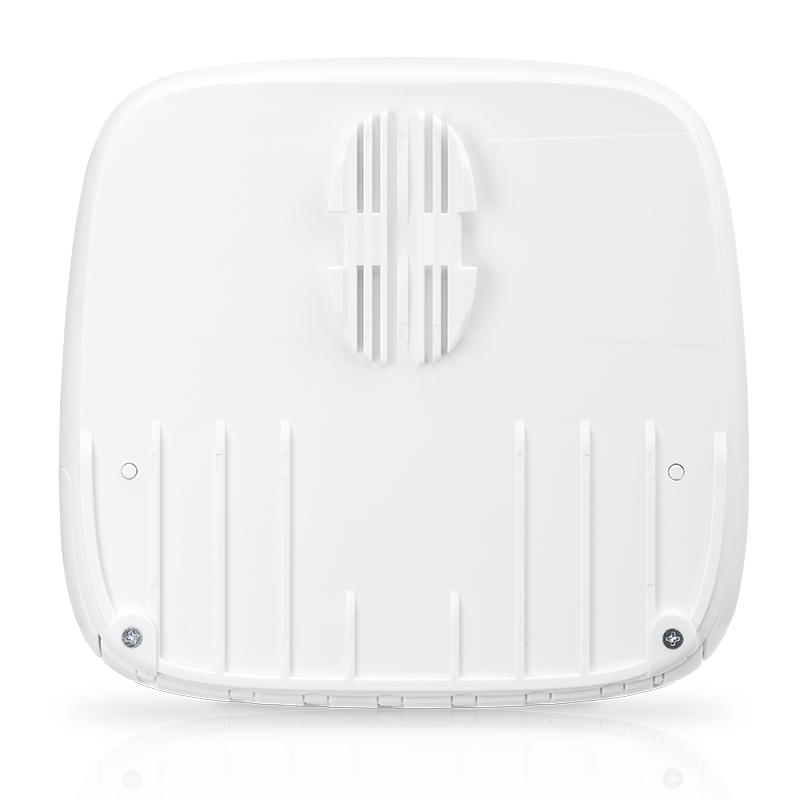

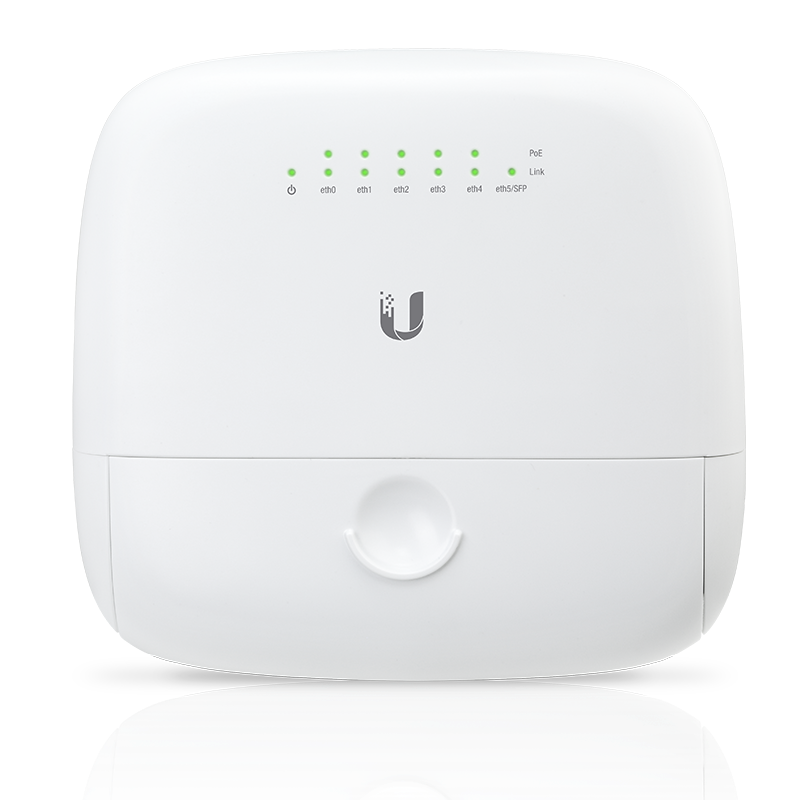

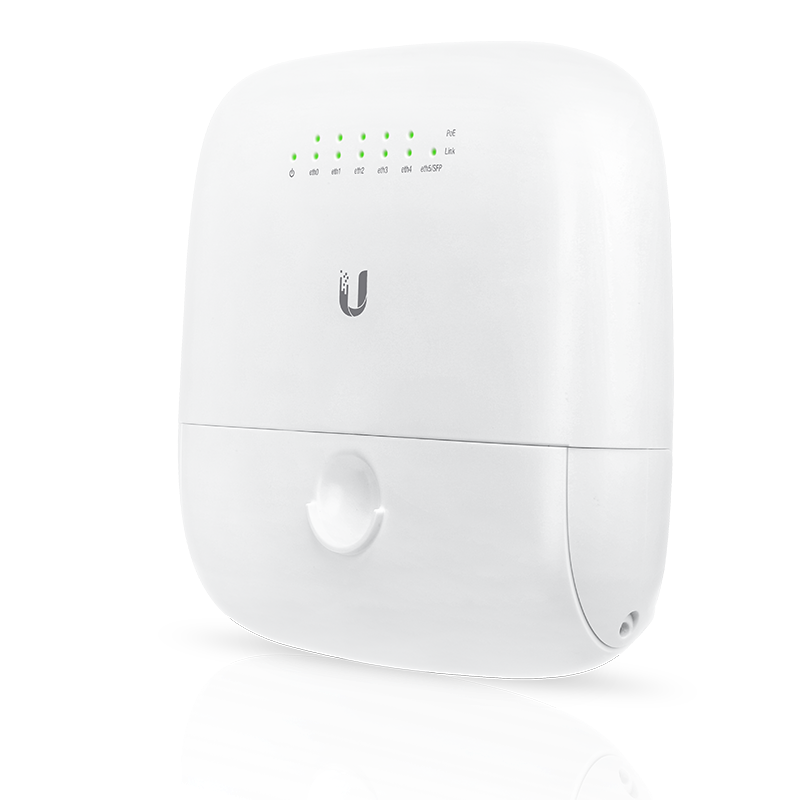

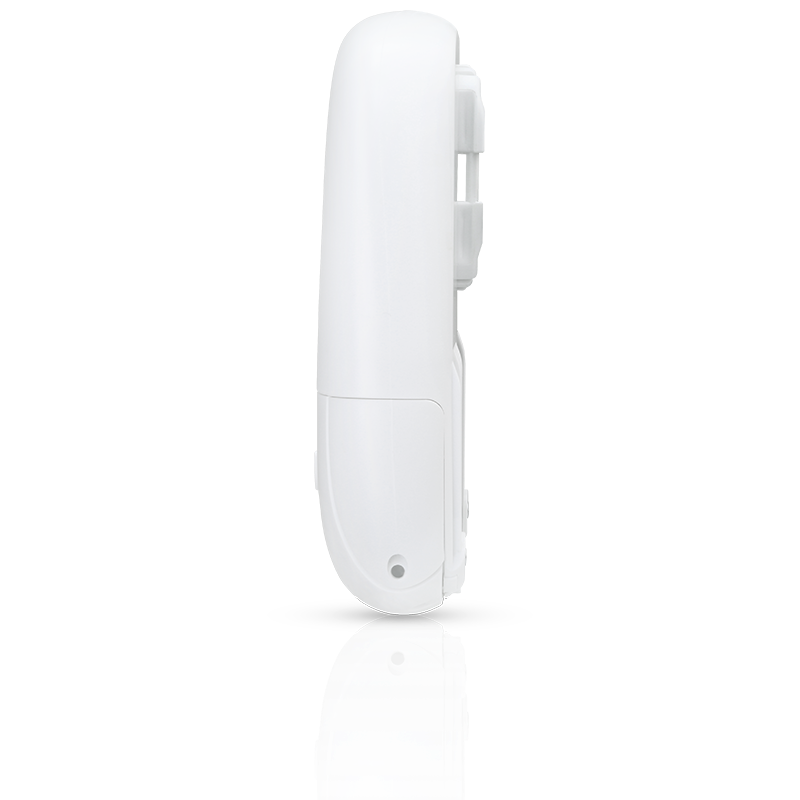

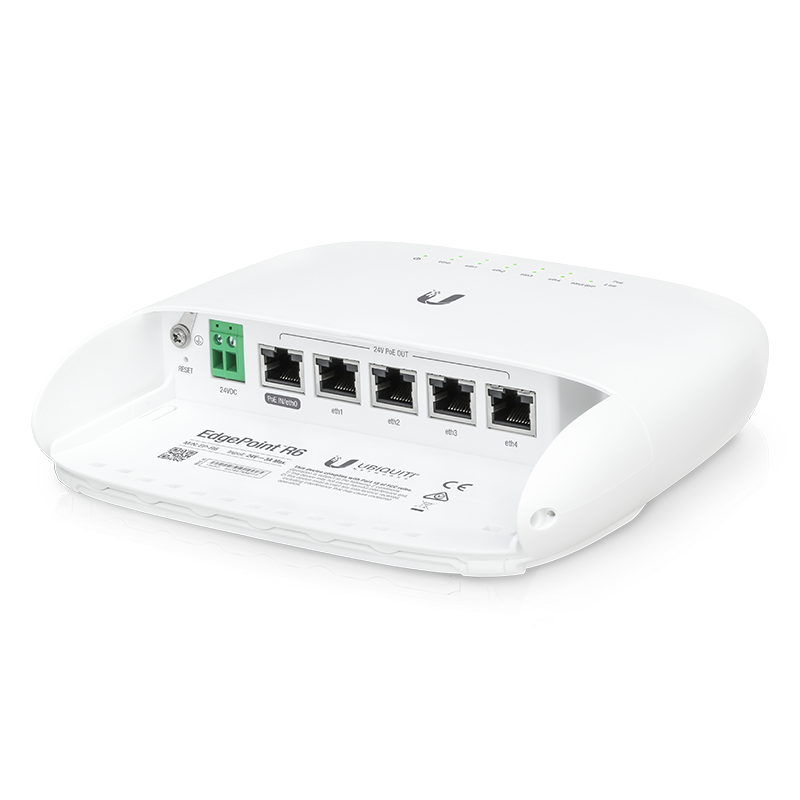

EdgePoint R6 (EP-R6) - Router ngoài trời 6 cổng, tích hợp SFP & PoE

EdgePoint R6 (EP-R6):
✔ Router ngoài trời với 5 cổng RJ45 Gigabit1 cổng SFP 1 Gbps.
✔ CPU Dual-core 880 MHz, RAM 256 MB DDR3, Flash 256 MB NAND.
✔ Hỗ trợ Passive PoE input5 cổng Passive PoE output 24V.
✔ Vỏ polycarbonate chống tia UV, lắp đặt trên cột, chịu gió đến 200 km/h.
✔ Nhiệt độ hoạt động rộng -40 đến 65 °C, độ ẩm 10–90% RH.
✔ Công suất tiêu thụ thấp, tối đa 7W (không tính PoE output).
✔ Đạt chứng nhận CE, FCC, IC, tuân thủ NDAA.

SKU: EP-R6
Danh mục: Ubiquiti Unifi
Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật

Mechanical
Dimensions188.6 x 177.1 x 49.8 mm (7.4 x 7 x 2")
Weight605 g (1.3 lb)
Enclosure materialUV-resistant polycarbonate
MountPole mount
Wind loading46 N at 200 km/h (10.34 lbf at 125 mph)
Wind survivability200 km/h (125 mph)
Hardware
ProcessorDual-core 880 MHz, MIPS1004Kc
System memory256 MB DDR3-1600 RAM
Code storage256 MB NAND
Networking interface

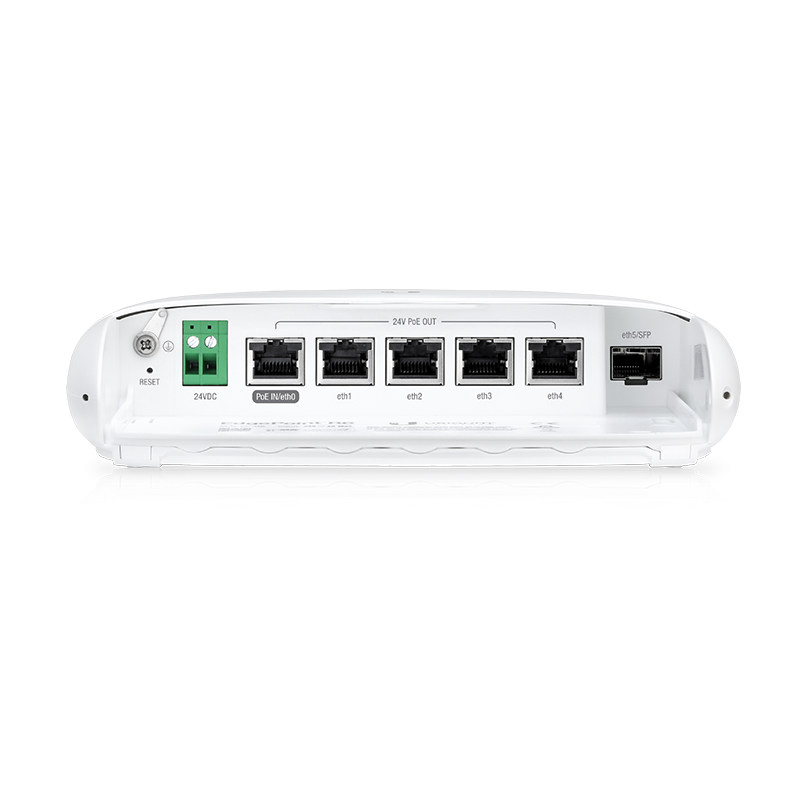

(5) 10/100/1000 RJ45 ports
(1) 1 Gbps SFP port
Power method*(1) DC terminal block
24V DC, 3A input
Passive PoE:** (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE
*Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs.
**Do NOT configure eth0 in PoE output mode if you are using a PoE input power source.
Power supplyMin. 24V / 0.3A (Excludes PoE output)
Passive PoE output(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
Power monitoring(1) DC terminal block, input power
(1) RJ45, eth0, input power
Supported voltage range16–26V DC
Max. power consumption7W (Excludes PoE output)
ButtonFactory reset
LEDsSystem: power
Data ports: speed/link/activity, PoE
SFP port: speed/link/activity
Ambient operating temperature-40 to 65° C (-40 to 149° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
NDAA CompliantYes
