Thiết bị tường lủa Fortigate FG-200F-BDL-950-12 (kèm license 1 năm)

Mã sản phẩm : FG-200F-BDL-950-12

Giá bán : Liên hệ

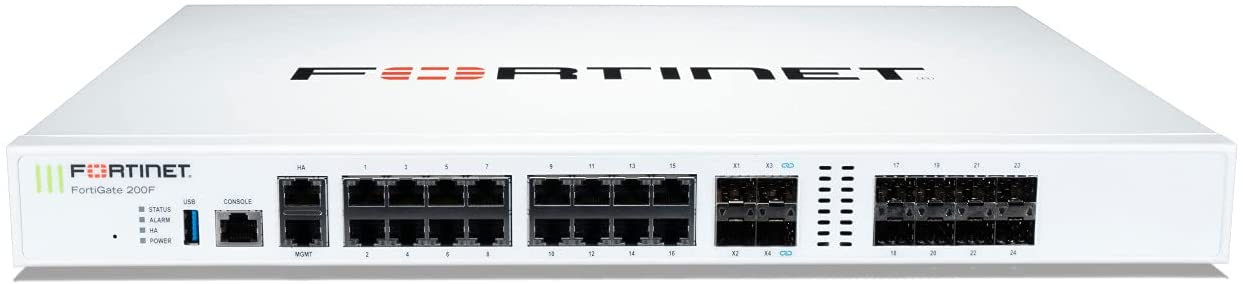

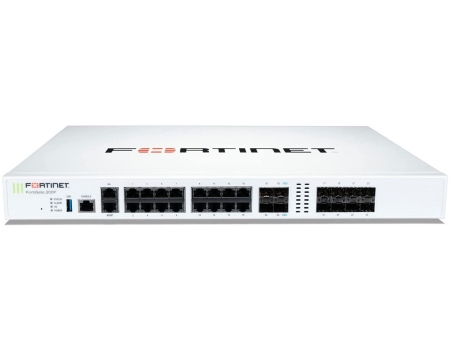

Thiết bị tường lửa chống Virus & thâm nhập FortiGate FG-200F Bundle Security Appliance

18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated.

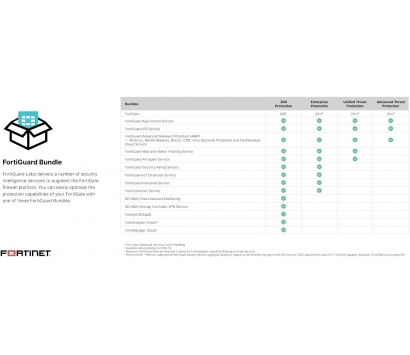

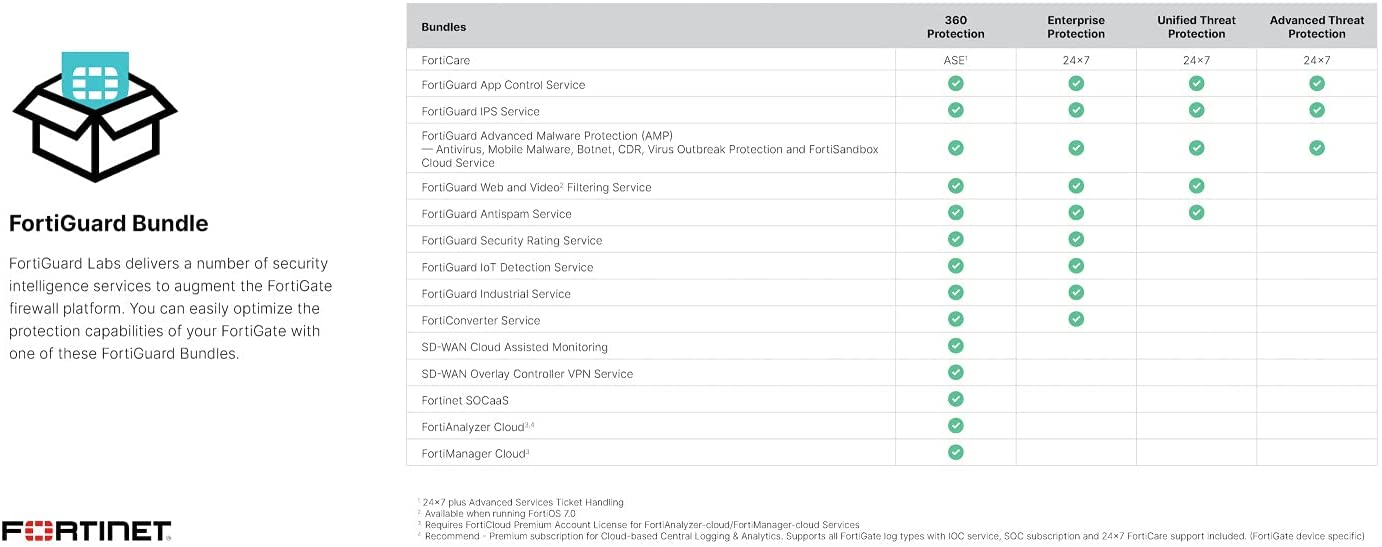

Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24x7 FortiCare)

Model:	FG-200F-BDL-950-12

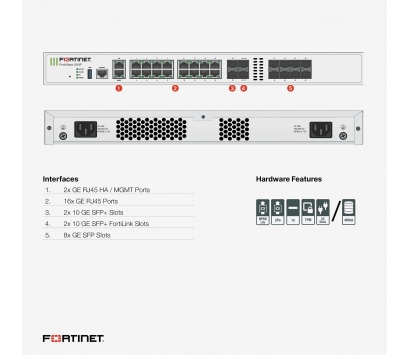

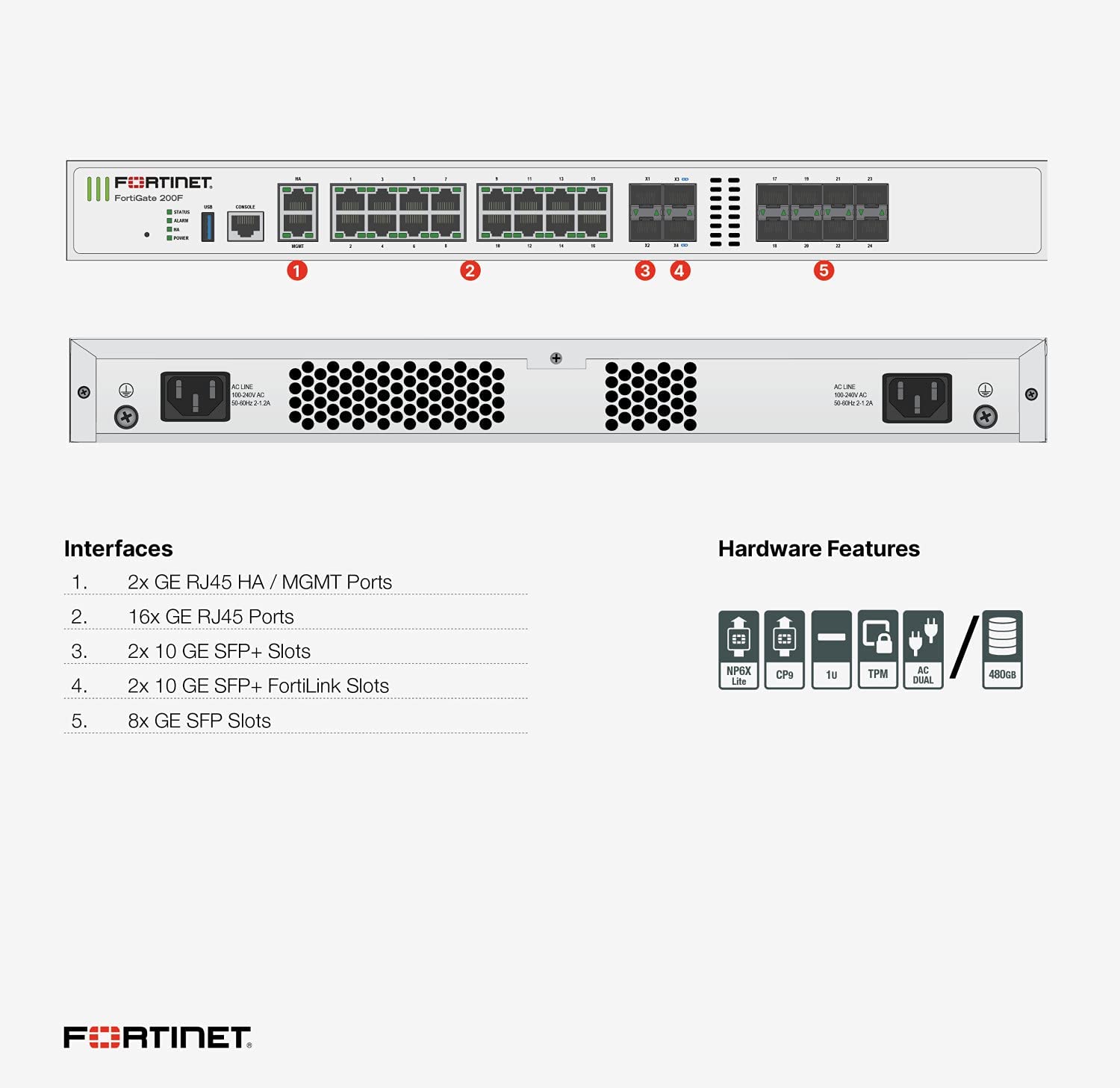

Hardware Specifications
GE RJ45 Ports	16
GE RJ45 Management/HA	1 / 1
GE SFP Slots	8
10GE SFP+ FortiLink Slots (default)	2
10GE SFP+ Slots	2
USB Port	1
Console Port	1
Internal Storage	-
Included Transceivers	0

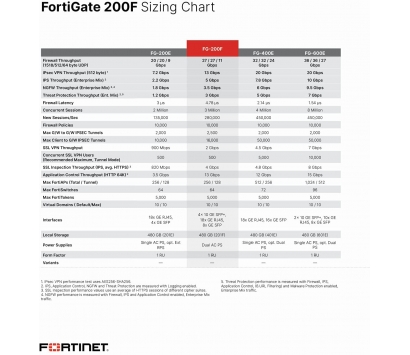

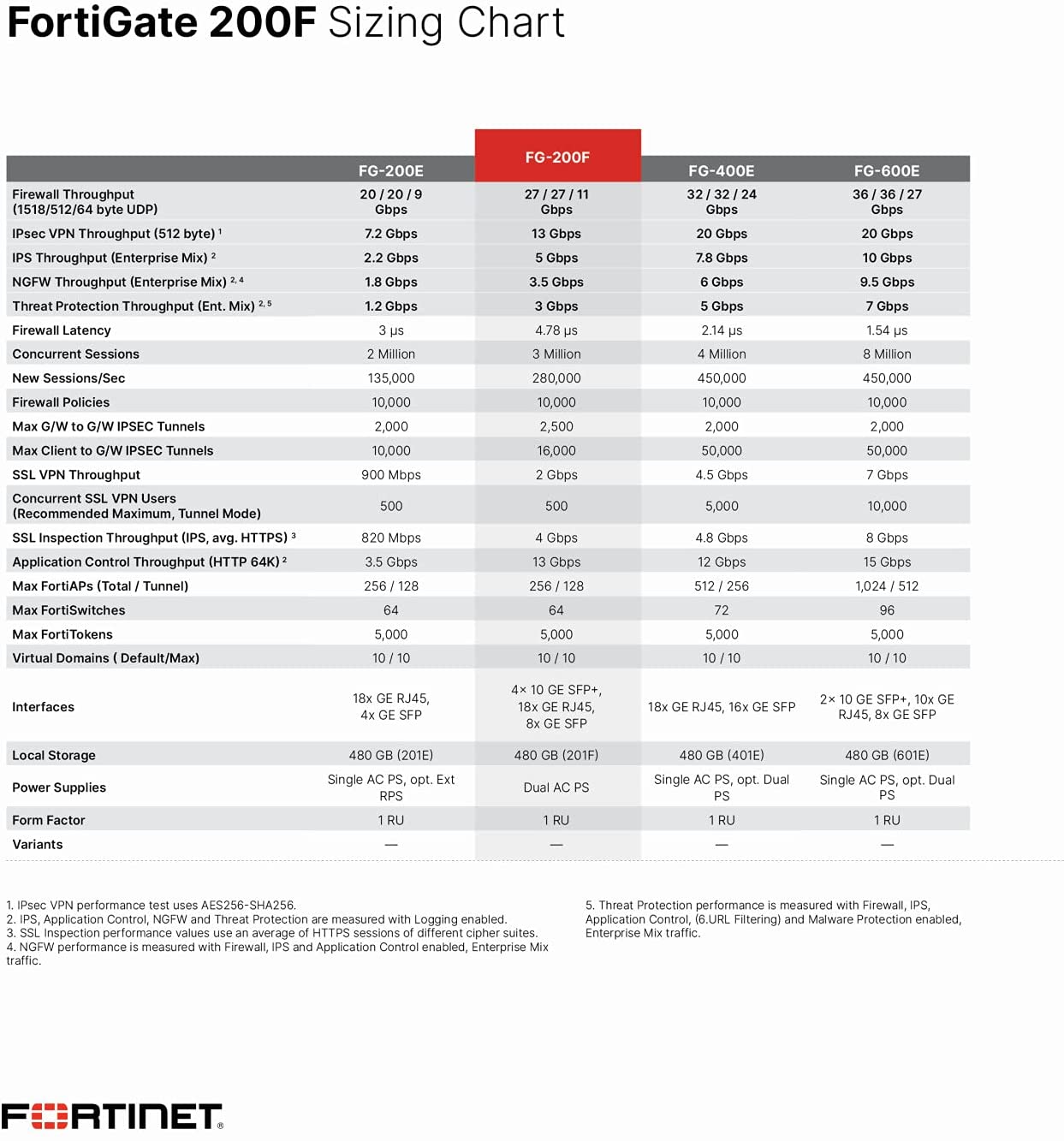

System Performance — Enterprise Traffic Mix
IPS Throughput	5 Gbps
NGFW Throughput	3.5 Gbps
Threat Protection Throughput	3 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	27 / 27 / 11 Gbps
Firewall Latency (64 byte UDP packets)	4.78 μs
Firewall Throughput (Packets Per Second)	16.5 Mpps
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	280,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	13 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	13 Gbps
CAPWAP Throughput (HTTP 64K)	20 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel Mode)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17.01 x 13.47
Height x Width x Length (mm)	44 x 432 x 342
Form Factor (supports EIA / non-EIA standards)	Ear Mount, 1 RU
Weight	9.92 lbs (4.5 kg)
Environment

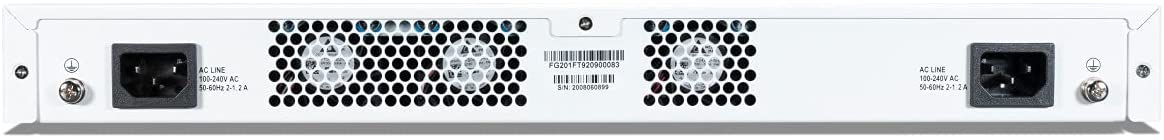

Power Required	100–240V AC, 50-60 Hz
Maximum Current	100V / 2A, 240V / 1.2A
Power Consumption (Average / Maximum)	101.92 W / 118.90 W
Heat Dissipation	405.70 BTU/h
Redundant Power Supplies	✔
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	20–90% non-condensing
Noise Level	49.9 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, IPv6
