Tường Lửa SonicWall TZ480 Gen 8 | Hiệu Năng Vượt Trội & Cổng 5G SFP+

Tường Lửa SonicWall TZ480 Gen 8 | Hiệu Năng Vượt Trội & Cổng 5G SFP+

Name: Tường Lửa SonicWall TZ480 Gen 8 | Hiệu Năng Vượt Trội & Cổng 5G SFP+
Brand: N/a
SKU: 03-SSC-1835
Availability: InStock
Rating: 0 (0 reviews)

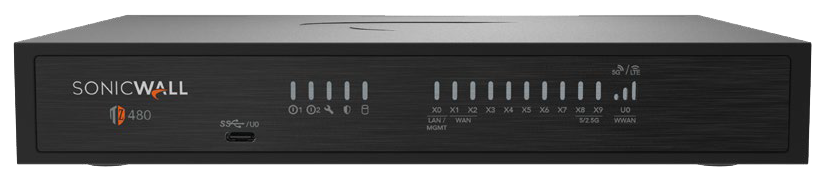

SonicWall TZ480 là tường lửa thế hệ mới (NGFW) thuộc dòng Gen 8, mang đến một bước nhảy vọt về hiệu năng xử lý bảo mật. Đây là lựa chọn lý tưởng cho các doanh nghiệp vừa và chi nhánh có yêu cầu cao về băng thông và khả năng chịu tải kết nối.

✅ Cung cấp Firewall inspection throughput 4 Gbps và Threat prevention throughput 2 Gbps.
✅ Khả năng giải mã và quét lưu lượng mã hóa (DPI SSL) đạt 650 Mbps.
✅ Trang bị 8 cổng 1GbE và 2 cổng quang 5G/2.5G/1G SFP+.
✅ Hỗ trợ 1,200,000 Maximum connections (SPI) và tạo mới 18,000 connections/sec.
✅ Hỗ trợ các tính năng mạng nâng cao như SD-WAN và định tuyến động (OSPF, RIP, BGP).
✅ Quản lý linh hoạt qua giao diện web, CLI hoặc quản lý tập trung trên cloud với Network Security Manager.

SKU: 03-SSC-1835

Danh mục: SonicWALL

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Gói Dịch Vụ & Thời Hạn	SKU (Mã Sản Phẩm)
TZ480 Series
SonicWall TZ480 - Gen 8 Firewall Appliance (Appliance Only, No Subscription)	#03-SSC-1835
SonicWall TZ480 3 & Free with CSE Promotion
SonicWall TZ480 Secure Upgrade Plus - Advanced Edition 3 Years (Includes 1 Year CSE)	#03-SSC-6986
Secure Upgrade Plus
SonicWall TZ480 Secure Upgrade Plus Advanced Edition 2 Years	#03-SSC-6980
SonicWall TZ480 Appliance + Subscription + Support Bundle
SonicWall TZ480 TotalSecure Advanced Edition 1 Year	#03-SSC-6973

SonicWall TZ Series (Gen 8) Specifications

Firewall General	TZ280 SERIES	TZ380 SERIES	TZ480 SERIES	TZ580 SERIES	TZ680 SERIES
Operating system	SonicOS 8
Interfaces	8 * 1GbE Cu, 2*1G SFP, 1 console (Micro-USB), 1 USB (type-C)	8 * 1GbE Cu, 2*5G/2.5G/1G SFP+, 1 console (Micro-USB), 1 USB (type-C)	8 * 1GbE Cu, 2*5G/2.5G/1G SFP+, 1 console (MicroUSB), 1 USB (type-C)	8 * 1GbE Cu, 2*5G/2.5G/1G SFP+, 1 console (Micro-USB), 1 USB (type-C)	8 * 1GbE Cu, 2*10G SFP, 1 console (Micro-USB), 1 USB (type-C)
Wireless support	N/A	2x2 802.11ax (TZ380W)	N/A	N/A	N/A
Storage /(expansion)	(Optional: Up to 512 Gb)	(Optional: Up to 512 Gb)	(Optional: Up to 512 Gb)	(Optional: Up to 512 Gb)	(Optional: Up to 512 Gb)
Centralized Management	Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum)	64	128	128	256	256
SAML Single Sign-On (SSO) Users¹	1000	1000	2500	2500	2500
Access points supported (maximum)	16	16	32	32	32
Firewall/VPN Performance
Firewall inspection throughput²	2.5 Gbps	3.5 Gbps	4 Gbps	4.5 Gbps	5 Gbps
Threat prevention throughput³	1 Gbps	1.5 Gbps	2 Gbps	2.2 Gbps	2.5 Gbps
Application inspection throughput³	1.5 Gbps	2.0 Gbps	2.2 Gbps	2.5 Gbps	3 Gbps
IPS throughput³	1.5 Gbps	2.0 Gbps	2.2 Gbps	2.5 Gbps	3 Gbps
Anti-malware inspection throughput³	1 Gbps	2.0 Gbps	2 Gbps	2.2 Gbps	2.5 Gbps
TLS/SSL inspection and decryption throughput³	430 Mbps	600 Mbps	650 Mbps	750 Mbps	800 Mbps
IPSec VPN throughput⁴	1.2 Gbps	1.6 Gbps	2 Gbps	2.2 Gbps	2.5 Gbps
Connections per second	12,000	15,000	18,000	20,000	26,000
Maximum connections (SPI)	1,000,000	1,100,000	1,200,000	1,400,000	1,600,000
Maximum connections (DPI)	200,000	250,000	350,000	500,000	600,000
Maximum connections (TLS)	35,000	40,000	50,000	60,000	75,000
VPN and ZTNA
Site-to-site VPN tunnels	200	200	200	250	250
IPSec VPN clients (maximum)	5 (200)	5 (200)	5 (200)	10 (500)	10 (500)
SSL VPN licenses (maximum)	1 (50)	2 (100)	2 (150)	2 (200)	2 (250)
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows 10 and Windows 11
NetExtender	Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™
SonicWall Private Access powered by Cloud Secure Edge5	Included in 3&Free Loyalty Program
Security Services
Deep Packet Inspection services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS)	Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Yes
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
Advanced DNS Filtering	Yes
Networking
IP address assignment	Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols⁴	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
Local user database	1000
VoIP	Full H3230v1.5 SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	IPv6
High availability	Active/Standby with stateful synchronization
Hardware
Form factor	Desktop⁴
Power supply	12V/1.03A	12V/1.14A (TZ380) 12V/1.45A (TZ380W)	12V/1.13A	12V/1.34A	12V/1.34A
Maximum power consumption (W)	12.36	13.77 (TZ380) 17.4 (TZ380W)	13.77	15.6	16.99
Input power	100-240 VAC, 50-60Hz, 0.27A	100-240 VAC, 50-60Hz, 0.27A	100-240 VAC, 50-60Hz, 0.27A	100-240 VAC, 50-60Hz, 0.29A	100-240 VAC, 50-60Hz, 0.27A
Redundant power supply	1 (Optional)	1 (Optional)	1 (Optional)	1 (Optional)	1 (Optional)
Total heat dissipation (BTU)	42.43	46.95 (TZ380) 59.33 (TZ380W)	42.43	56.74	57.93
Dimensions (Unit: cm)	3.5x13x19 Shipping: 7.2x22.8x23	3.5x13x19 Shipping: 7.2x22.8x23	3.5x13x19 Shipping: 7.2x22.8x23	3.5x13x19 Shipping: 7.2x22.8x23	3.5x13x19 Shipping: 7.2x22.8x23
Weight	0.82 Kg	0.82 Kg (TZ380) 0.85 Kg (TZ380W)	0.82 Kg	0.97 Kg	0.97 Kg
WEEE weight	1.18 Kg	1.18 Kg (TZ380) 1.24 Kg (TZ380W)	1.18 Kg	1.42 Kg	1.42 Kg
Shipping weight	1.41 Kg	1.41 Kg (TZ380) 1.47 Kg (TZ380W)	1.41 Kg	1.93 Kg	1.93 Kg
MTBF @25oC in years	51.7	46.4 (TZ380) 24.9 (TZ380W)	52.8	30.7	29.9
Environment (Operating/Storage)	0°C to +40°C / -40°C to +70°C
Humidity	5-95% non-condensing
Regulatory
Regulatory model numbers	APL70-11D	APL72-120 (TZ380) APL72-121 (TZ380W)	APL72-120	APL72-120	APL72-120
Major regulatory compliance	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Major regulatory compliance (wireless models)	N/A	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB	N/A	N/A	N/A
Major regulatory compliance (PoE models)	N/A	N/A	N/A	N/A	N/A
Integrated Wireless (TZ380W ONLY)
Standards	802.11a/b/g/n/ac/ax WPA,WPA2, WPA3, 802.11i, EAP-PEAP, EAP-TTLS
Frequency bands	802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz
Operating channels	802.11a: US and Canada 12, Europe 11, Japan 4, Singapore4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64; 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit output power	Based on the regulatory domain specified by the system administrator
Transmit power control	Yes
Data rates supported	802.11a: 6,9,12,18,24,36,48,54 Mbps per channel; 802.11b: 1,2,5.5,11 Mbps per channel ; 802.11g: 6,9,12,18,24,36,48,54 Mbps per channel; 802.11n: 15,30,45,60,90,120,135,150,30,60,90,120,180,240,270, 300Mbps per channel; 802.11ac: 32.5,65,97.5,130,195,260,292.5,325,390,433.3,65,130,195,260,390,520, 585,650,780,866.6Mbps per channel; 802.11ax: 36,72,106,144,216,288,324,360,432,480,540,600,72,144, 216,288,432,576,648,720,864,960,1201 Mbps per channel
Modulation technology spectrum	802.11a: Orthogonal Frequency Division Multiplexing (OFDM)/64QAM; 802.11b:Direct Sequence Spread Spectrum (DSSS); 802.11g:Orthogonal Frequency Division Multiplexing (OFDM)/64QAM/Direct Sequence Spread Spectrum (DSSS); 802.11n:Orthogonal Frequency Division Multiplexing (OFDM)/64QAM; 802.11AC:Orthogonal Frequency Division Multiplexing (OFDM)/256QAM; 802.11ax: Orthogonal Frequency Division Multiplexing Access(OFDMA)/1024QAM

Note:
¹ SAML Single Sign-On is available with the upcoming SonicOS 8.1, releasing soon
² Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.
³ Threat Prevention/Gateway AV/Anti-Spyware/IPS throughput measured using industry standard Keysight HTTP performance test tools. Testing throughput measured with Gateway AV, Anti-Spyware, IPS and Application Control enabled
⁴ VPN throughput measured with UDP traffic using 1418 byte packet size AESGMAC16-256 Encryption adhering to RFC 2544. All specifications, features, and availabilities are subject to change.
⁵ Included with 3-year bundle
