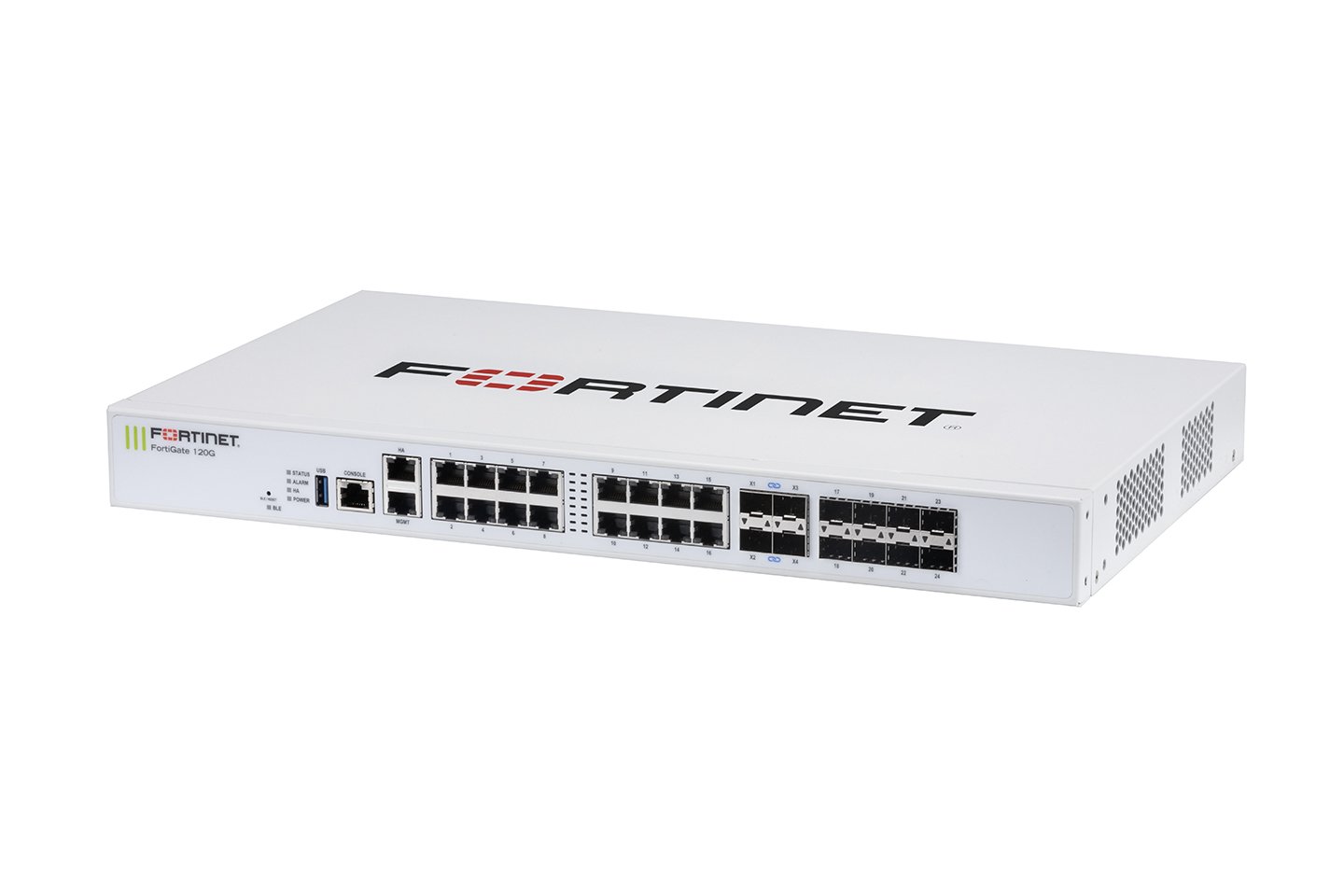

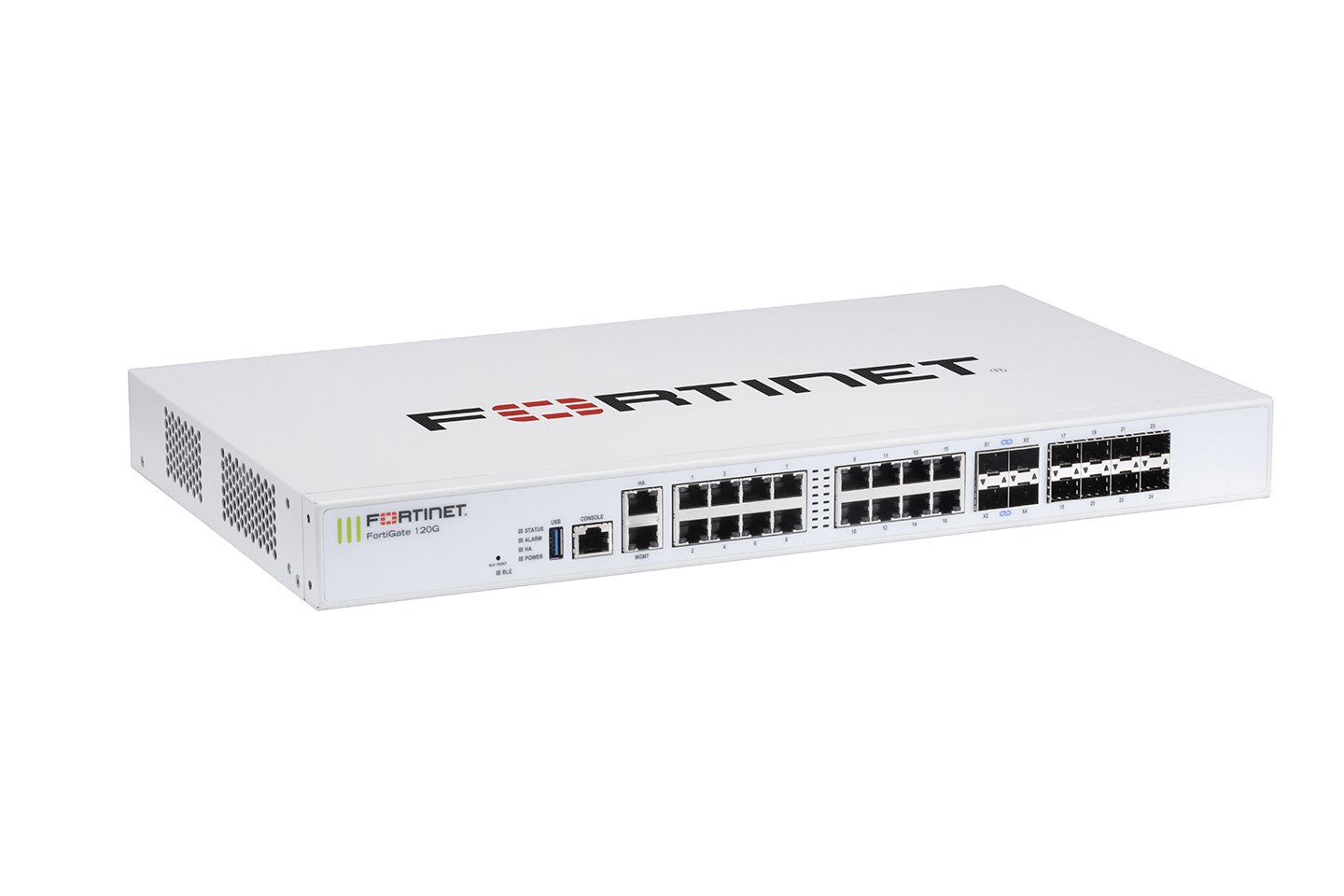

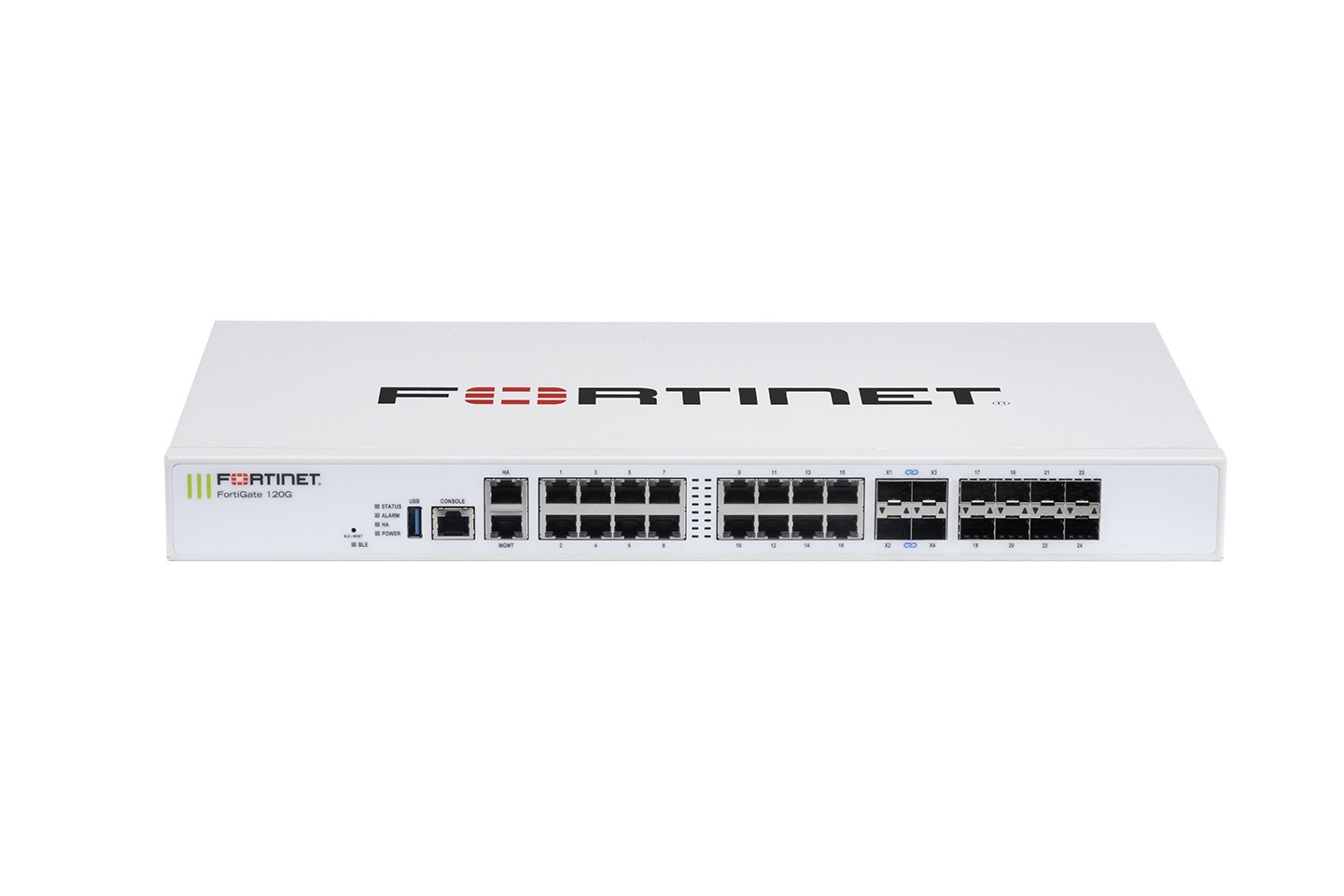

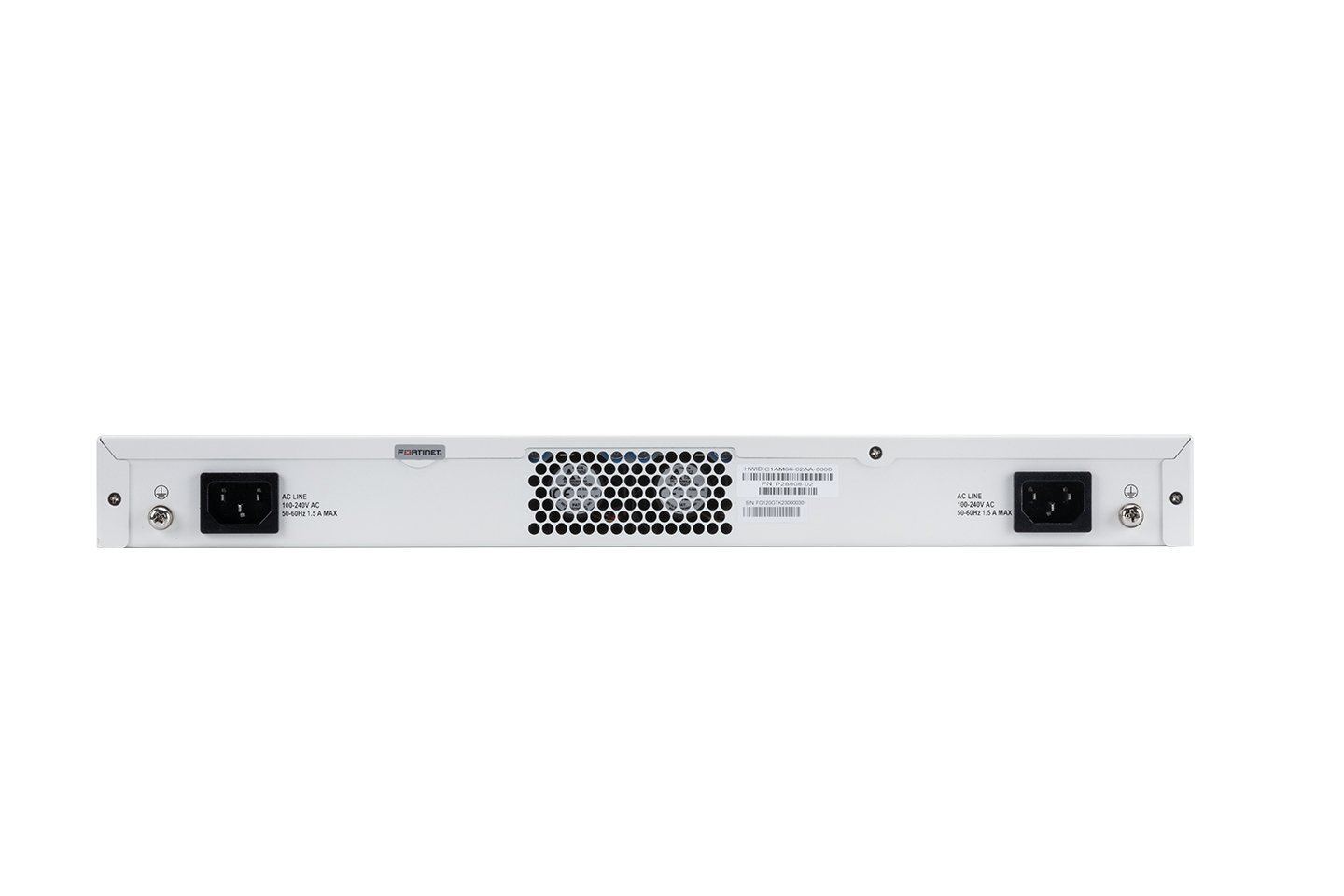

Thiết Bị Tường Lửa FortiNet FortiGate FG-120G-BDL-950-12

Thiết Bị Tường Lửa FortiNet FortiGate FG-120G-BDL-950-12

Name: Thiết Bị Tường Lửa FortiNet FortiGate FG-120G-BDL-950-12
Brand: N/a
SKU: FG-120G-BDL-950-12
Availability: InStock
Rating: 0 (0 reviews)

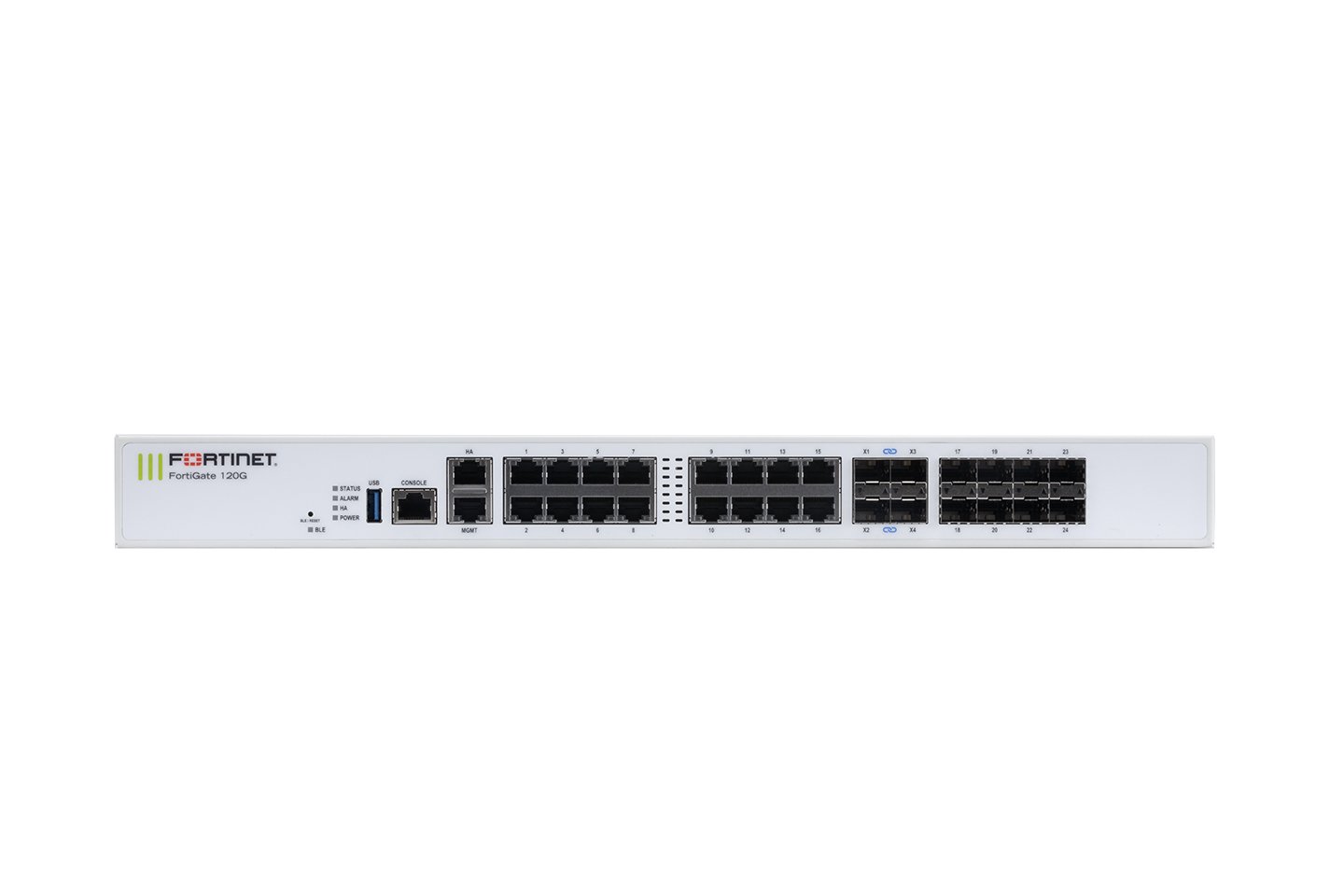

Thiết bị tường lửa Fortinet FortiGate FortiGate-120G-BDL-950-12

18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SP5 hardware accelerated, dual AC power supplies

SKU: FG-120G-BDL-950-12

Danh mục: Fortigate Fortinet

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật

	FortiGate 120G	FortiGate 121G
Hardware Specifications
Hardware Accelerated GE RJ45 Ports	16	16
Hardware Accelerated GE RJ45 Management / HA Ports	2	2
Hardware Accelerated GE SFP Slots	8	8
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)	4	4
USB Ports	1	1
Console (RJ45)	1	1
Internal Storage	-	1 x 480 GB SSD
Trusted Platform Module (TPM)	Yes	Yes
Bluetooth Low Energy (BLE)	Yes	Yes
System Performance* — Enterprise Traffic Mix
IPS Throughput	5.3 Gbps
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	39 / 39 / 28 Gbps
Firewall Latency (64 byte UDP packets)	3.17 μs
Firewall Throughput (Packets Per Second)	42 Mpps
Concurrent Sessions (TCP)	3 M
New Sessions/Second (TCP)	140 000
Firewall Policies	10 000
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16 000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS)	3 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	2100
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	315 000
Application Control Throughput (HTTP 64K)	6.7 Gbps
CAPWAP Throughput (HTTP 64K)	35 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	32
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	5000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Weight	12.17 lbs (5.52 kg)
Form Factor	Rack Mount, 1RU
Operating Environment and Certifications
Input Rating	100-120VAC, 1A-.5A Max, 50-60Hz
Redundant Power Supplies	Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)
Power Supply Efficiency Rating	N/A
Maximum Current	100VAC@1A, 120V@0.5A
Power Consumption (Average / Maximum)	38 W / 40 W	43 W / 47 W
Heat Dissipation	138 BTU/hr	159 BTU/h
Operating Temperature	32°–104°F (0°–40°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	20%–90% noncondensing	10–90% non-condensing
Noise Level	49 dBA
Air Flow	Side to back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	USGv6/IPv6
