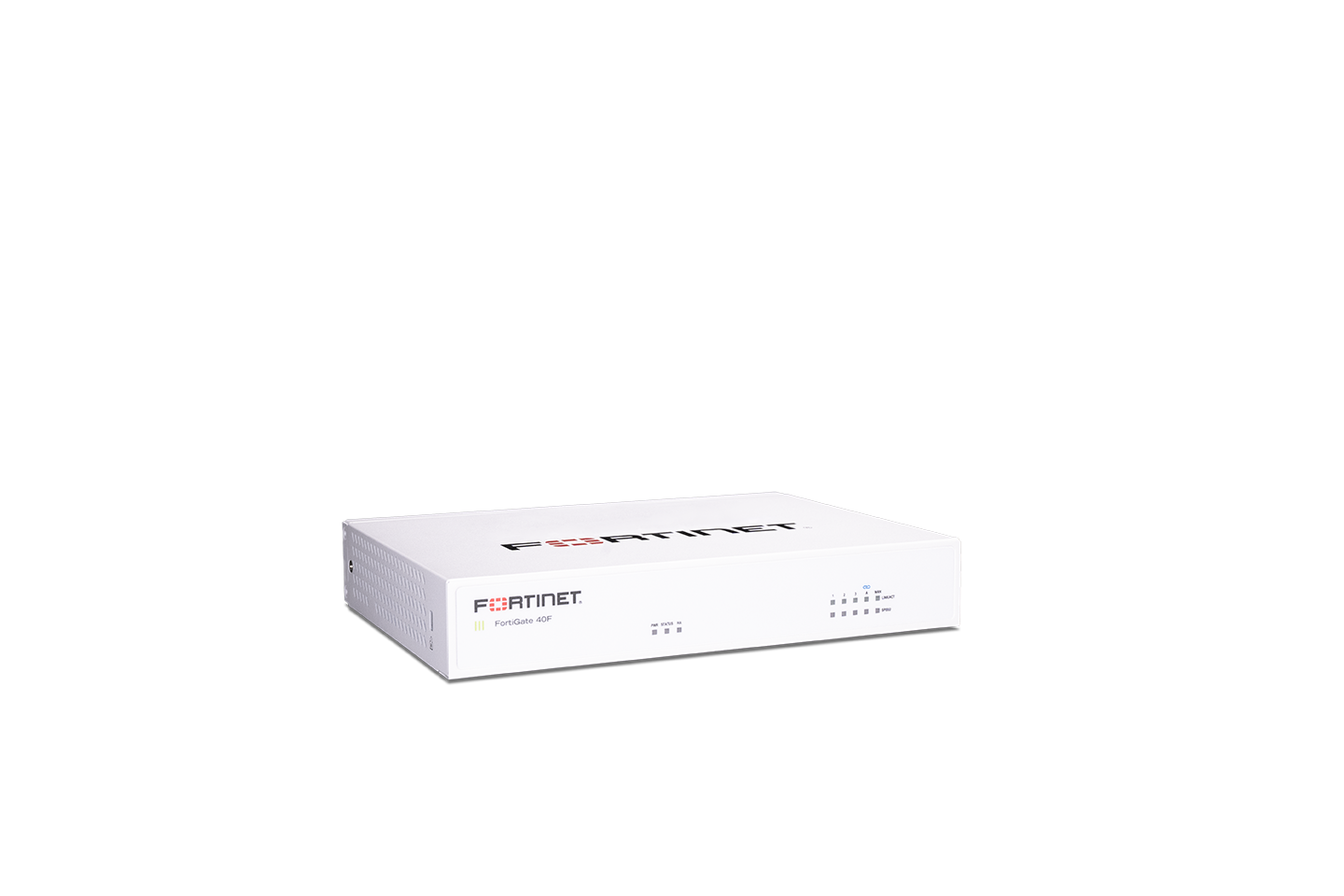

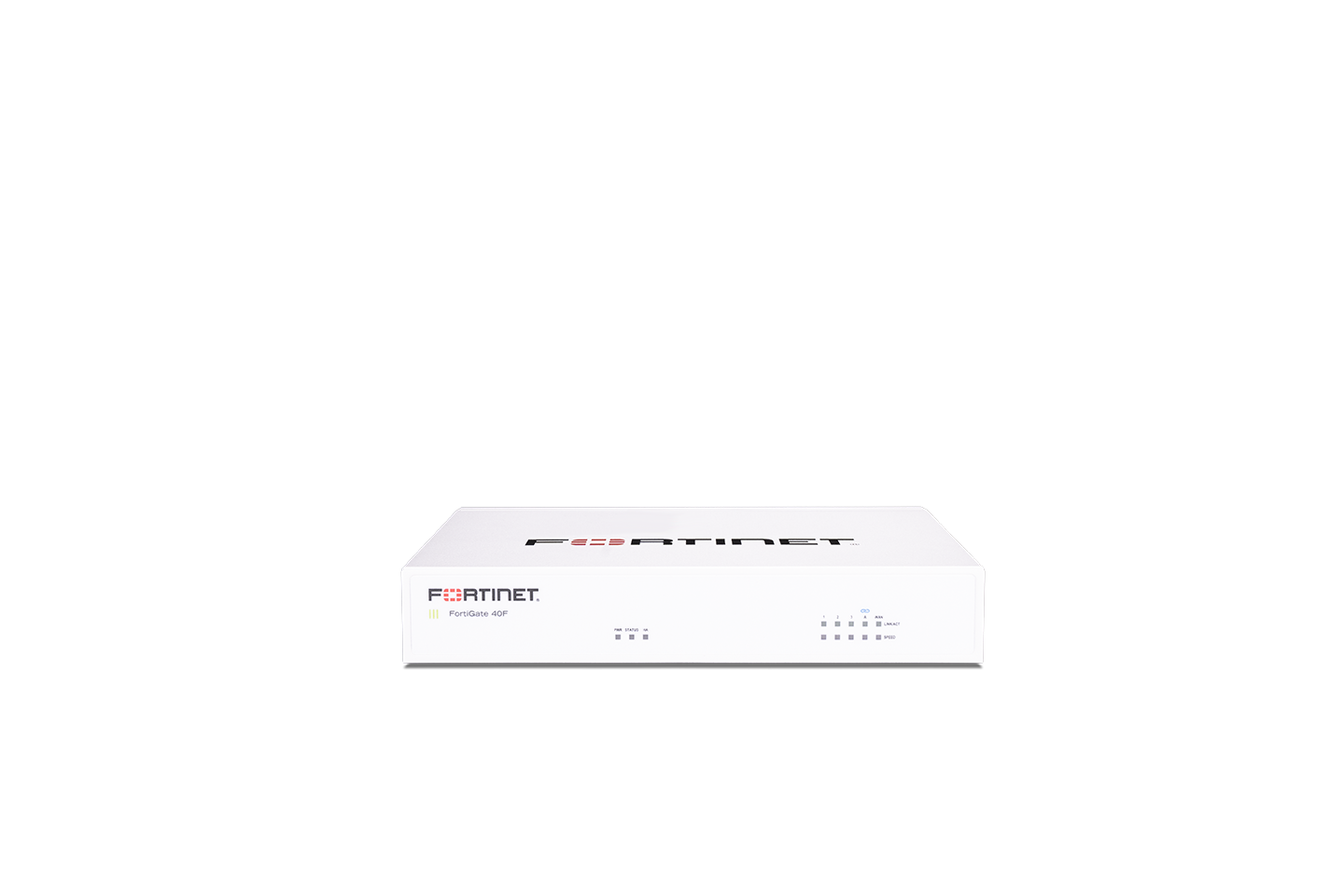

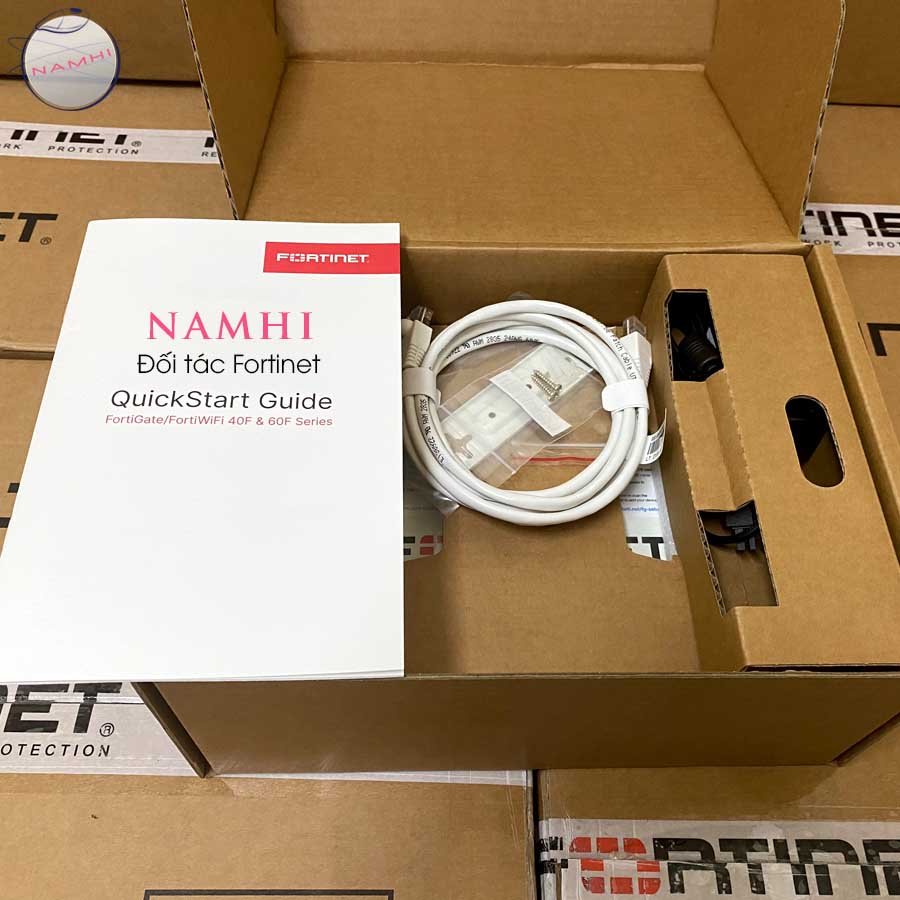

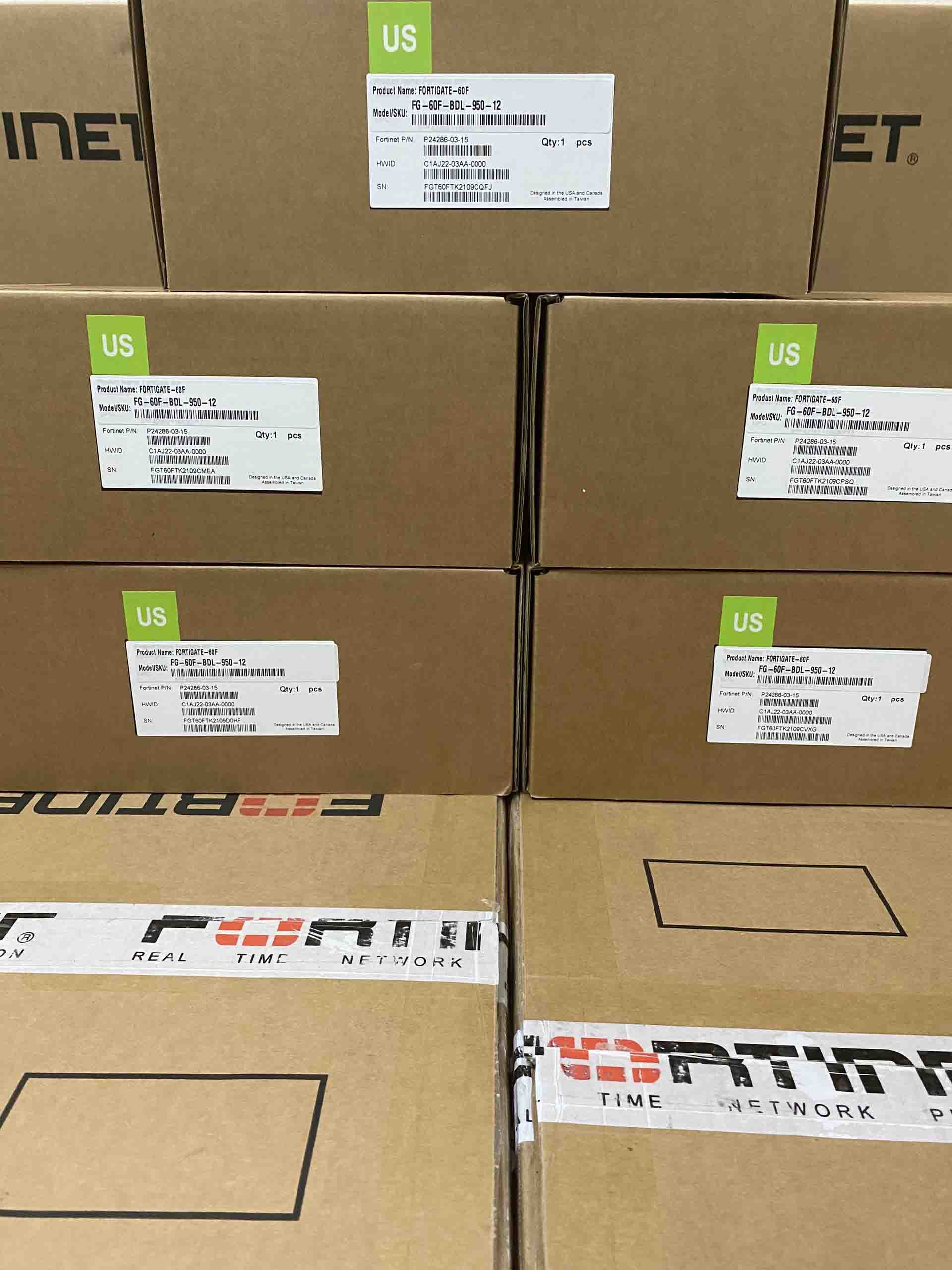

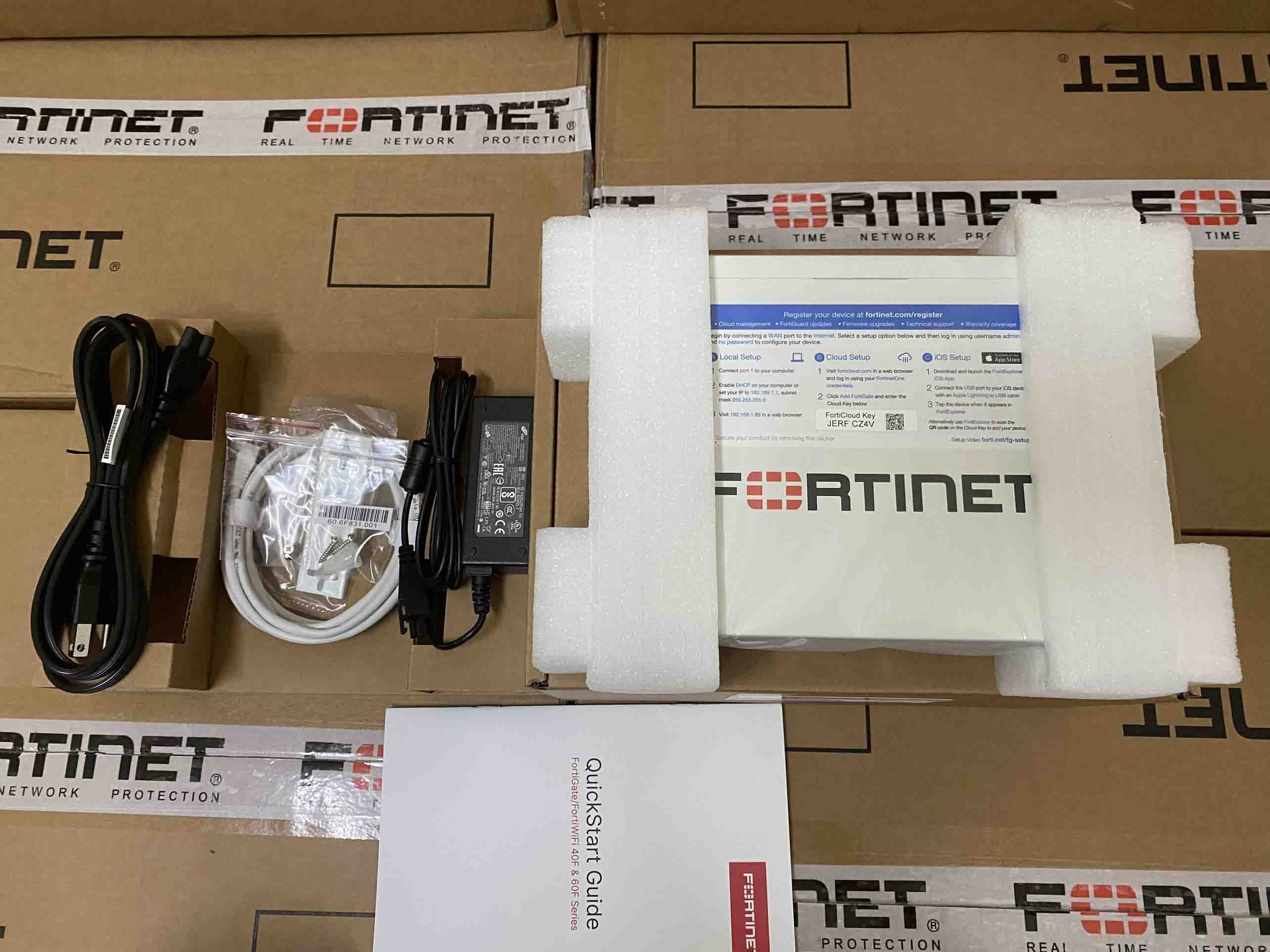

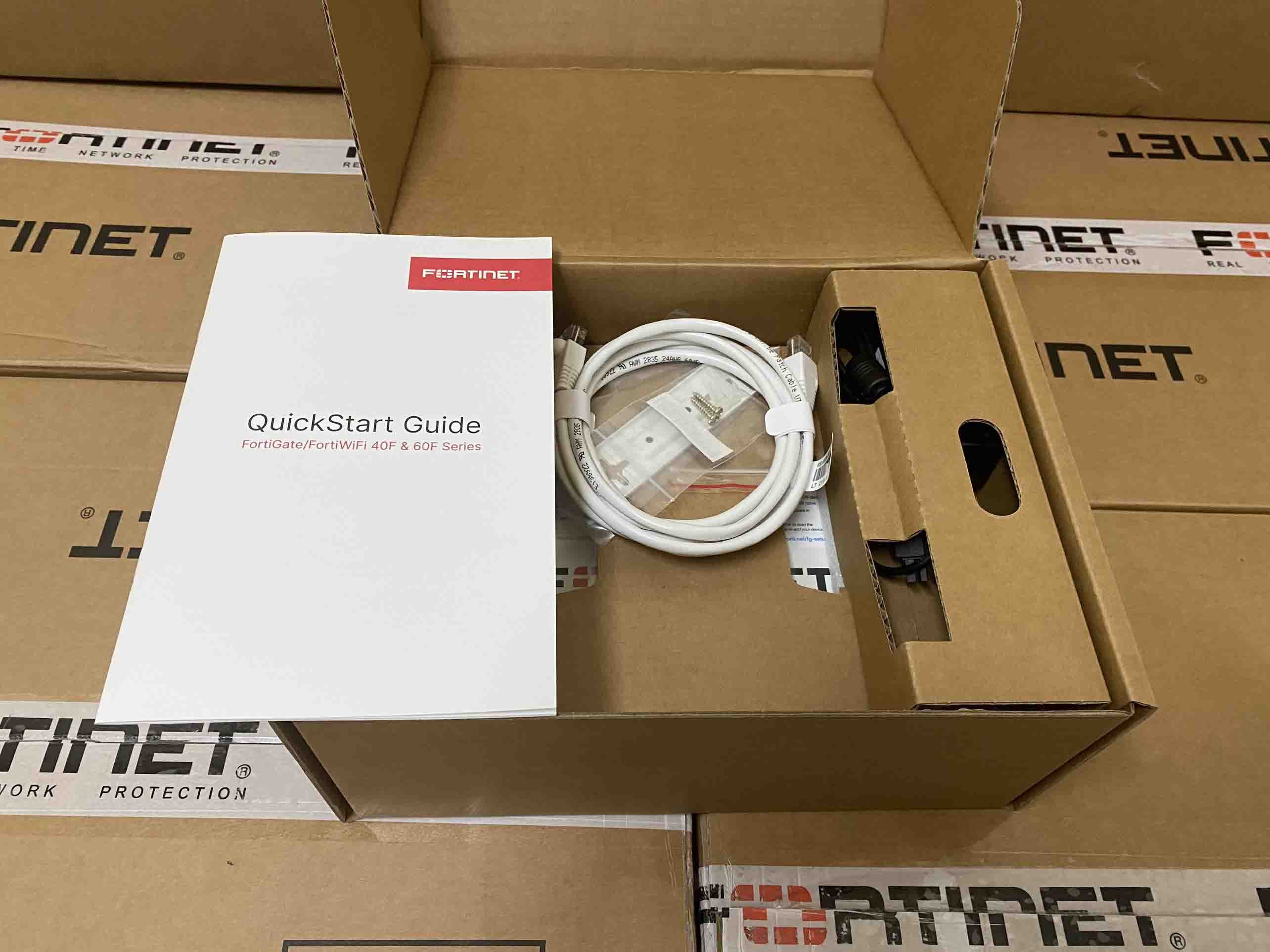

Thiết bị tường lửa Fortigate FG-40F hardware basic

Thiết bị tường lửa Fortigate FG-40F hardware basic

Name: Thiết bị tường lửa Fortigate FG-40F hardware basic
Brand: N/a
SKU: FG-40F
Availability: InStock
Rating: 0 (0 reviews)

Thiết bị tường lửa chống Virus & thâm nhập FortiGate FG-40F Security Appliance

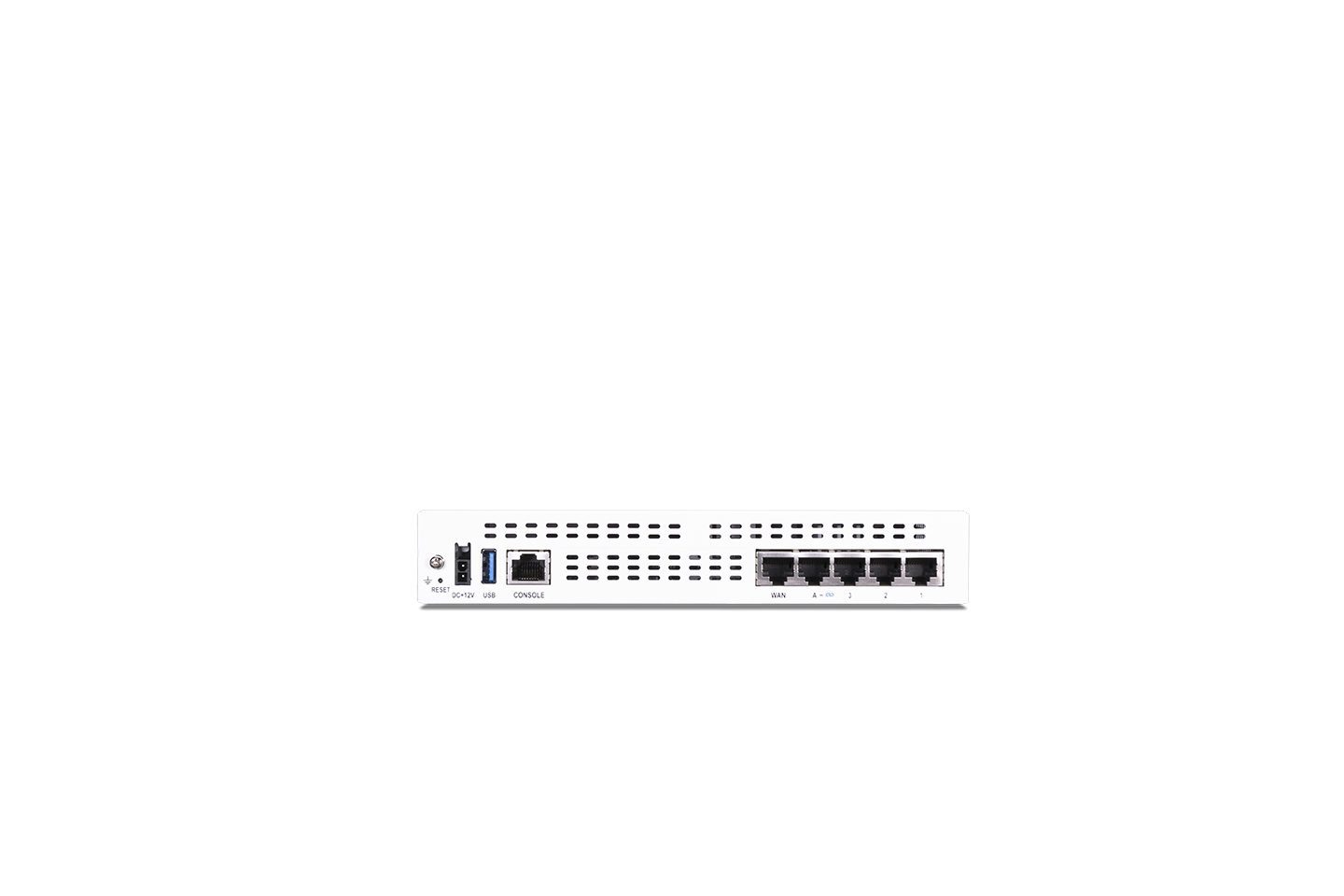

5 x GE RJ45 ports (including , 1 x WAN Port, 4 x Internal Ports)

SKU: FG-40F

Danh mục: Fortigate Fortinet

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật: FG-40F

	FortiGate FG-40F	FortiWifi FG-40F
Interfaces and Modules
GE RJ45 WAN / DMZ Ports	1
GE RJ45 Internal Ports	3
GE RJ45 FortiLink Ports	1
GE RJ45 PoE/+ Ports	-
Wireless Interface	-	Single Radio (2.4GHz/5GHz) 802.11 /a/b/g/n/ac-W2
USB Ports	1
Console (RJ45)	1
Onboard Storage	-
Included Transceivers	-
System Performance — Enterprise Traffic Mix
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5/5/5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput (HTTP 64K)	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor	Desktop
Input rating	12Vdc, 3A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	13.4 W / 15.4 W	14.6 W / 16.6 W
Maximum Current	100V AC / 0.2A, 240V AC / 0.1A
Heat Dissipation	52.55 BTU/hr	56.64 BTU/hr
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO	-	3 x 3
Maximum Wi-Fi Speeds	-	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power	-	20 dBm
Antenna Gain	-	3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz
