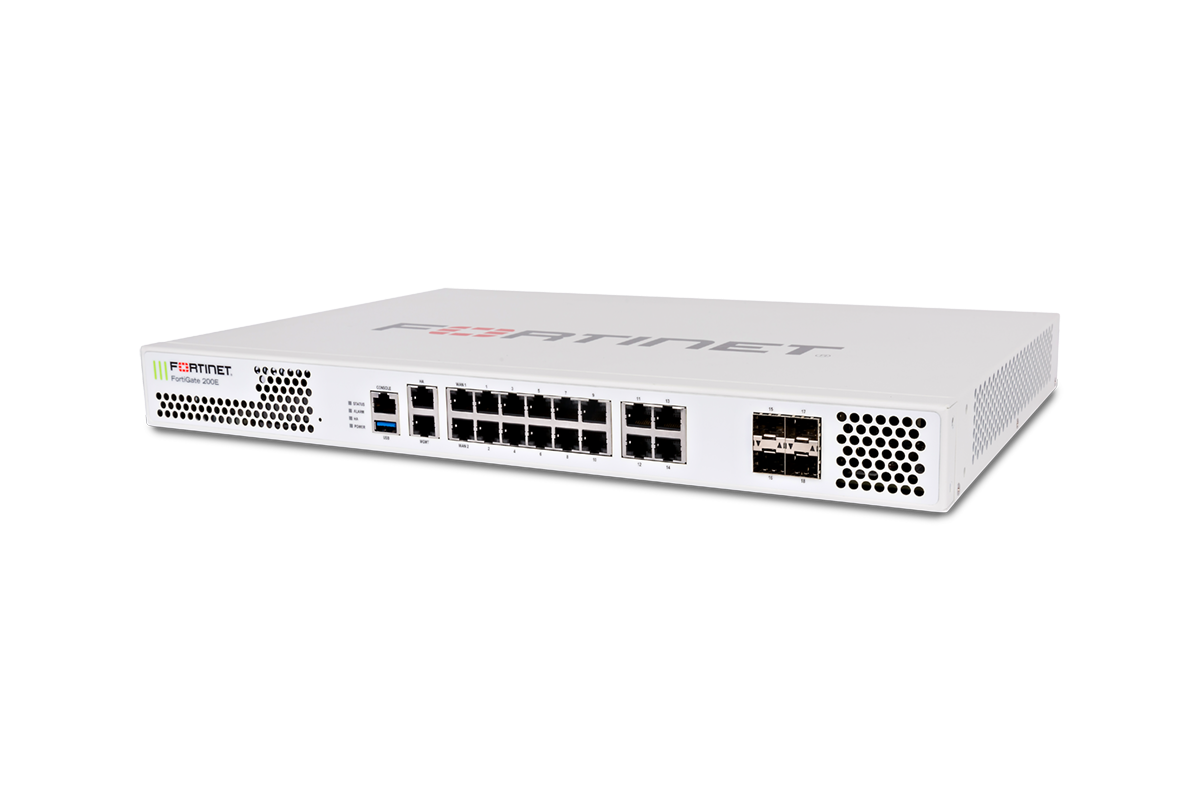

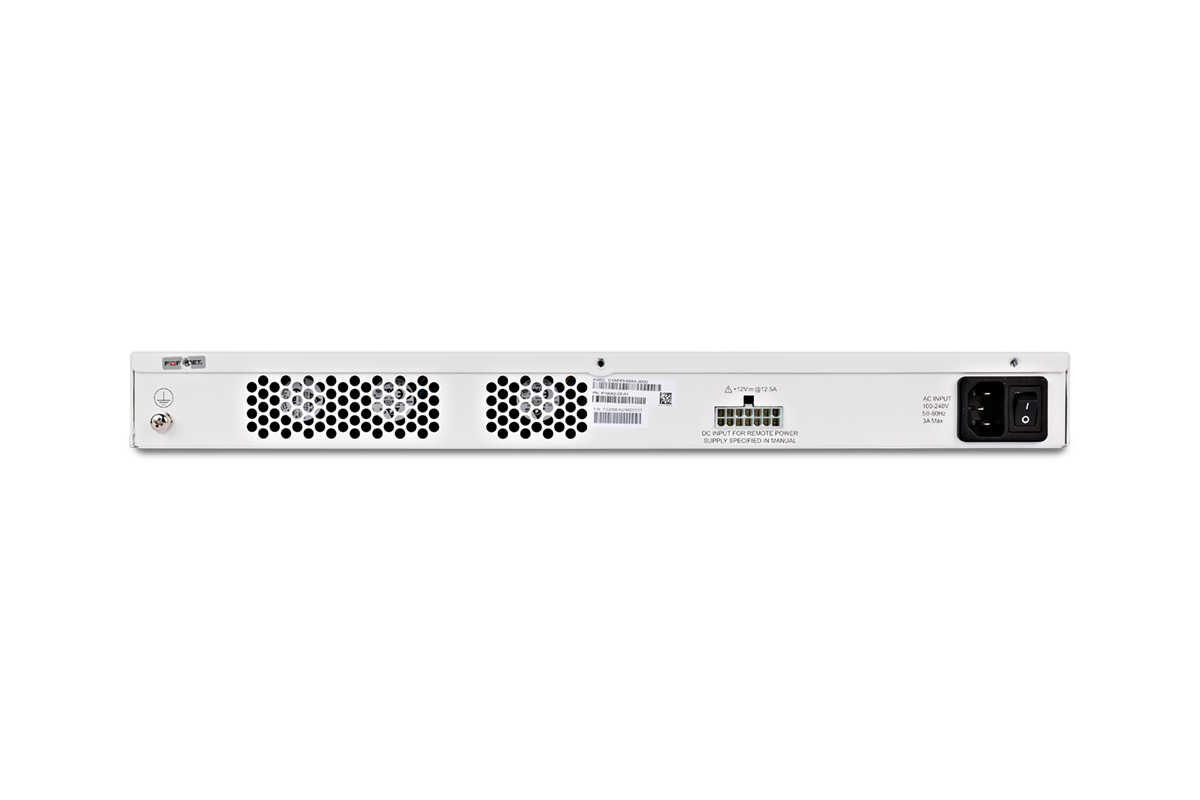

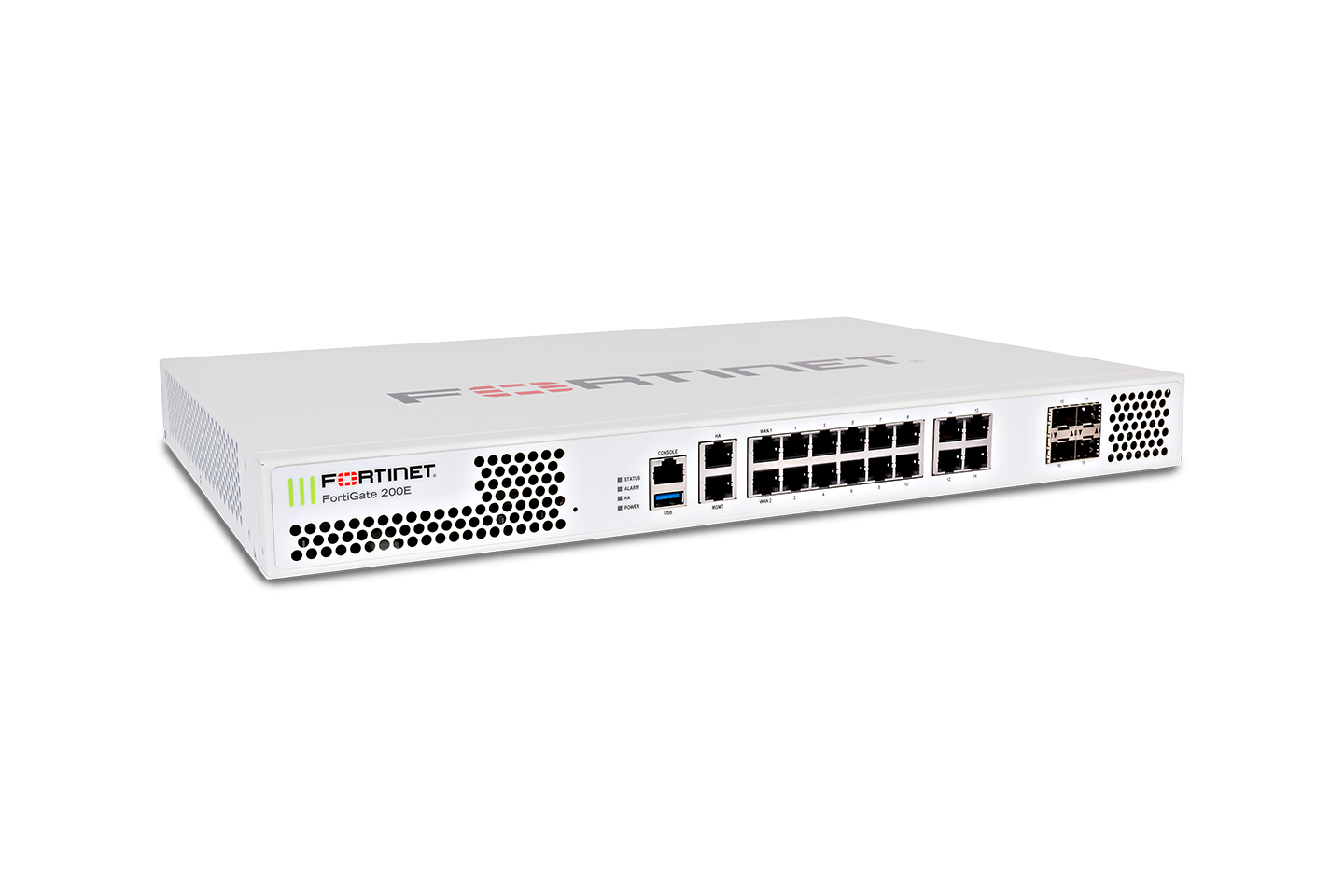

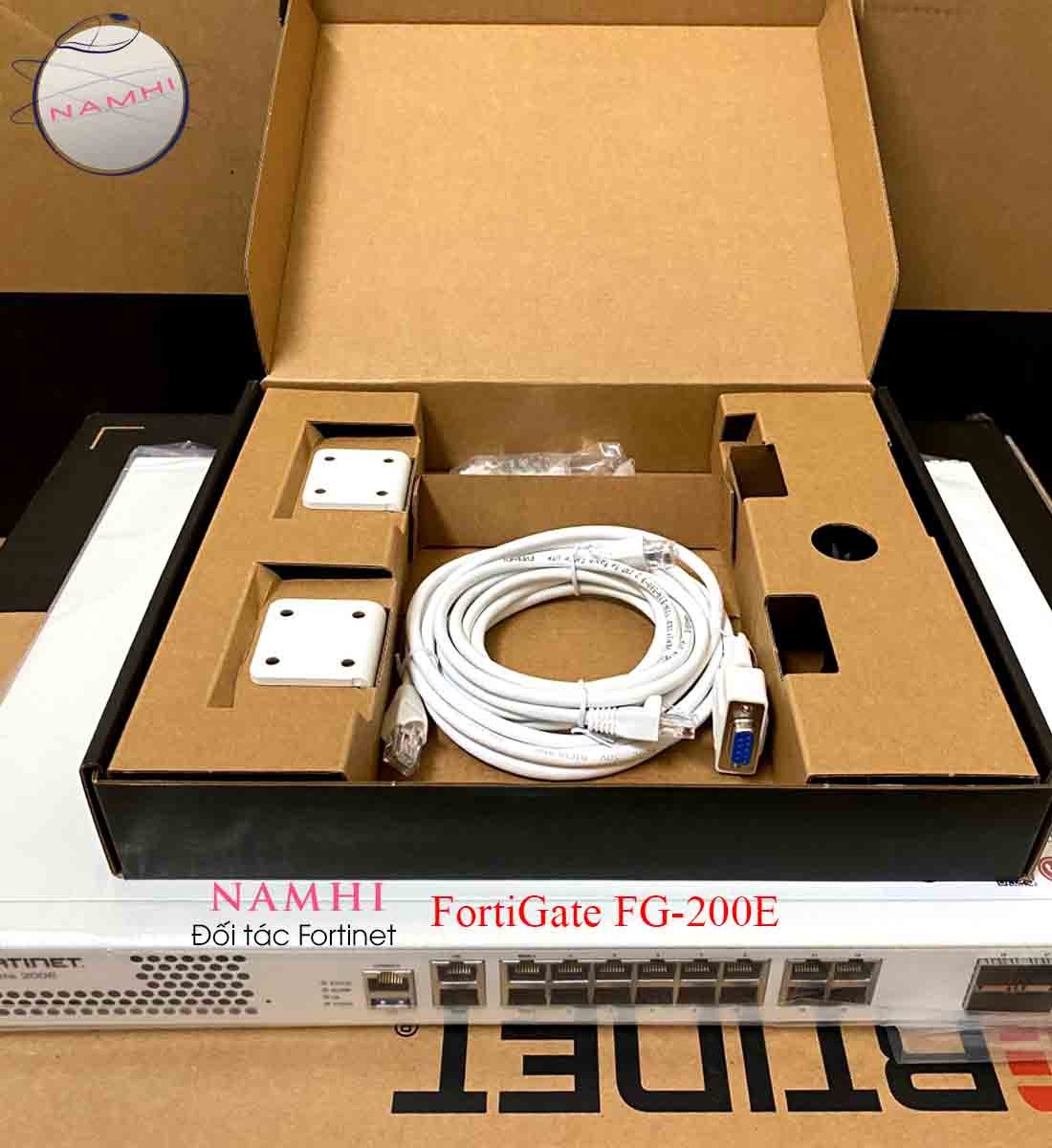

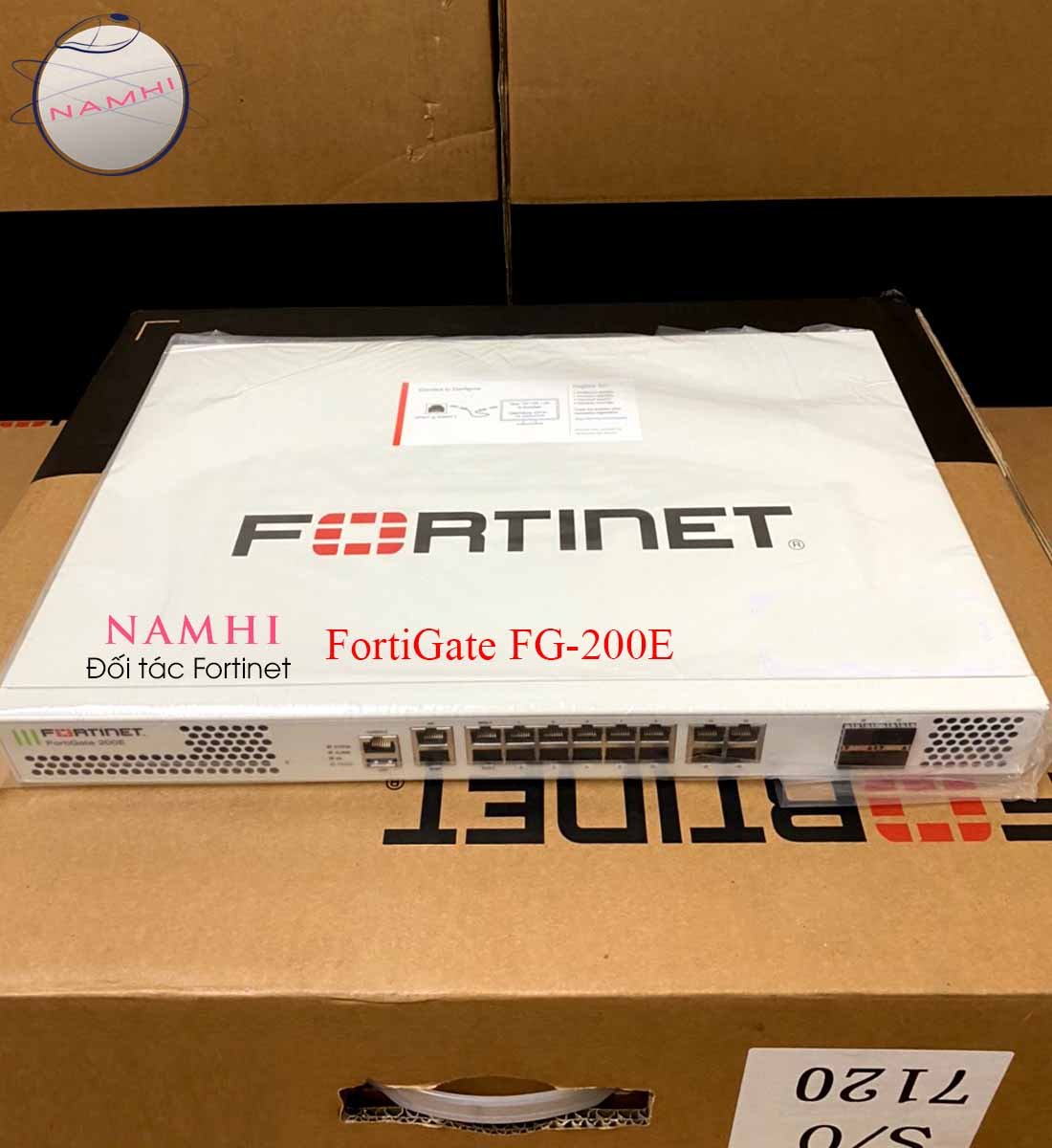

Thiết bị tường lửa FortiGate FG-200E-BDL-950-12 (kèm license 1 năm)

Thiết bị tường lửa FortiGate FG-200E-BDL-950-12 (kèm license 1 năm)

Name: Thiết bị tường lửa FortiGate FG-200E-BDL-950-12 (kèm license 1 năm)
Brand: N/a
SKU: FG-200E_BDL-950-12
Availability: InStock
Rating: 0 (0 reviews)

FortiGate-200E Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

SKU: FG-200E_BDL-950-12

Danh mục: Fortigate Fortinet

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật FG-200E-BDL-950-12

	FortiGate 200E	FortiGate 201E
Hardware Specifications
GE RJ45 WAN Interfaces	2	2
GE RJ45 Management/HA Ports	2	2
GE RJ45 Ports	14	14
GE SFP Slots	4	4
USB (Client / Server)	1 / 1	1 / 1
Console (RJ45)	1	1
Local Storage	-	480 GB
Included Transceivers	0	0
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	20 / 20 / 9 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	13.5 Mpps
Concurrent Sessions (TCP)	2 Million
New Sessions/Second (TCP)	135,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte packets)	9 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	5,000
SSL-VPN Throughput	900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	300
IPS Throughput (HTTP / Enterprise Mix) ¹	6 Gbps / 2.2 Gbps
SSL Inspection Throughput ²	1 Gbps
Application Control Throughput ³	3.5 Gbps
NGFW Throughput ⁴	1.8 Gbps
Threat Protection Throughput ⁵	1.2 Gbps
CAPWAP Throughput ⁶	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	128 / 64
Maximum Number of FortiTokens	1,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.7 x 17.0 x 11.9
Height x Width x Length (mm)	44 x 432 x 301
Weight	11.9 lbs (5.4 kg)	12.12 lbs (5.5 kg)
Form Factor	Rack Mount, 1 RU
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	110 V / 3 A, 220 V / 1.5 A	110 V / 7 A, 220 V / 3.5 A
Power Consumption (Average / Maximum)	70.98 / 109.9 W
Heat Dissipation	374.9 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Safety	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
