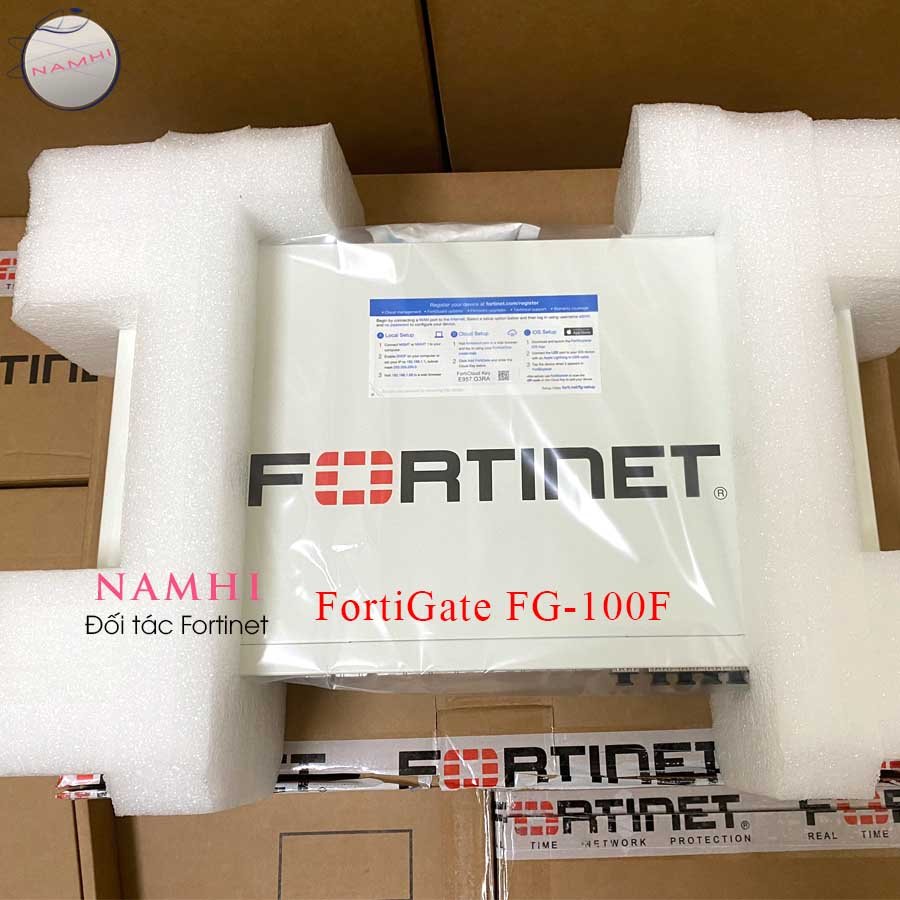

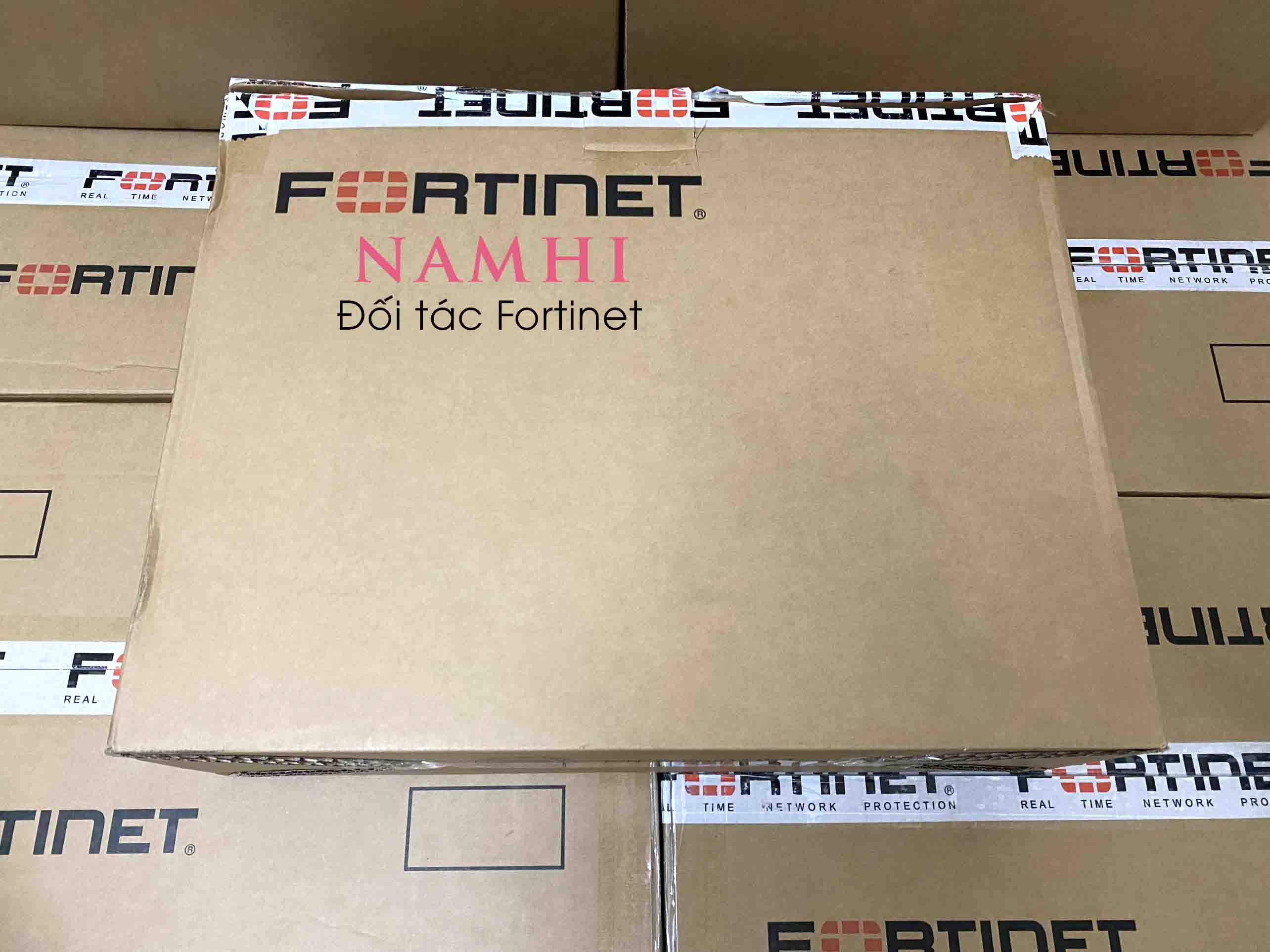

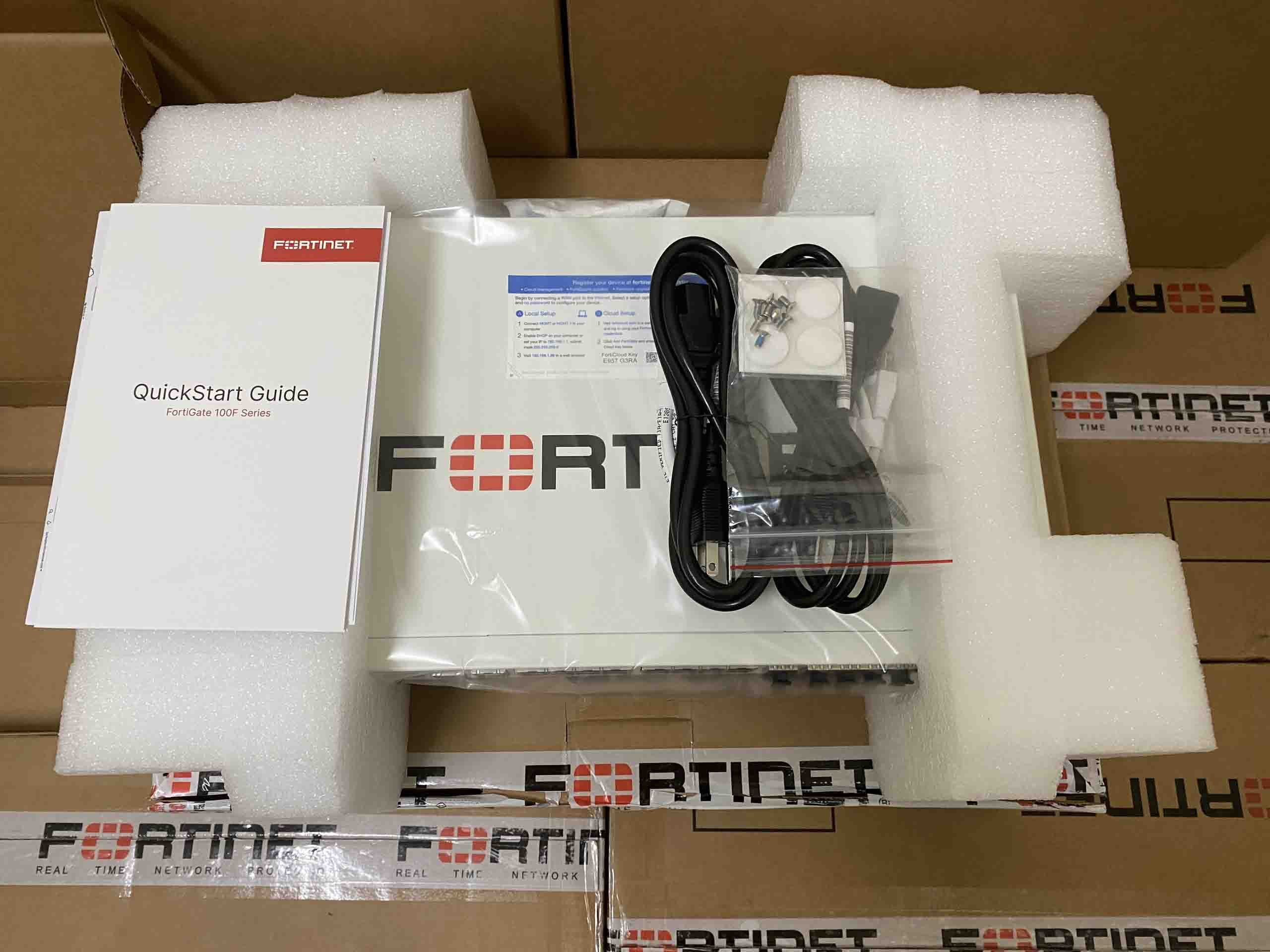

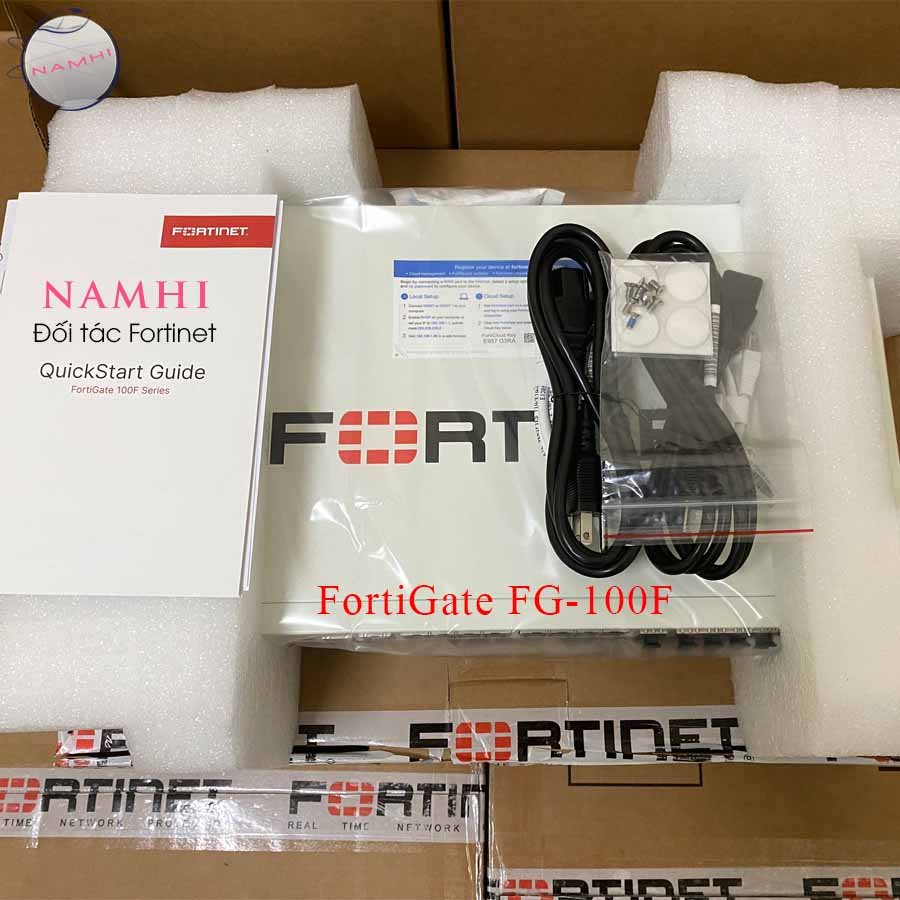

Thiết bị tường lửa Fortigate FG-100F-BDL-950-12 (kèm license 1 năm)

Thiết bị tường lửa Fortigate FG-100F-BDL-950-12 (kèm license 1 năm)

Name: Thiết bị tường lửa Fortigate FG-100F-BDL-950-12 (kèm license 1 năm)
Brand: Fortinet
SKU: FG-100F-BDL-950-12
Availability: InStock
Rating: 0 (0 reviews)

Thiết bị tường lửa chống Virus & thâm nhập FortiGate FG-100F Bundle Security Appliance

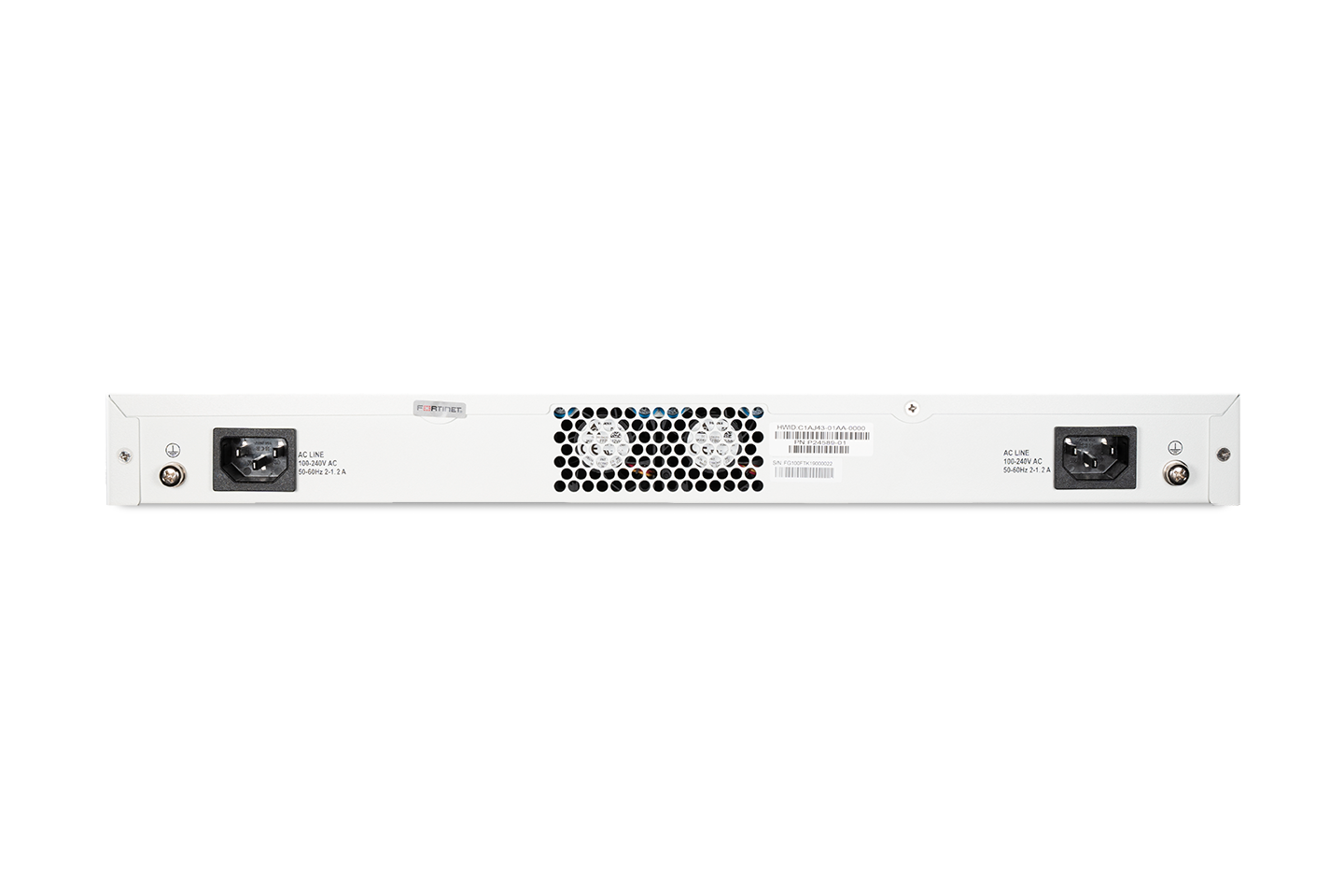

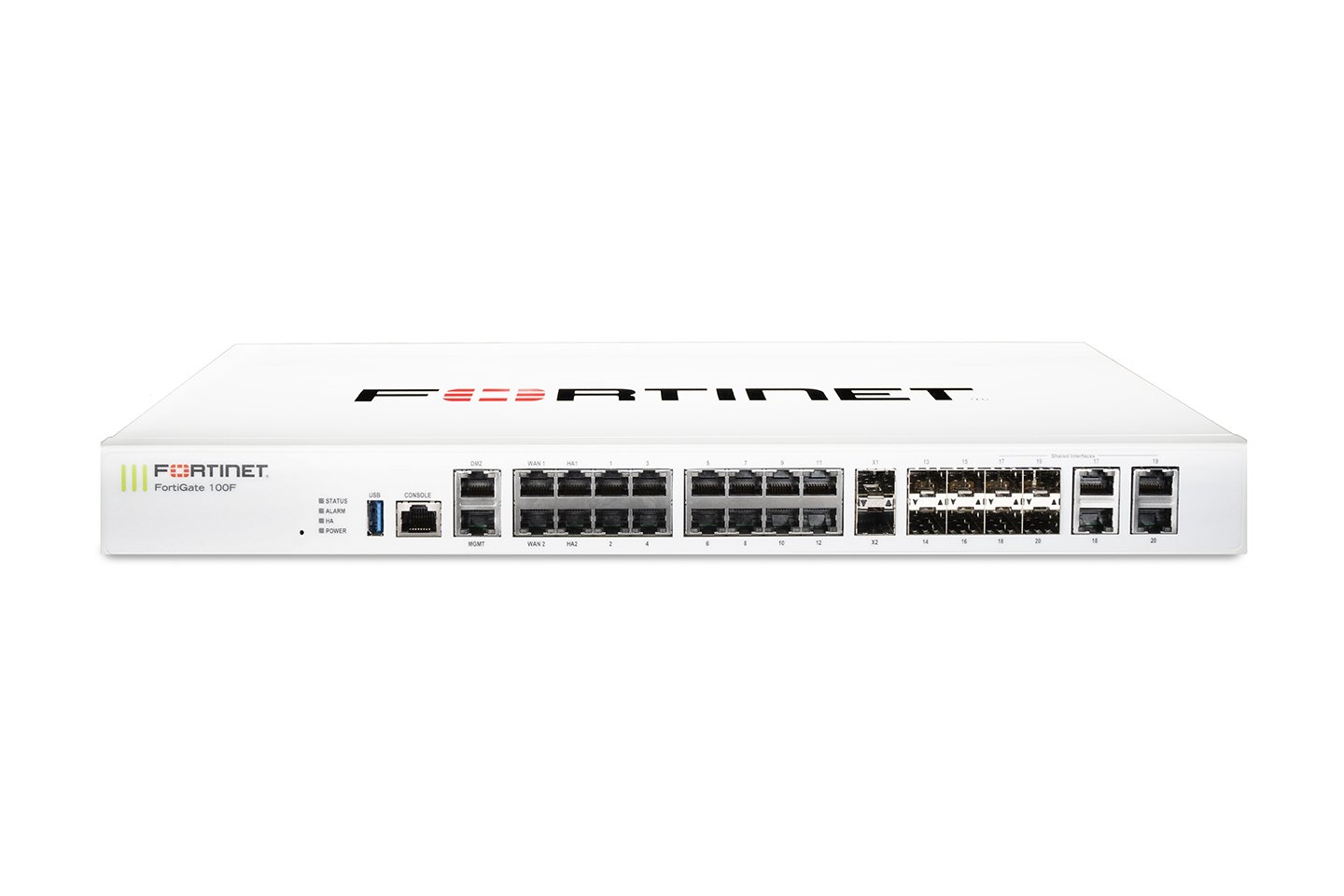

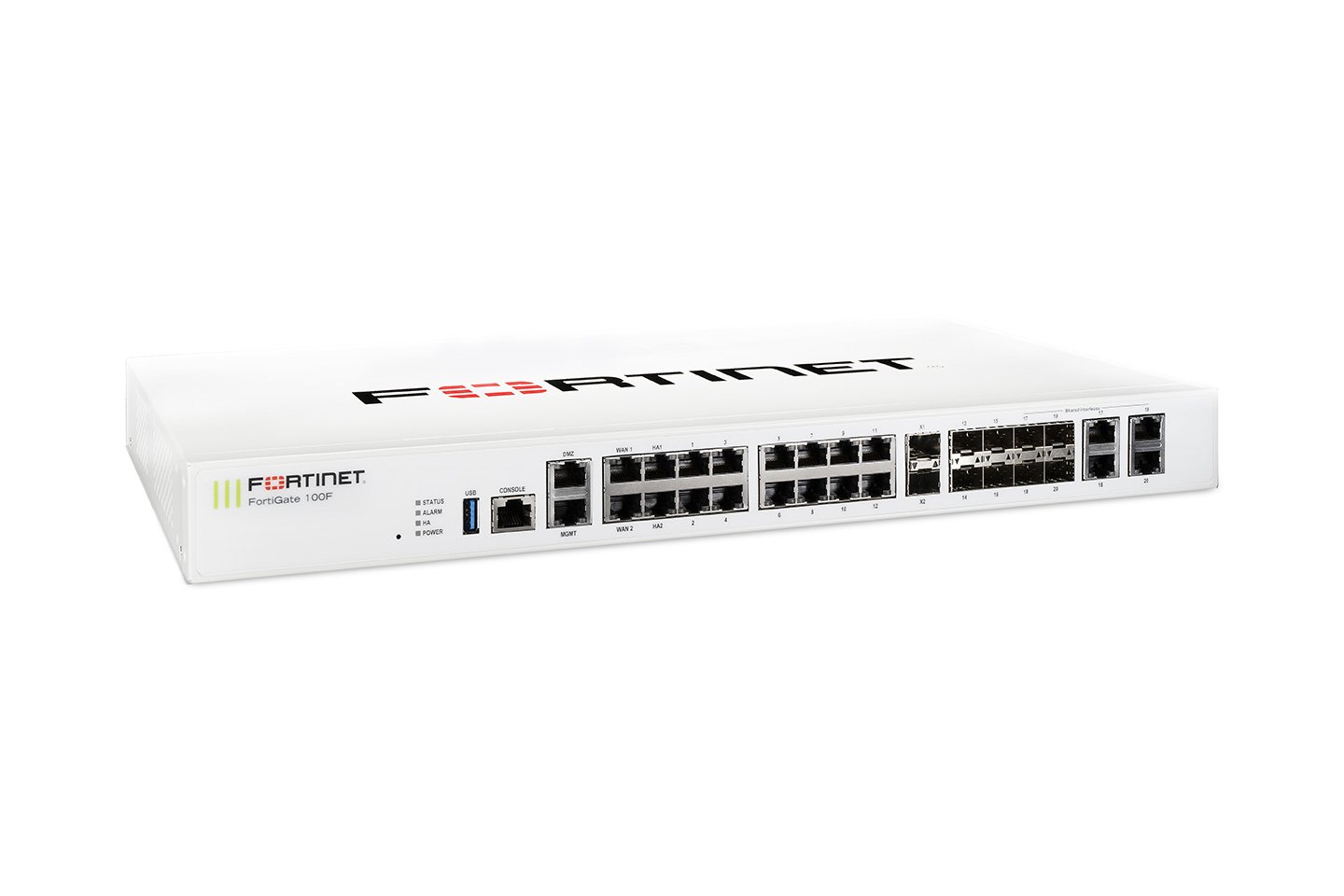

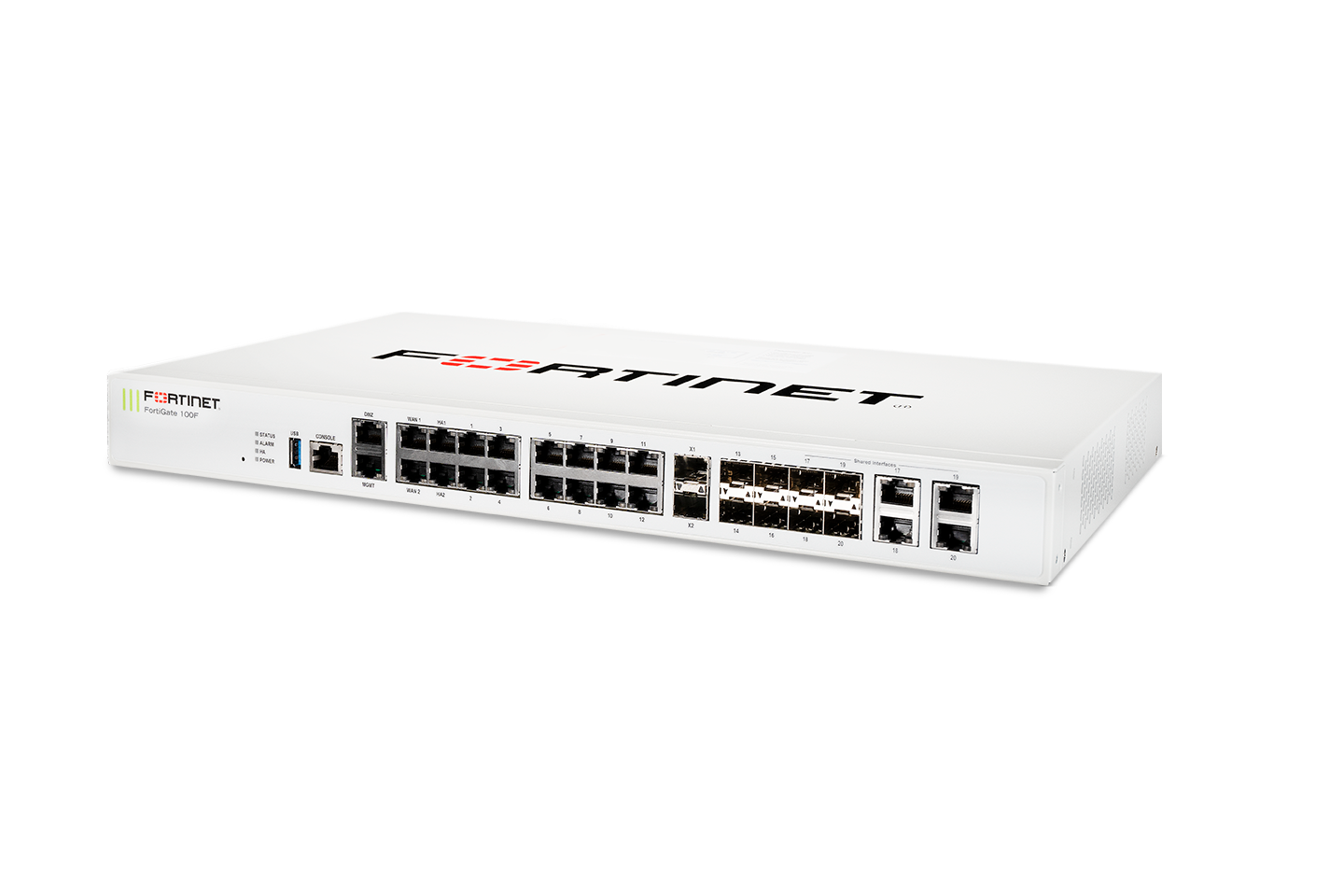

22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy.
Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and 24x7 FortiCare)

SKU: FG-100F-BDL-950-12

Danh mục: Fortigate Fortinet

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

	FORTIGATE FG-100F-BDL-950-12	FORTIGATE FG-101F-BDL-950-12
Hardware Specifications
GE RJ45 Ports	12
GE RJ45 Management/HA/DMZ Ports	1 / 2 / 1
GE SFP Slots	4
10 GE SFP+ Slots	2
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports *	4
USB Port	1
Console Port	1
Internal Storage	—	1x 480 GB SSD
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput2	2.6 Gbps
NGFW Throughput2, 4	1.6 Gbps
Threat Protection Throughput2, 5	1 Gbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets)	5 μs
Firewall Throughput (Packets Per Second)	15 Mpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	56,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)1	11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,500
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	750 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS) 3	1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)3	1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS)3	135,000
Application Control Throughput (HTTP 64K) 2	2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)	15 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254
Form Factor	Rack Mount, 1 RU
Weight	7.25 lbs (3.29 kg)	7.56 lbs (3.43 kg)
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)	35.1 W / 38.7 W	35.3 W / 39.1 W
Heat Dissipation	119.77 BTU/h	121.13 BTU/h
Environment
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

* Copper SFP module is not supported. Note: All performance values are “up to” and vary depending on system configuration.
IPsec VPN performance test uses AES256-SHA256.
IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
NGFW performance is measured with Firewall, IPS and Application Control enabled.
Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
