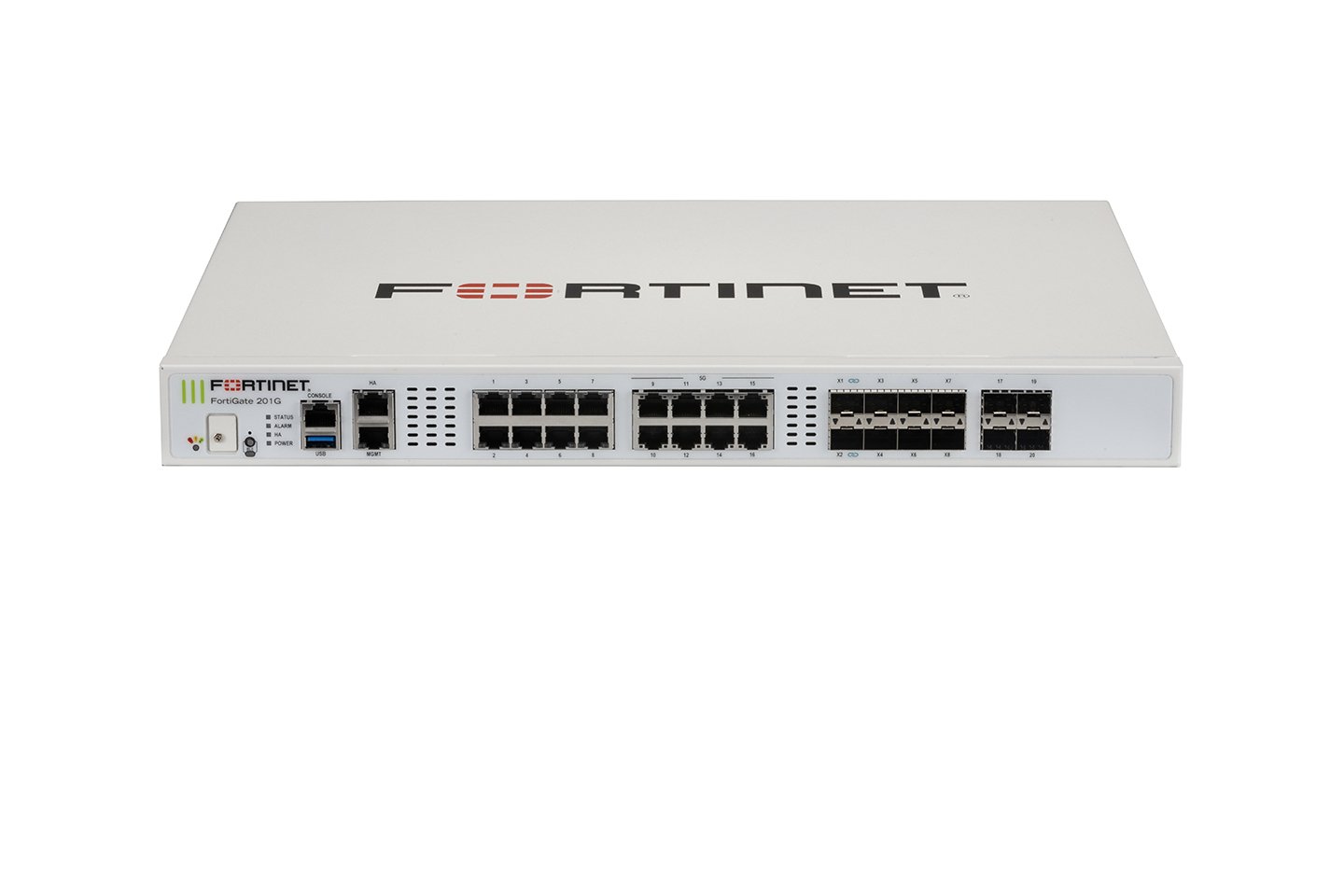

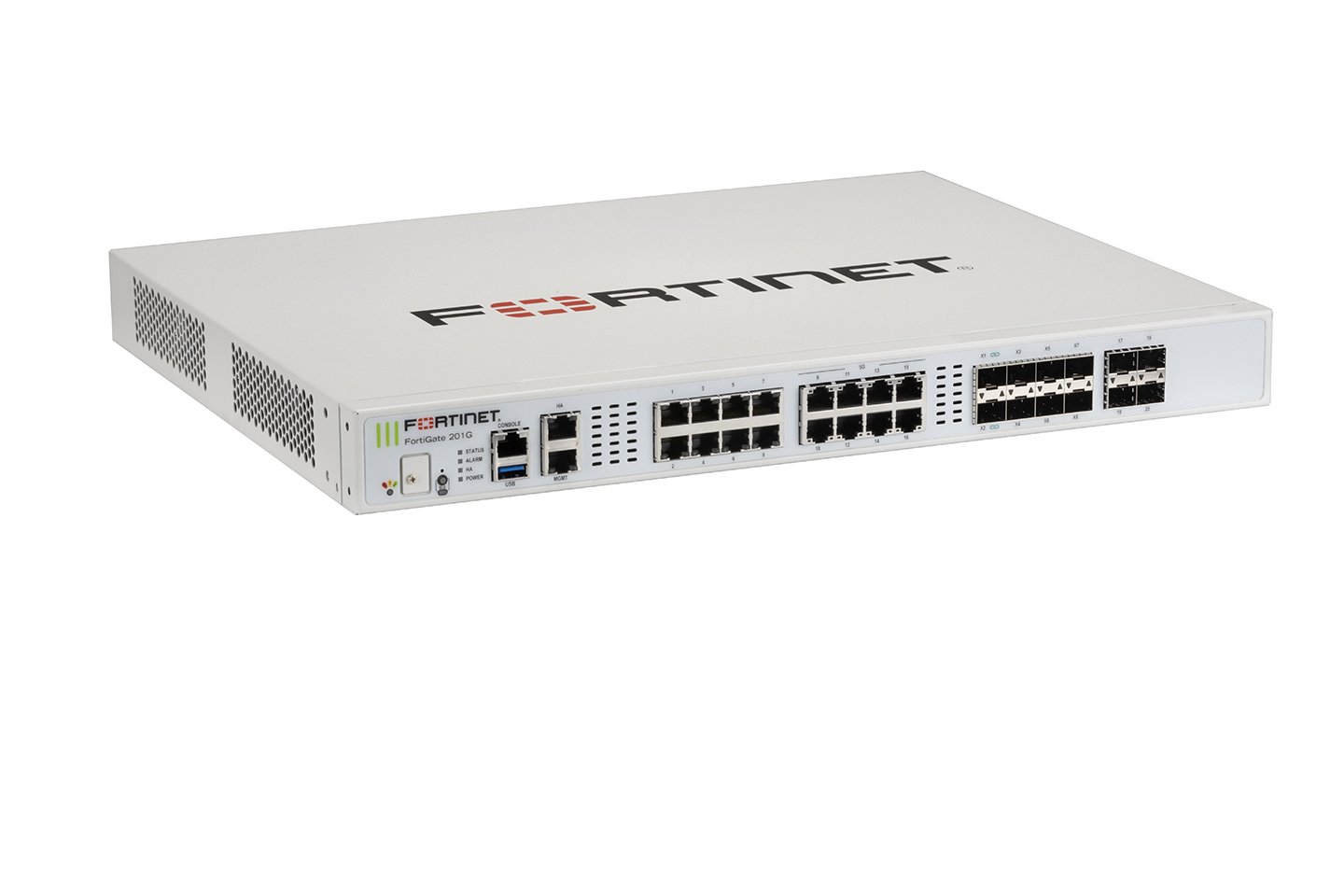

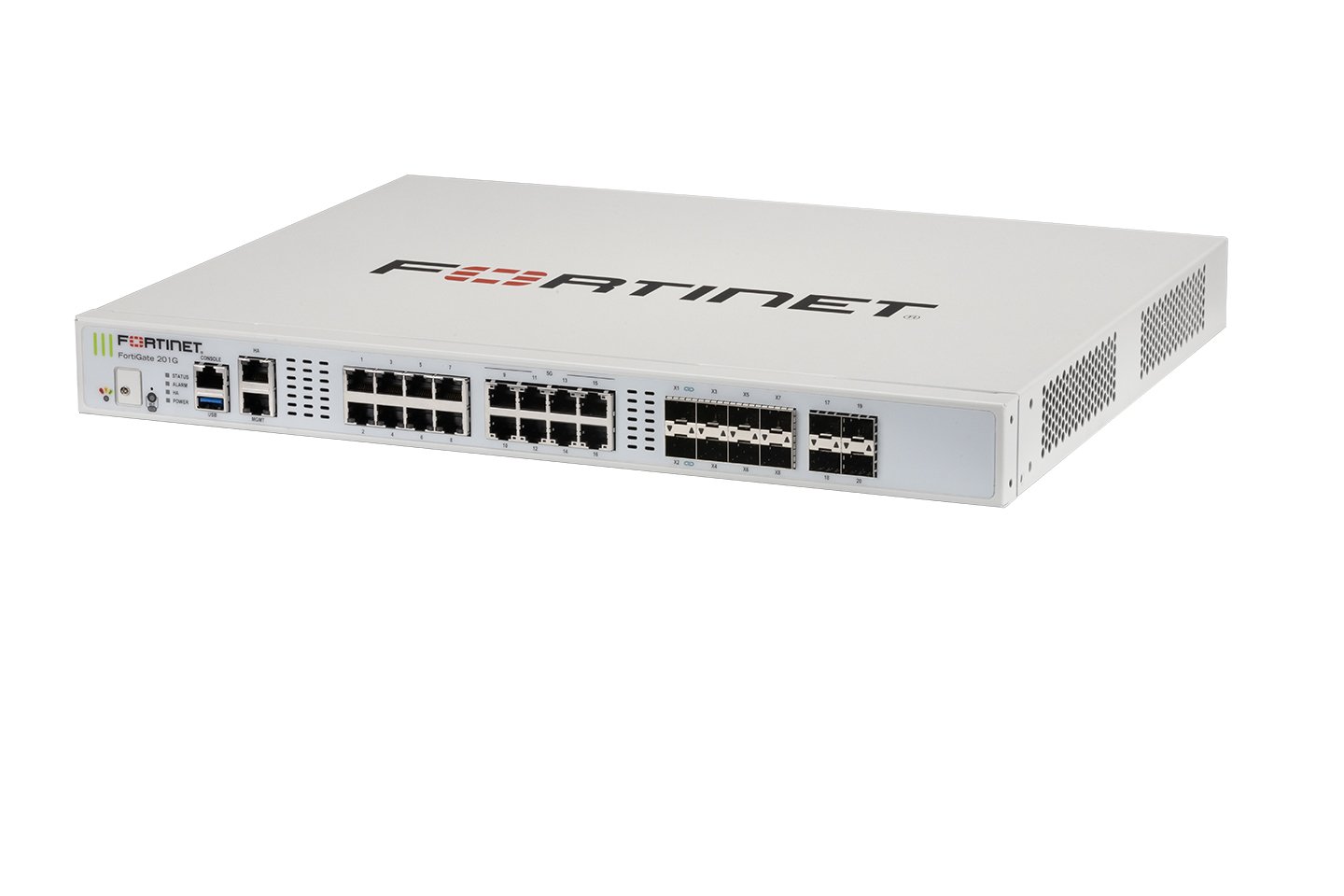

FortiGate FG-200G-BDL-950-12 – Firewall Enterprise Kèm License UTP 1 Năm

FortiGate FG-200G-BDL-950-12 – Firewall Enterprise Kèm License UTP 1 Năm

Name: FortiGate FG-200G-BDL-950-12 – Firewall Kèm License UTP 1 Năm
Brand: N/a
SKU: FG-200G-BDL-950-12
Availability: InStock
Rating: 0 (0 reviews)

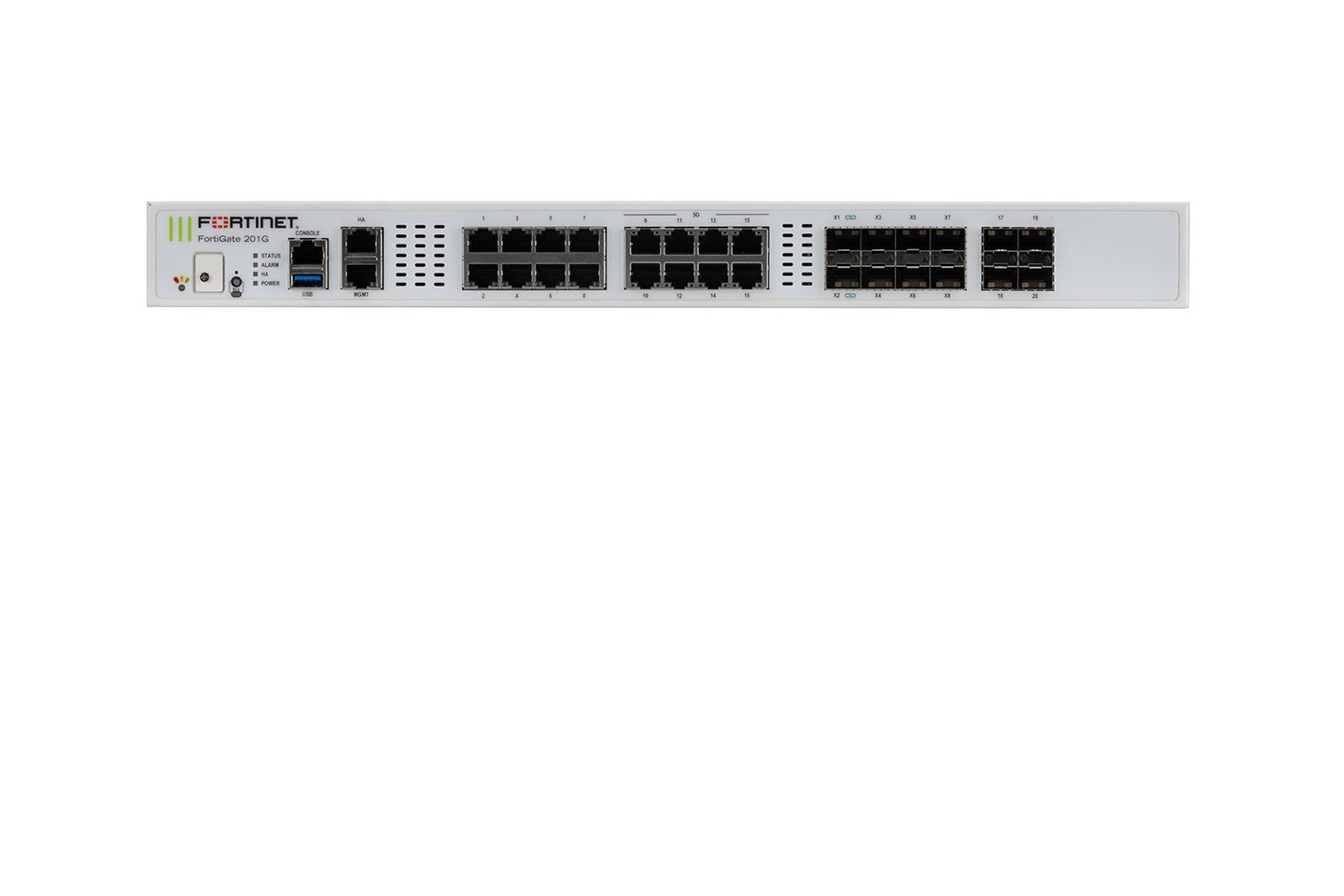

-FortiGate-200G 10 x GE RJ45 (including 1 x MGMT port, 1 x HA port, 8 x switch ports), 4 x GE SFP slots, 8 x 5GE RJ45, 8 x 10GE SFP+ slots, NP7Lite and CP10 hardware accelerated.

-FortiGate-200G Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

SKU: FG-200G-BDL-950-12

Danh mục: Fortigate Fortinet

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Specifications	FortiGate 200G	FortiGate 201G
Interfaces and Modules
GE RJ45 Ports	8
GE RJ45 Management / HA	1 / 1
5/2.5/GE RJ45 Ports	8
GE SFP Slots	4
10/GE SFP/+ FortiLink Slots (default)	8
USB Port	1
Console Port	1
Onboard Storage	0	1x 480 GB SSD
Trusted Platform Module (TPM)
Bluetooth Low Energy (BLE)
Included Transceivers	0
Signed firmware hardware switch	—
System Performance — Enterprise Traffic Mix
IPS Throughput²	9 Gbps
NGFW Throughput^2,4	7 Gbps
Threat Protection Throughput^2,5	6 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	39 / 39 / 26.5 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)	39 / 39 / 26.5 Gbps
Firewall Latency (64 byte, UDP)	4.36 μs
Firewall Throughput (Packet per Second)	39.75 Mpps
Concurrent Sessions (TCP)	11 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)¹	36 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput⁶	3 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, avg. HTTPS) ³	7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)³	7100
SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³	900,000
Application Control Throughput (HTTP 64K) ²	27.8 Gbps
CAPWAP Throughput (HTTP 64K)	37.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total / Tunnel)	256 / 128
Maximum Number of FortiTokens	5000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	14.11 lbs (6.4 kg)	14.33 lbs (6.5 kg)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 1 RU
AC Power Consumption (Average / Maximum)	145 W / 175 W	145 W / 176 W
AC Power Input	100–240V AC, 50/60Hz
AC Current (Maximum)	2A @100VAC, 1.2A @240VAC
Heat Dissipation	597.12 BTU/h	600.54 BTU/h
Power Supply Efficiency Rating	80Plus Compliant

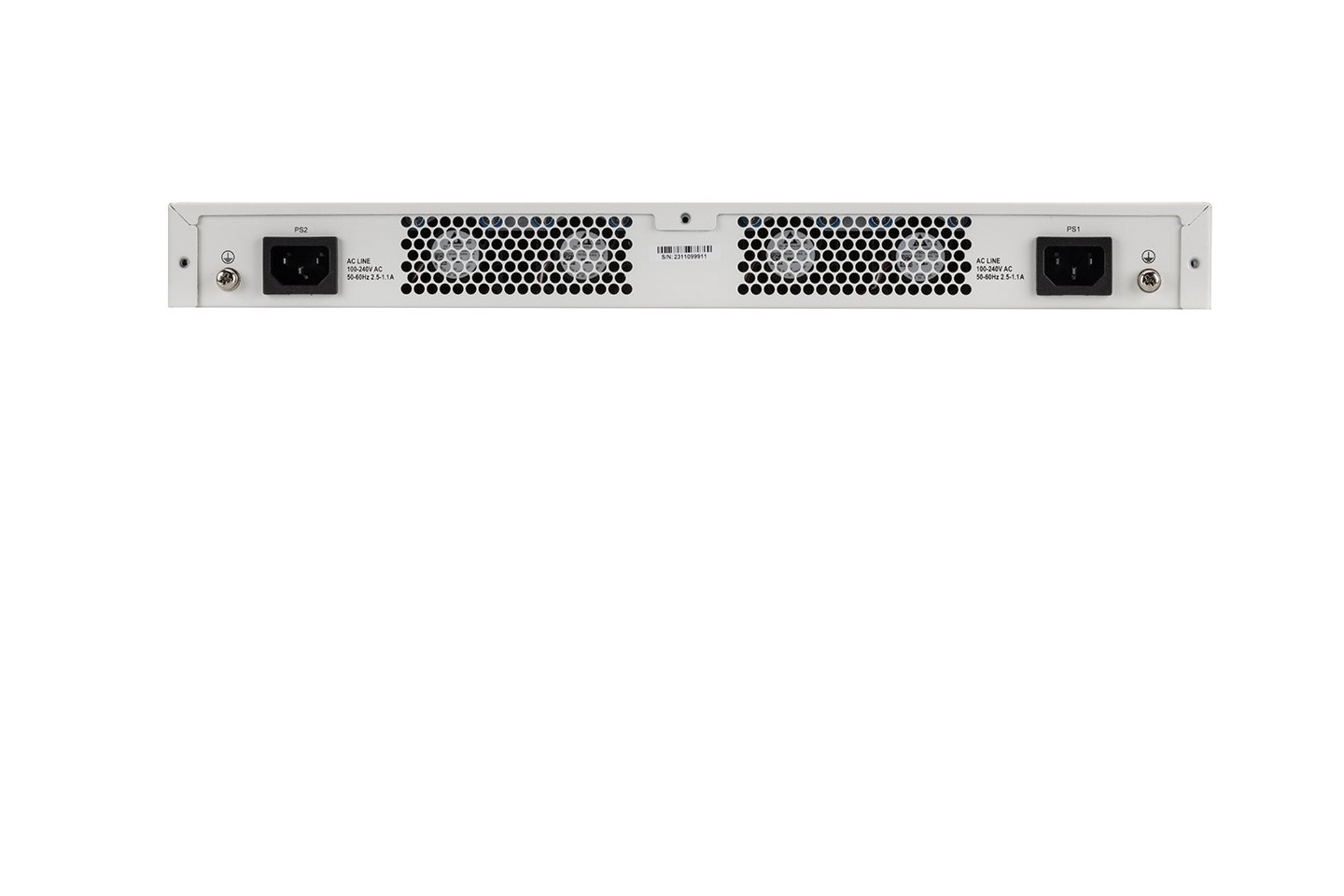

Redundant Power Supplies	(Default dual non-swappable AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certification	USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.
IPsec VPN performance test uses AES256-SHA256.
IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
NGFW performance is measured with Firewall, IPS and Application Control enabled.
Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. Uses RSA-2048 certificate
