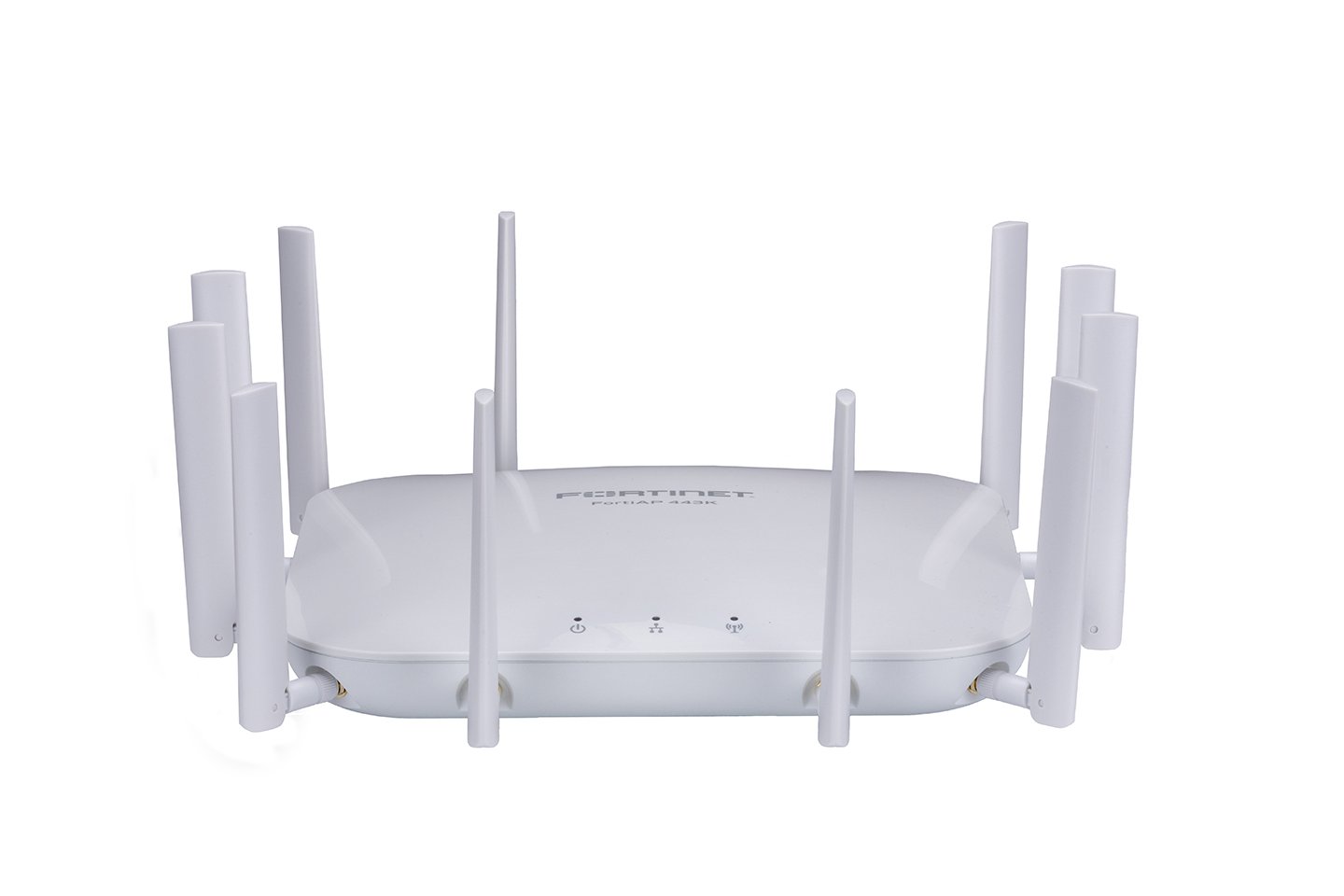

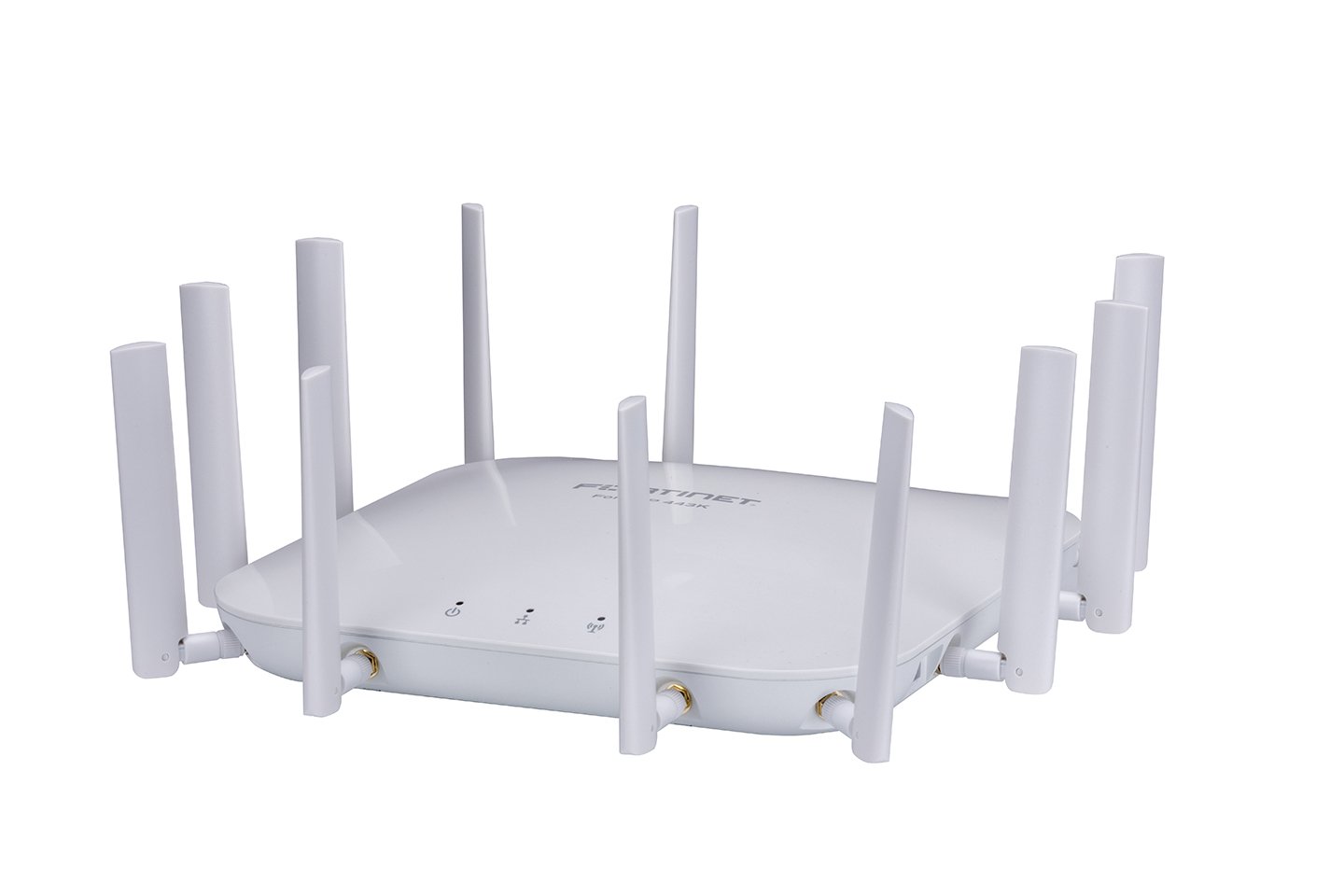

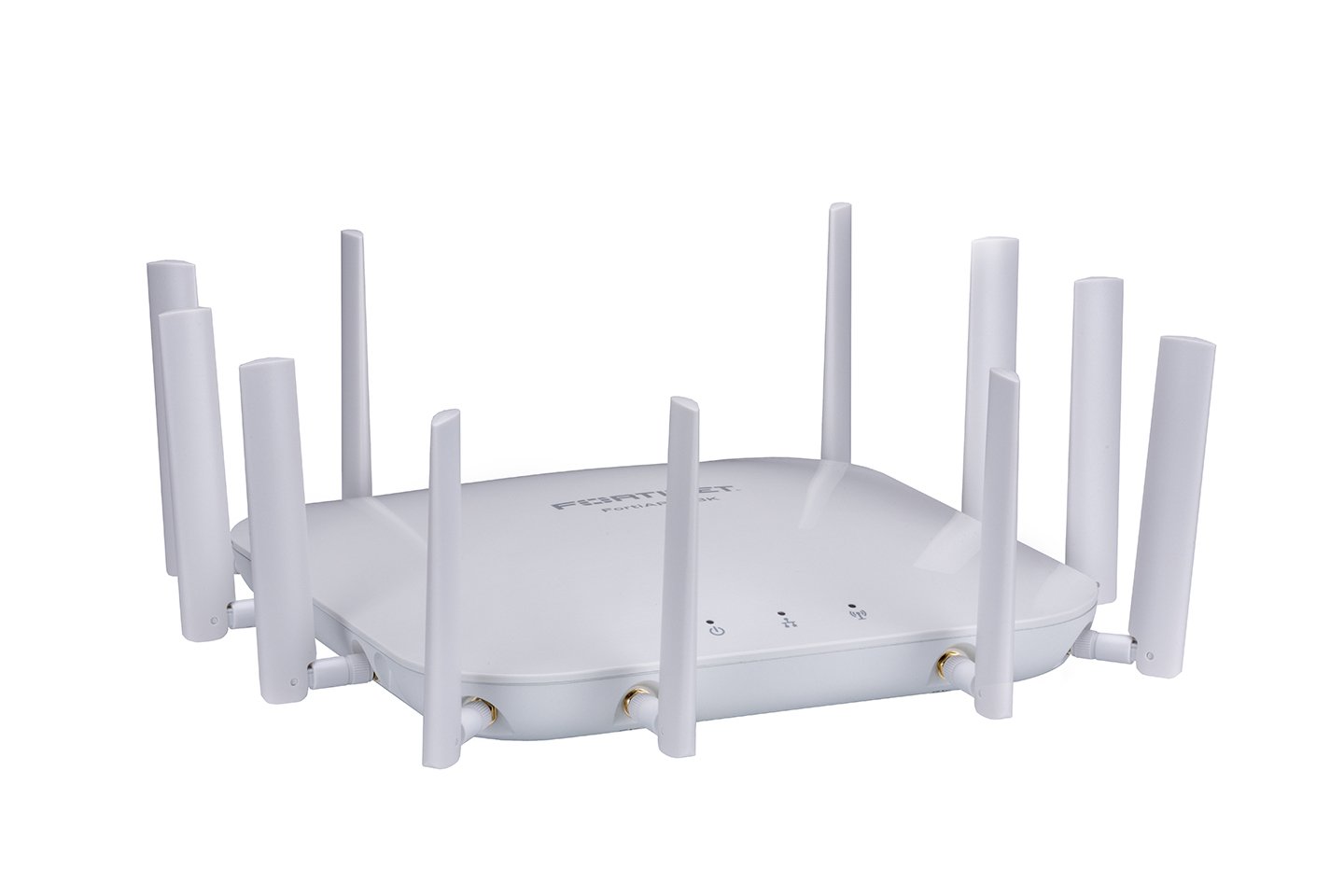

FortiAP FAP-443K - Hạ tầng Wi-Fi 7 cao cấp, roaming mượt cho campus và doanh nghiệp lớn
✔ Wi-Fi 7 (802.11be) Quad-Radio (2.4GHz + 5GHz + 6GHz + scanning)
✔ MU-MIMO 4x4, anten ngoài, hiệu suất vượt trội
✔ Uplink 10GbE, quản lý tập trung FortiGate/FortiLAN Cloud
Chính sách bán hàng
Hàng chính hãng, CO/CQ đầy đủ
Giá cạnh tranh, ưu đãi dự án & đại lý
Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7
Miễn phí giao hàng toàn quốc
Bảo hành minh bạch, chuyên nghiệp
Hỗ trợ trực tuyến

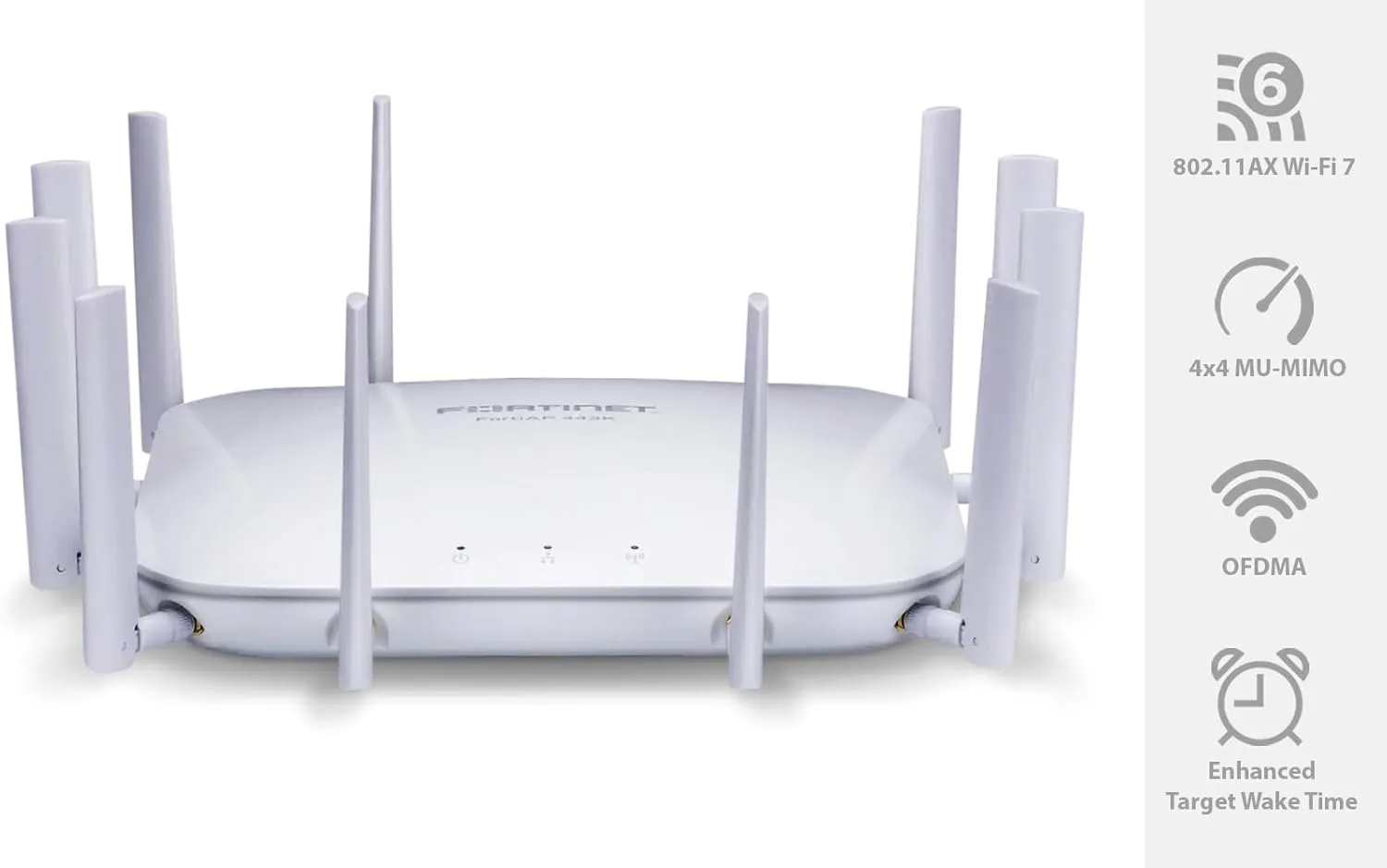

FortiAP 443K – Access Point Wi-Fi 7 Quad-Radio anten ngoài, tốc độ tối đa
FortiAP 443K là Access Point Wi-Fi 7 (802.11be) cao cấp, hỗ trợ quad-radio với MU-MIMO 4x4 và anten ngoài. Với uplink 10GbE và bảo mật Fortinet Fabric, thiết bị mang lại hiệu năng tối đa cho hạ tầng Wi-Fi của doanh nghiệp lớn, campus và các trung tâm thương mại.
Điểm nổi bật của FortiAP 443K
Wi-Fi 7 Quad-Radio
2.4GHz + 5GHz + 6GHz + radio bảo mật, Wi-Fi thế hệ mới mạnh mẽ.
MU-MIMO 4x4
Tốc độ cực cao, hỗ trợ nhiều kết nối đồng thời, giảm độ trễ tối đa.
Anten ngoài
Tối ưu độ phủ sóng, phù hợp môi trường rộng và phức tạp.
Cổng uplink 10GbE
Đảm bảo băng thông cho hạ tầng mạng tốc độ cao.
Bảo mật tích hợp
Fortinet Security Fabric với Firewall, IPS, Application Control, Web Filter.
Quản lý Cloud
Hỗ trợ FortiGate và FortiLAN Cloud, dễ dàng quản lý và mở rộng.
Ứng dụng thực tế
Doanh nghiệp lớn
Hạ tầng Wi-Fi mật độ cao, roaming mượt, hỗ trợ hàng nghìn người dùng.
Campus
Kết nối Wi-Fi thế hệ mới cho lớp học, phòng lab, hội trường lớn.
Trung tâm thương mại
Wi-Fi công cộng tốc độ cao, an toàn, quản lý hàng chục nghìn kết nối.
Phụ kiện & mở rộng
PoE++ Injector
Cấp nguồn công suất cao, tối ưu triển khai FAP-443K.
FortiCare Support
Hỗ trợ kỹ thuật chuyên sâu 8x5/24x7.
FortiLAN Cloud
Quản lý tập trung, giám sát toàn bộ hệ thống từ xa.
Kết luận
FortiAP 443K là Access Point Wi-Fi 7 quad-radio anten ngoài, tốc độ cực cao, uplink 10GbE và bảo mật toàn diện. Đây là giải pháp Wi-Fi đỉnh cao cho doanh nghiệp, campus và môi trường thương mại quy mô lớn.
👉 Liên hệ NAMHI để nhận báo giá & tư vấn triển khai FortiAP 443KFortiAP 441K | FortiAP 443K | |
---|---|---|
Hardware | ||
Hardware Type | Indoor AP | |
Number of Radios | 4 + 1 BLE | |
Number of Antennas | Internal x4 2.4/5GHz Dual band WiFi + x4 6GHz band WiFi x2 Tri-band Scanning + 1 Single band 2.4GHz BLE/ ZigBee + 1GPS antenna | External x4 2.4/5GHz Dual band WiFi + x4 6GHz band WiFi x2 Tri-band Scanning + 1 Single band 2.4GHz BLE/ ZigBee + 1GPS antenna |
Antenna Type and Peak Gain | Omni Directional Antenna Dual band antenna: 4.0 dBi for 2.4GHz 5.6 dBi for 5 GHz 6GHz antenna: 5.4dBi for 6GHz band Tri-band antenna: 4.0 dBi for 2.4 GHz, 6.0 dBi for 5 GHz and 5.7 dBi for 6 GHz band BLE antenna: 5.1 dBi for 2.4GHz GPS active antenna: 2.2 dBi antenna | Omni Directional Antenna Dual band antenna: 5.0 dBi for 2.4GHz 5.0 dBi for 5 GHz 6GHz antenna: 5.8dBi for 6GHz band Tri-band antenna: 5.0 dBi for 2.4 GHz, 5.0 dBi for 5 GHz and 4.0 dBi for 6 GHz band BLE antenna: 5.1 dBi for 2.4GHz GPS active antenna: 2.2 dBi antenna |
Frequency Bands (GHz) | . ISM 2.4-2.484 GHz · U-NII-1 5.15-5.25 GHz · U-NII-2A 5.25-5.35 GHz · U-NII-2C 5.47-5.725 GHz · U-NII-3 5.725-5.85 GHz · U-NII-4 5.850-5.925 GHz · U-NII-5 5.925–6.425 GHz · U-NII-6 6.425–6.525 GHz · U-NII-7 6.525–6.875 GHz · U-NII-8 6.875–7.125 GHz | |
Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 4x4 Service | |
Radio 2 Capabilities | Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160/240MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4x4 Service | |
Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 4x4 Service | |
Radio 4 Capabilities | Frequency band: 2.4/5.0/6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Scanning | |
Maximum Data Rate | 2.4GHz band: up to 1.148 Gbps 5.0GHz band: up to 8.648 Gbps 6.0GHz band: up to 11.530 Gbps | |
Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power | |
GNSS | Supported Bands Default constallations Number of Tracking Channels Number of Concurrent GNSS SBAS Sensitivity (@ Default Constallations) | GPS L1 C/A, QZSS L1 C/A: 1575.42 MHz GLONASS L1: 1598.0625–1605.375 MHz BDS B1I : 1561.098 MHz, Galileo E1: 1575.42 MHz GPS + GLONASS + BDS + Galileo + QZSS 47 5 WAAS, EGNOS, MSAS and GAGAN 147dBm |

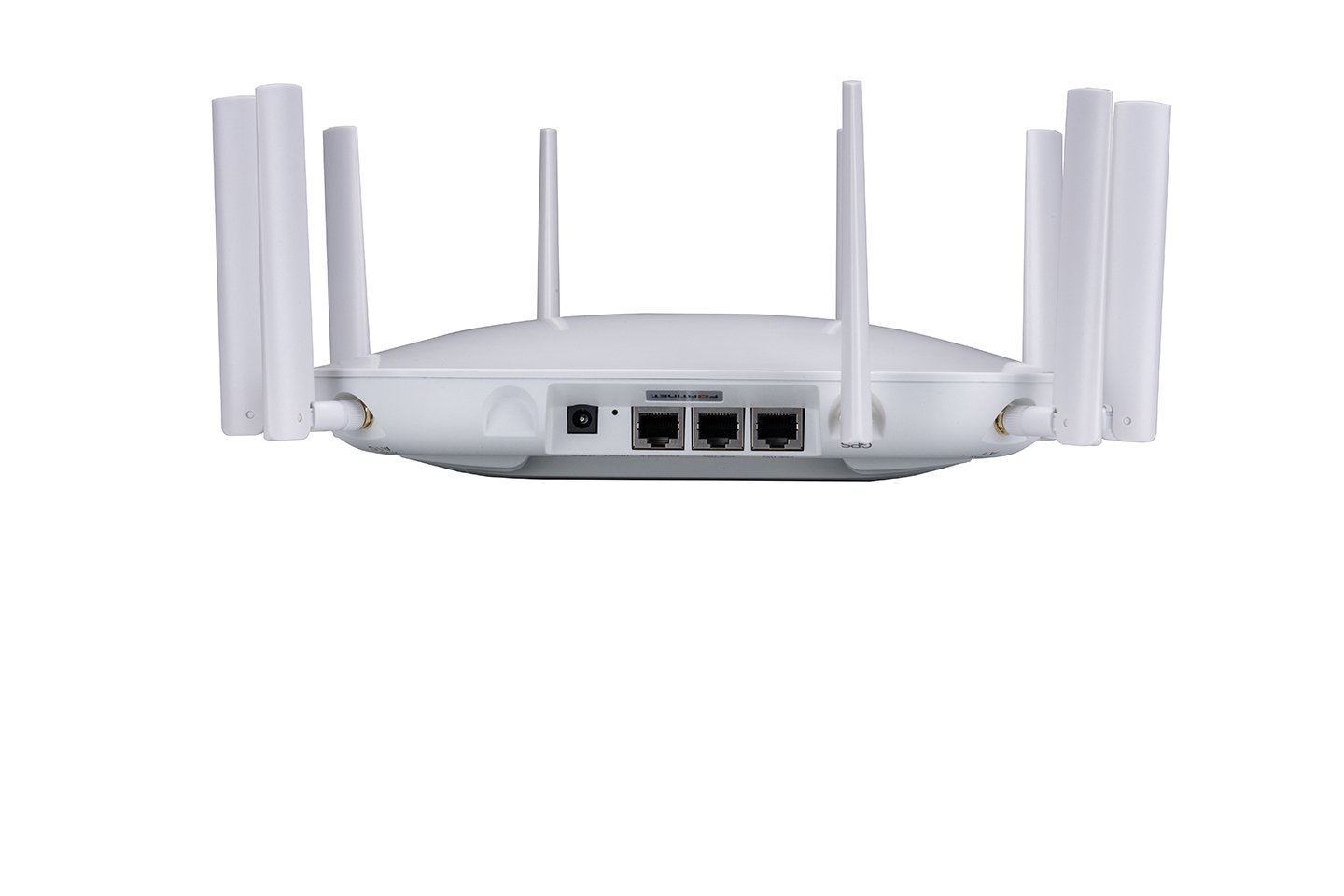

Interfaces | x2 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) x1 Type 3.0 USB at 4.5W x1 RS-232 RJ45 Serial Port | |
Power over Ethernet (PoE) | x1 802.3bt PoE default or x2 802.3at PoE (Dual PoE current sharing) | |
Simultaneous SSIDs | Up to 24 | |
EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist | |
Maximum Tx Power (Conducted) | 2.4GHz band: 29 dBm / 794 mW (4 chains combined) 5.0GHz band: 27.8 dBm / 602 mW (4 chains combined) 6.0GHz band: 23 dBm / 200 mW (4 chains combined @ 160MHz BW) | |
Kensington Lock | Yes | Yes |
IEEE Standards | 802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az | |
SSIDs Supported | Local-Bridge, Tunnel, and Mesh | |
Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2 and Radio3) | |
Cellular Co-existence | Yes | |
LED Off Mode | Yes | |
Advanced 802.11 Features | ||
OFDMA | Yes (UL and DL) | |
Spatial Reuse (BSS Coloring) | Yes | |
UL MU-MIMO | Yes | |
DL-MU-MIMO | Yes | |
Enhanced Target Wake Time (TWT) | Yes | |
ZeroWait DFS | No | |
Wireless Monitoring Capabilities | ||
Rogue Scan radio modes | Background, Dedicated | |
WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
Packet Sniffer Mode | Yes | |
Spectrum Analyzer | Yes | |
Dimensions | ||
Length x Width x Height | 9.84 x 9.84 x 2.26 inches (250 x 250 x 57.5 mm) | |
Weight | 4.36 lbs (1.98 kg) | |
Package (shipping) Weight | 6.9 lbs (3.13 kg) | |
Mounting Options | Ceiling, T-Rail, and Wall | |
Included Accessories | Standard Mounting Kit for Ceiling, T-Rail, and Wall | |
Environment | ||
Power Supply | GPI-145 or SP-FAP250-PA-10 | |
Power Consumption (Maximum) | 41.7 W | |
PoE Mode | 802.3at : R1(2.4Ghz) and R2(5 GHz) operation in Low Tx Power 17dBm ; Chain 4x4; USB – Disabled 802.3bt / DC : Full – Tx Power Full ; Chain 4x4; USBEnabled | |
Humidity | 5% - 90% non condensing | |
Operating / Storage Temperature | 32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C) | |
Directives | Low Voltage Directive • RoHS | |
UL2043 Plenum Material | Yes | |
Mean Time Between Failures | > 10 Years | |
IP Rating | N/A | |
Surge Protection Built In | Yes | |
Hit-less PoE Failover | N/A | |
Certifications | ||
WiFi Alliance Certified | Certified (Wi-Fi 7 in progress) | |
DFS | No | |
Warranty | ||
Limited Lifetime Warranty | Yes |
