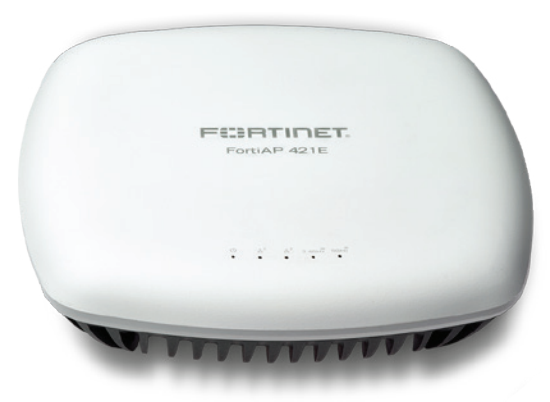

FortiAP 421E - Access Point Wi-Fi 802.11ac Wave 2, MU-MIMO 4x4

Name: FortiAP 421E – Access Point Wi-Fi 802.11ac Wave 2, MU-MIMO 4x4
Brand: Fortinet
SKU: FAP-421E
Availability: InStock
Rating: 0 (0 reviews)

✔ Wi-Fi 802.11ac Wave 2, 4x4 MU-MIMO
✔ Dual-radio: 2.4GHz (800 Mbps) + 5GHz (1.733 Gbps)
✔ 2x GE RJ45, PoE 802.3at, hỗ trợ đến 512 client/radio

SKU: FAP-421E

Danh mục: FortiAP

Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật FortiAP 421E

	FortiAP-421E	FortiAP-423E
Hardware
Hardware Type	Indoor	Indoor
Number of Radios	2	2
Number of Antennas	8 Internal	8 RP-SMA External
Peak Antenna Gain	4 dBi for 2.4 GHz, 5 dBi for 5 GHz	3 dBi for 2.4 GHz, 3 dBi for 5 GHz
Frequency Bands (GHz) *	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.851
Frequency of Radio 1	2.4 GHz b/g/n (4x4:4 stream) QCA9980 20/40 Mhz (256 QAM)	2.4 GHz b/g/n (4x4:4 stream) QCA9980 20/40 Mhz (256 QAM)
Frequency of Radio 2	5 GHz a/n/ac (4x4:4 stream) QCA9980 20/40/80 Mhz (256 QAM)	5 GHz a/n/ac (4x4:4 stream) QCA9980 20/40/80 Mhz (256 QAM)
Maximum Data Rate	Radio 1: up to 600 Mbps Radio 2: up to 1.733 Gbps	Radio 1: up to 600 Mbps Radio 2: up to 1.733 Gbps
Ethernet Ports	2x GE RJ45	2x GE RJ45
USB Port	1x Type A	1x Type A
Serial Console Port	1 RS-232 x RJ45	1 RS-232 x RJ45
Power over Ethernet (PoE)	Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W)	Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W)
Simultaneous SSIDs	16 (14 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA and WPA2 with 802.1X or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power	19 dBm (80 mW)*	19 dBm (80 mW)*
Physical Security	Kensington Lock	Kensington Lock
IEEE Specifications	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.11ac, 802.3at, 802.3az, 802.3ad (LACP support)
FortiPresence Capable	Yes	Yes
Wireless Mesh Capable	Yes	Yes
Concurrent Clients Per Radio (Maximum / Recommended)	512 / 128	512 / 128
Advanced 802.11 Features
802.11ac Wave2 MU-MIMO	Yes	Yes
Transmit Beam Forming (TxBF)	Yes	Yes
Low-Density Parity Check (LDPC) Encoding	Yes	Yes
Maximum Likelihood Demodulation (MLD)	Yes	Yes
Maximum Ratio Combining (MRC)	Yes	Yes
A-MPDU and A-MSDU Packet Aggregation	Yes	Yes
MIMO Power Save	Yes	Yes
Short Guard Interva	Yes	Yes
WME Multimedia Extensions	Yes (4 priority queues for voice, video, data and background traffic)
Wireless Monitoring Capabilities
Frequencies scanned	2.4 and 5 GHz	2.4 and 5 GHz
Background scan with client access on2.4 and 5 GHz	Yes	Yes
Full-time scan as dedicated monitor	Yes	Yes
Full-time scan with client access on 5G GHz	No	No
Dimensions
Length x Width x Height	8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm)	8.5 x 8.5 x 2.2 inches (215 x 215 x 56 mm)
Weight	3.53 lb (1.6 kg)	3.57 lb (1.62 kg)
Package (shipping) Weight	4.95 lb (2.2 kg)	5.3 lb (2.4 kg)
Mounting Options	Ceiling, T-Rail and wall	Ceiling, T-Rail and wall
Included Accessories	Ceiling, T-Rail and wall mount kit (AC power adapter sold seperately)	Ceiling, T-Rail and wall mount kit and 8 dipole antennas (AC power adapter sold seperately)
Environment
Power Supply	Adapter Input: 100–240V, 50/60Hz, 0.9A Maximum Output: 12V DC, 3A	Adapter Input: 100–240V, 50/60Hz, 0.9A Maximum Output: 12V DC, 3A
Power Consumption (Average / Maximum)	20 W / 23 W	20 W / 23 W
Humidity	5–90% non condensing	5–90% non condensing
Operating Temperature	-4–122x°F (-20–50°C)	-4–122x°F (-20–50°C)
Storage Temperature	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)
Directives	Low Voltage Directive • RoHS	Low Voltage Directive • RoHS
UL2043 Plenum Material	Yes	Yes
Mean Time Between Failures	>30 Years	>30 Years
Certifications
WiFi Alliance Certified	In Process	In Process
DFS Certified	In Process	In Process
Warranty
Limited Lifetime Warranty	Yes	Yes
