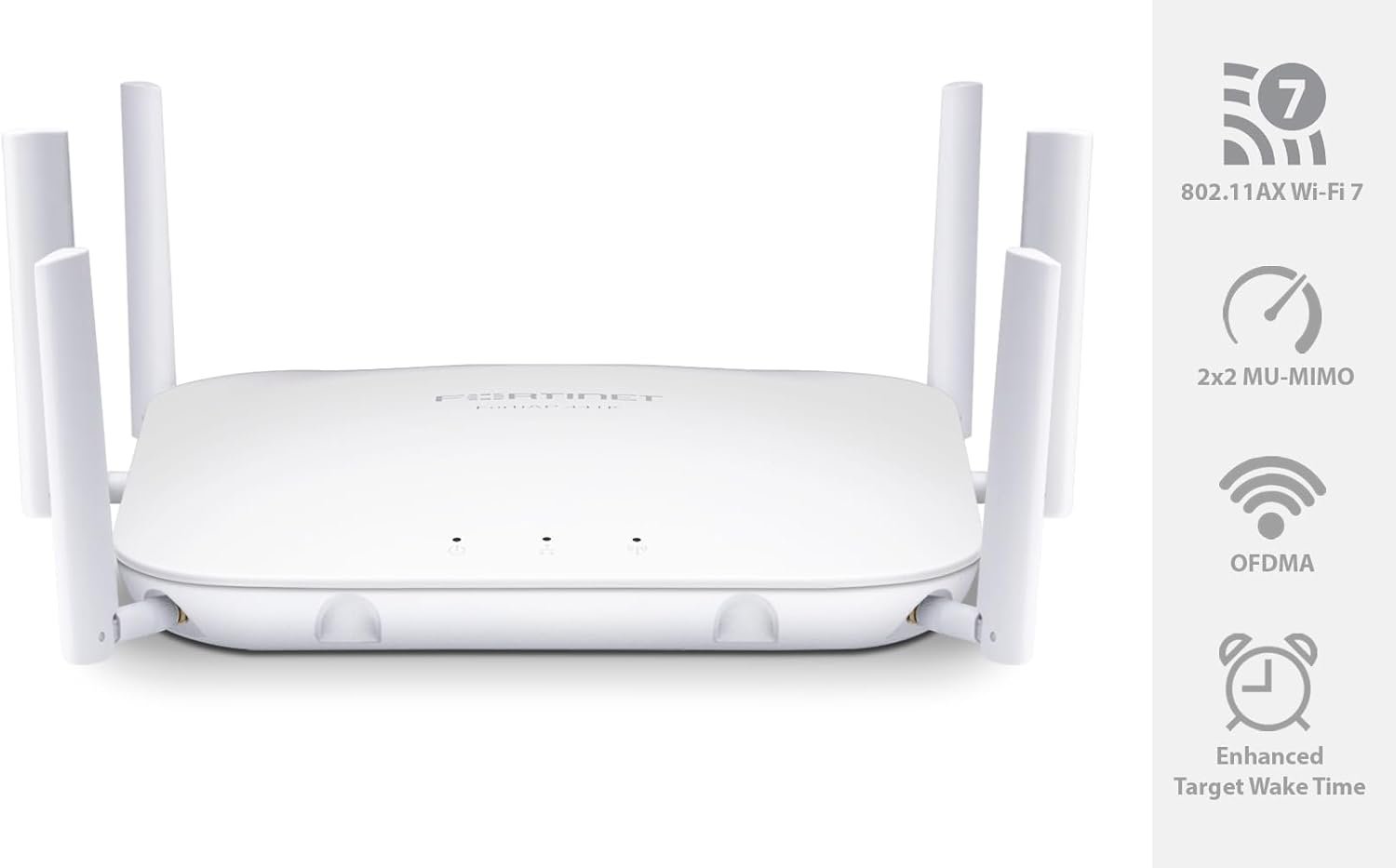

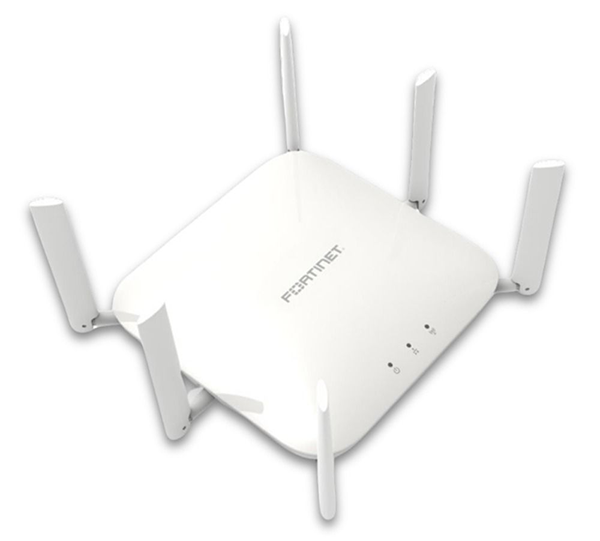

FortiAP 243K - Access Point Wi-Fi 7 Quad-Radio 2x2 MU-MIMO
✔ Wi-Fi 7 (802.11be) Quad-Radio (2.4GHz + 5GHz + 6GHz + scanning)
✔ MU-MIMO 2x2, anten ngoài, tốc độ vượt trội cho môi trường mật độ cao
✔ 1 × 2.5GbE uplink + 1 × 1GbE PoE, quản lý FortiGate/FortiLAN Cloud
Chính sách bán hàng
Hàng chính hãng, CO/CQ đầy đủ
Giá cạnh tranh, ưu đãi dự án & đại lý
Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7
Miễn phí giao hàng toàn quốc
Bảo hành minh bạch, chuyên nghiệp
Hỗ trợ trực tuyến
FortiAP 243K – Access Point Wi-Fi 7 Quad-Radio với anten ngoài cho hiệu năng vượt trội
FortiAP 243K là Access Point Wi-Fi 7 (802.11be) thế hệ mới, hỗ trợ quad-radio với MU-MIMO 2x2. Thiết bị sử dụng anten ngoài, mang lại độ phủ sóng rộng, tốc độ cao và khả năng quét bảo mật 24/7. Đây là lựa chọn lý tưởng cho campus, trung tâm thương mại và doanh nghiệp lớn cần hạ tầng Wi-Fi mạnh mẽ.
Điểm nổi bật của FortiAP 243K
Chuẩn Wi-Fi 7 Quad-Radio
Hỗ trợ 2.4GHz, 5GHz, 6GHz và radio quét chuyên dụng, đảm bảo hiệu năng ổn định và an toàn.
MU-MIMO 2x2
Xử lý đồng thời nhiều kết nối, tăng tốc độ và giảm độ trễ cho ứng dụng thời gian thực.
Anten ngoài
Thiết kế anten ngoài giúp tối ưu vùng phủ sóng cho không gian lớn và môi trường nhiều vật cản.
Kết nối uplink tốc độ cao
1 × 2.5GbE uplink + 1 × 1GbE PoE, dễ dàng triển khai cho hạ tầng tốc độ cao.
Bảo mật toàn diện
Fortinet Security Fabric: Firewall, IPS, Application Control, Web Filter, chuẩn PCI DSS.
Quản lý tập trung
Hỗ trợ quản lý qua FortiGate hoặc FortiLAN Cloud, đơn giản hóa vận hành hệ thống.
Ứng dụng thực tế
Campus & đại học
Cung cấp Wi-Fi mật độ cao, roaming mượt cho sinh viên và giảng viên.
Trung tâm thương mại
Wi-Fi công cộng an toàn, phục vụ hàng nghìn khách hàng cùng lúc.
Doanh nghiệp lớn
Đảm bảo Wi-Fi ổn định cho văn phòng nhiều tầng, chi nhánh phân tán.
Phụ kiện & mở rộng
PoE Injector
Cấp nguồn PoE 802.3at, thuận tiện triển khai FortiAP 243K.
FortiCare Support
Gói hỗ trợ 8x5 hoặc 24x7, đảm bảo hệ thống vận hành liên tục.
FortiLAN Cloud
Quản lý & giám sát từ xa qua nền tảng đám mây.
Kết luận
FortiAP 243K là Access Point Wi-Fi 7 quad-radio anten ngoài, kết hợp tốc độ cao, độ phủ rộng và bảo mật toàn diện. Đây là giải pháp tối ưu cho campus, doanh nghiệp lớn và trung tâm thương mại cần hạ tầng Wi-Fi thế hệ mới.
👉 Liên hệ NAMHI để nhận báo giá & tư vấn triển khai FortiAP 243KFortiAP 32JK | |
---|---|
Hardware | |
Hardware Type | Wi-Fi 7 Indoor AP |
Number of Radios | 3 Wi-Fi + 1 BLE |
Number of Antennas | 5.x2 Dual band Wi-Fi + x2 6GHz band Wi-Fi + x1 BLE/ ZigBee antenna |
Antenna Type Support | N/A |
Antenna Type and Peak Gain | PCB 2.4/5GHz dual band antenna: 4.0 dBi for 2.4GHz, 4.4 dBi for 5 GHz PCB 6GHz antenna: 3.6 dBi for 6GHz band PCB BLE antenna: 3.7 dBi for 2.4GHz |
Supported Frequency Bands (GHz)* | 2.4GHz Band: ISM 2.4‑2.484GHz 5.0GHz Band: UNII‑1 5.15‑5.25GHz, UNII‑2A 5.25‑5.35GHz, UNII‑2C 5.47‑5.73GHz, UNII‑3 5.725‑5.85GHz, UNII‑4 5.85‑5.895GHz 6.0GHz Band: UNII-5 5.925-6.425GHz, UNII-6‑6.425-6.525GHz, UNII-7 6.525-6.875, UNII-8 6.875-7.125GHz |
Radio 1 Capabilities | Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
Radio 2 Capabilities | Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
Radio 3 Capabilities | Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service |
Maximum Data Rate | 2.4GHz band: up to 688 Mbps 5.0GHz band: up to 2.882 Gbps 6.0GHz band: up to 5.765 Gbps |
Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertizement @10 dBm max TX power |
Trusted Platform Module (TPM) | Yes |
GNSS | N/A |

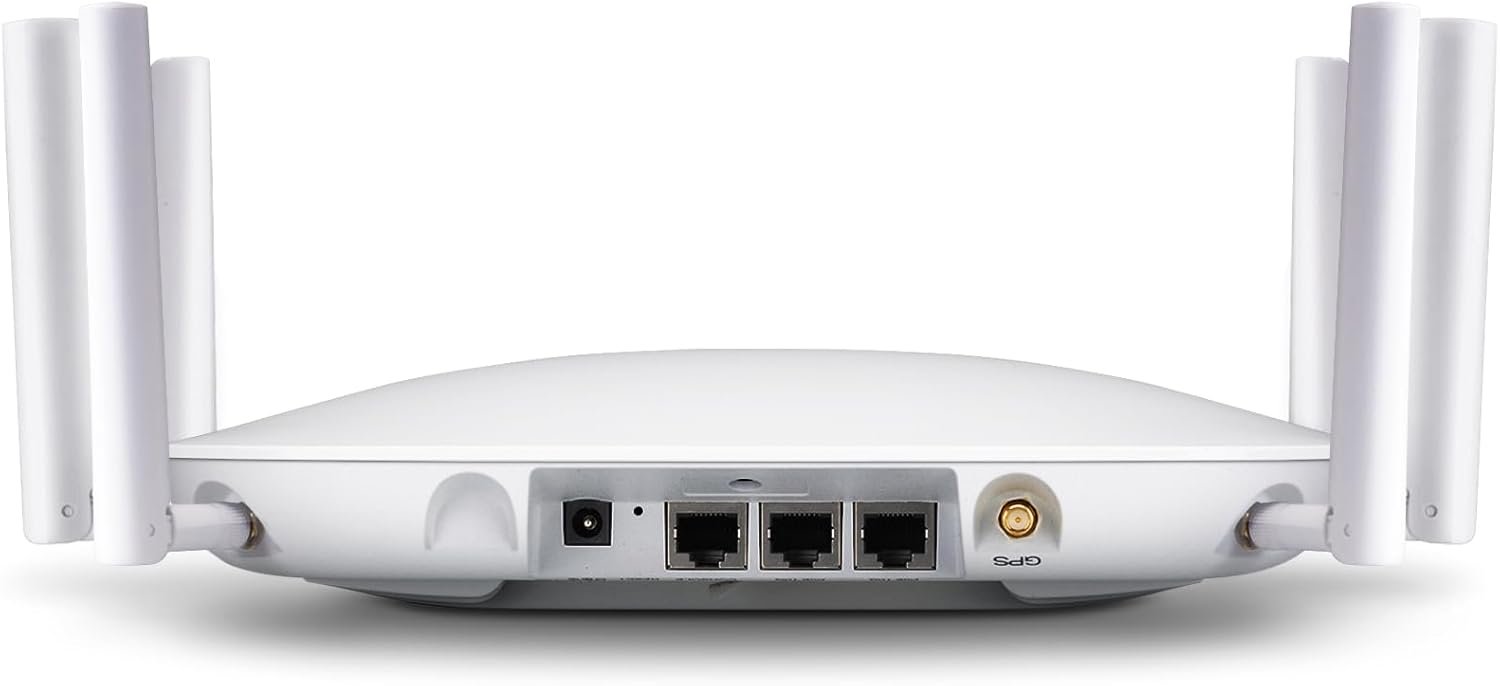

Interfaces | WAN1: x1 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45), 802.3bt PoE(PD) LAN ports: x3 10M/100M/1000M Gigabit Ethernet (RJ45), LAN3 802.3af PoE (PSE) RJ-45 Ports (1xPass-through in, 1xPass-through out) x1 RS-232 RJ45 Serial Port |
Power over Ethernet (PoE) | WAN1: 802.3bt |
Hit-less PoE Failover | N/A |
Simultaneous SSIDs | Up to 8 per client serving radio (7 if background scanning is enabled) |
EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, EAP‑TTLS/PAP |
User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist |
Maximum Tx Power (Conducted) | 2.4GHz band: 25 dBm/316 mW (2 chains combined)* 5.0GHz band: 22 dBm/158 mW (2 chains combined)* 6.0GHz band: 21 dBm/125 mW (2 chains combined@320MHz BW)* |
Kensington Lock | Yes |
IEEE Standards | 802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.11mc, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3az, 802.1Q, 802.11u, 802.11w, 802.3bz |
SSID Types Supported | Local-Bridge, Mesh, and Tunnel |
Per Radio Client Capacity | Up to 512 clients per radio (Radio1, Radio2, and Radio3) |
Cellular Co-existence | Yes |
LED Off Mode | Yes |
Advanced 802.11 Features | |
OFDMA | Yes |
Spatial Reuse (BSS Coloring) | Yes |
UL MU-MIMO | Yes |
DL-MU-MIMO | Yes |
Enhanced Target Wake Time (TWT) | Yes |
ZeroWait DFS | No |
Onboard Security Functions | |
UTP Capable | In Progress |
UTP Features | To be confirmed |
Wireless Monitoring Capabilities | |
Rogue Scan radio modes | Background, Dedicated |
WIPS / WIDS radio modes | Background, Dedicated (recommended) |
Packet Sniffer Mode | Yes |
Spectrum Analyzer | Yes |
Dimensions | |
Length x Width x Height | 7.08 x 4.72 x 1.57 inches (180 x 120 x 40 mm) |
Weight | 1.15 lbs (0.52 kg) |
Package (shipping) Weight | 1.85 lbs (0.84 kg) |
Mounting Options | Wall mount default option and Table top stand option |
Included Accessories | Standard Wall Mounting Kit |
Environment | |
CPU/RAM | Quad-core ARM Cortex-A53 1.5GHz / 2 GB |
Power Supply | 802.3bt PoE (GPI-145) or 802.3at PoE ( GPI-130) without PSE OUT 48V 1A DC power supply (SP-FAP23J-PA-10) |
Power Consumption (Max) | 31 W - PoE input 19 W - PoE input (without PSE OUT) 27.25 W - 54V DC power supply |
Power Sourcing Equipment (PSE) | 802.3af PSE OUT on LAN3 port |
PoE Mode | 802.3bt: R1(2.4GHz) + R2(5GHz) + R3(6GHz) + PSE-OUT 802.3at: R1(2.4GHz) + R2(5GHz) + R3(6GHz) without PSE-OUT |
Humidity | 5% to 90% non-condensing |
Operating/Storage Temp. | 32°F to 113°F (0°C to 45°C) / -22°F to 158°F (-30°C to 70°C) |
Directives | Low Voltage Directive * RoHS |
UL2043 Plenum Material | Yes |
Mean Time Between Failures | >10 Years |
IP Rating | N/A |
Surge Protection Built In | N/A |
Certifications | |
Wi-Fi Alliance Certified | Certified (Wi-Fi 7 in progress) |
DFS | Europe, FCC, Japan, Australia, N |
Warranty | |
Limited Lifetime Warranty | Yes |
