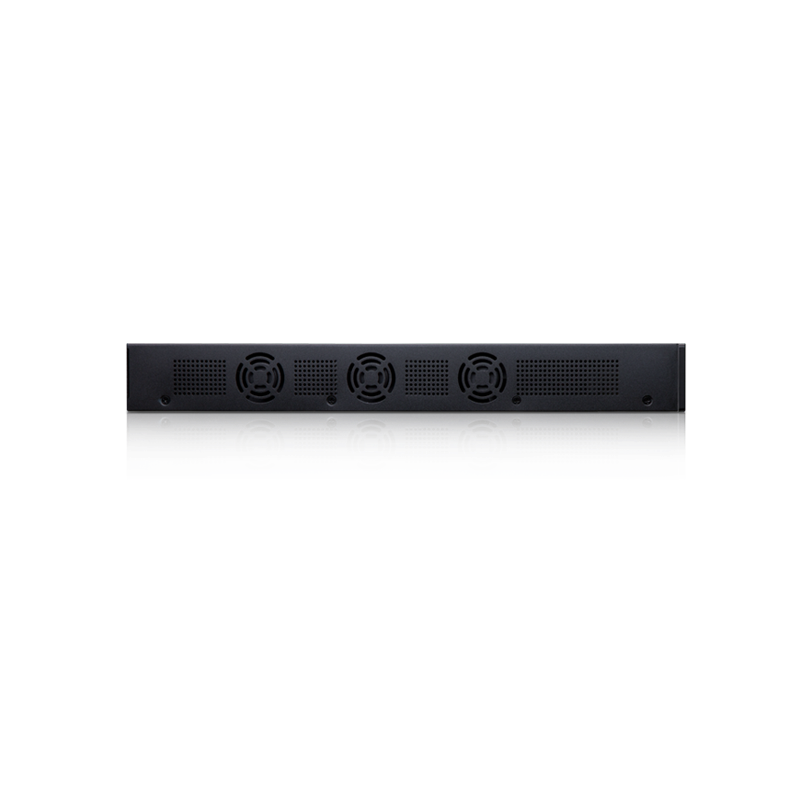

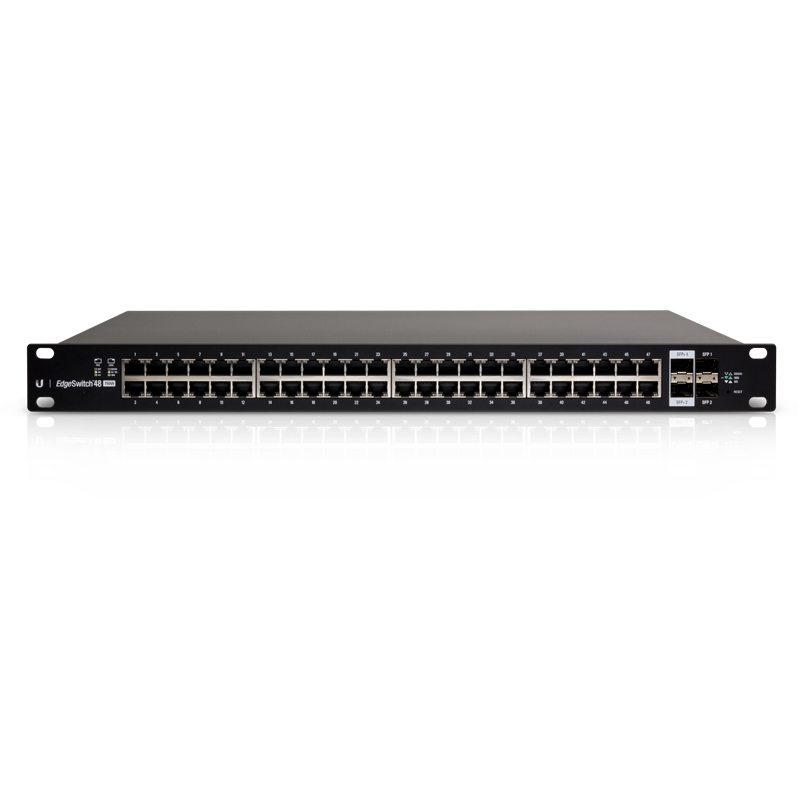

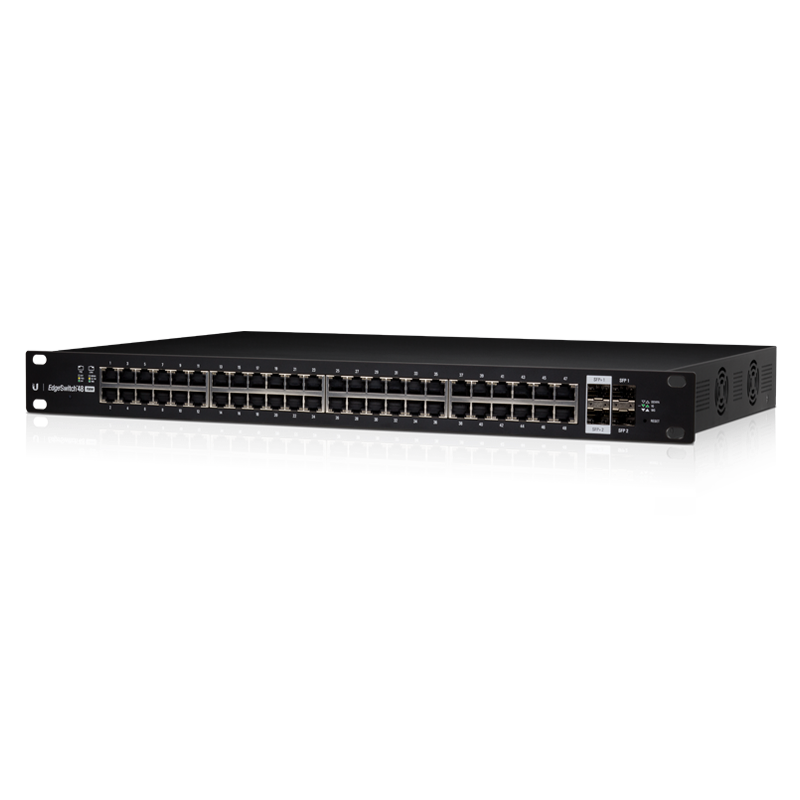

Ubiquiti EdgeSwitch 48 PoE ES-48-750W - 48x Gigabit RJ45 + 4x SFP, 750W

  • Managed Gigabit Switch với 48 cổng RJ45 Gigabit, 2 cổng SFP 1G, và 2 cổng SFP+ 10G.

  • Hỗ trợ PoE+/24V Passive PoE, tổng công suất 750W, tối đa 34.2W/port.

  • Hiệu năng cao: 70 Gbps non-blocking throughput, 140 Gbps switching capacity, 104.16 Mpps forwarding rate.

  • Thiết kế rackmount 1U, vỏ bền chắc, trọng lượng 6.5 kg.

  • Nguồn cấp AC/DC internal PSU 750W, hỗ trợ vận hành liên tục.

  • Ổn định trong môi trường -5 đến 40 °C, 5–95% RH.

  • Đạt chứng nhận CE, FCC, IC, NDAA compliant.

SKU: ES-48-750W
Danh mục: EdgeMAX Switching
Liên hệ

Chính sách bán hàng

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ trực tuyến

Kinh doanh 0915 206 133

Hỗ trợ Kỹ thuật 098 336 5702

Email info@namhi.com.vn

Thông số kỹ thuật:

Mechanical
Dimensions485 x 43.7 x 374.6 mm (19.1 x 1.7 x 14.8")
Weight6.5 kg (14.3 lb)
Hardware
Networking interface(48) 10/100/1000 Mbps RJ45 Ethernet ports
(2) 1/10 Gbps SFP+ Ethernet ports
(2) 1 Gbps SFP Ethernet ports
Management interface(1) RJ45 serial port, Ethernet In/Out-Band
Total non-blocking throughput70 Gbps
Switching capacity140 Gbps
Forwarding rate104.16 Mpps
Power method100-240V AC, 50-60 Hz, universal input
Power supplyAC/DC, internal, 750W
Max. power consumptionIncludes PoE output: 750W
Excludes PoE output: 64W
ESD/EMP protectionAir/contact: ±24 kV
LEDsRJ45 pports: PoE, speed/link/activity
SFP ports: speed/link/activity
RackmountYes, 1U high
Shock and vibrationETSI300-019-1.4 Standard
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
NDAA CompliantYes
PoE Per Port
PoE interfacesPoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ wattage per port by PSE34.2W
Voltage range PoE+ mode50–57V
Max. passive PoE wattage per port17W
24V passive PoE voltage range20-27V
