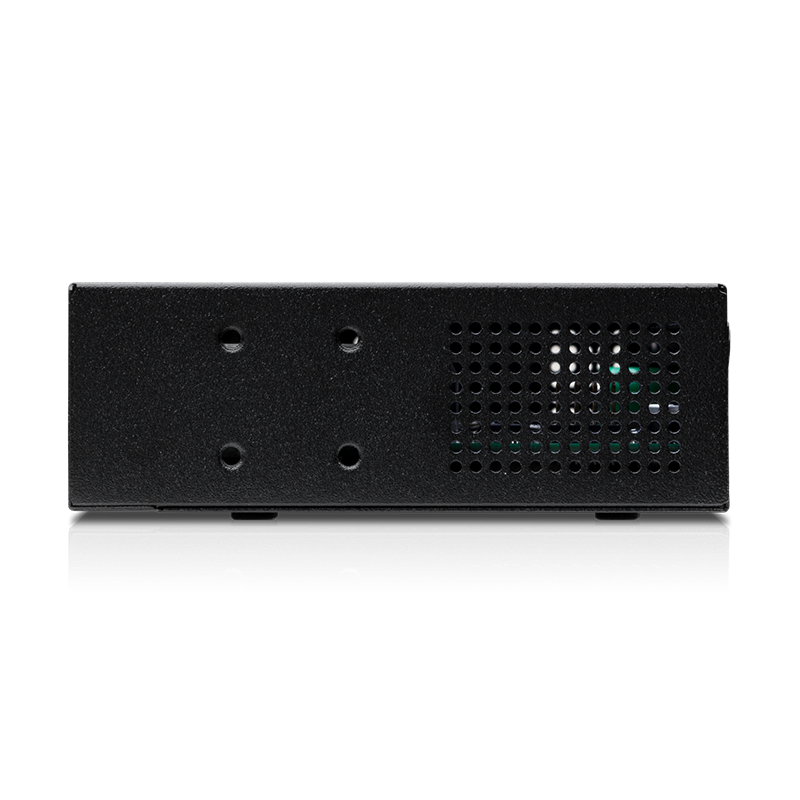

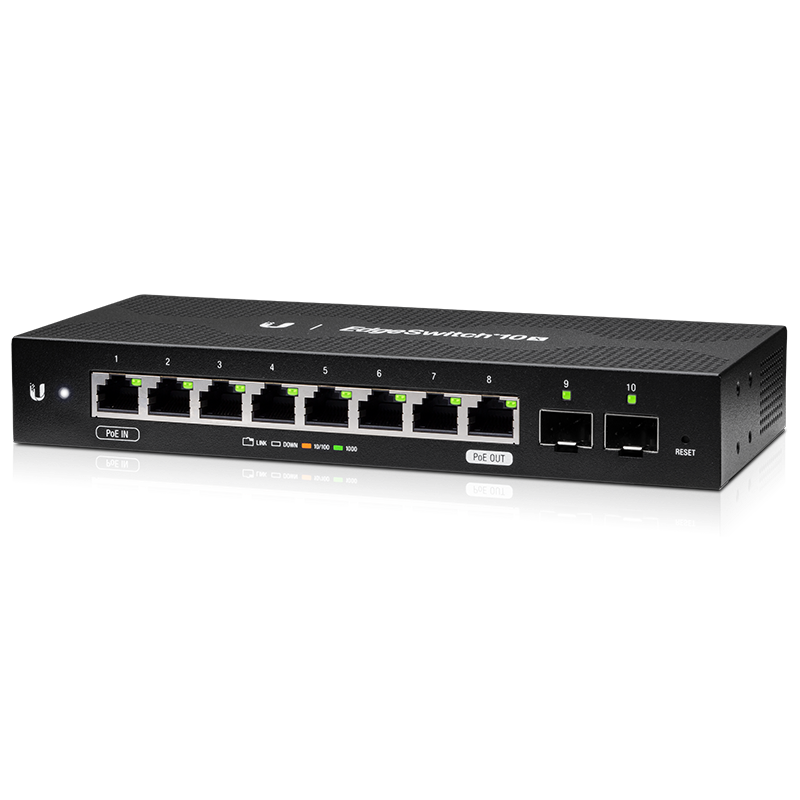

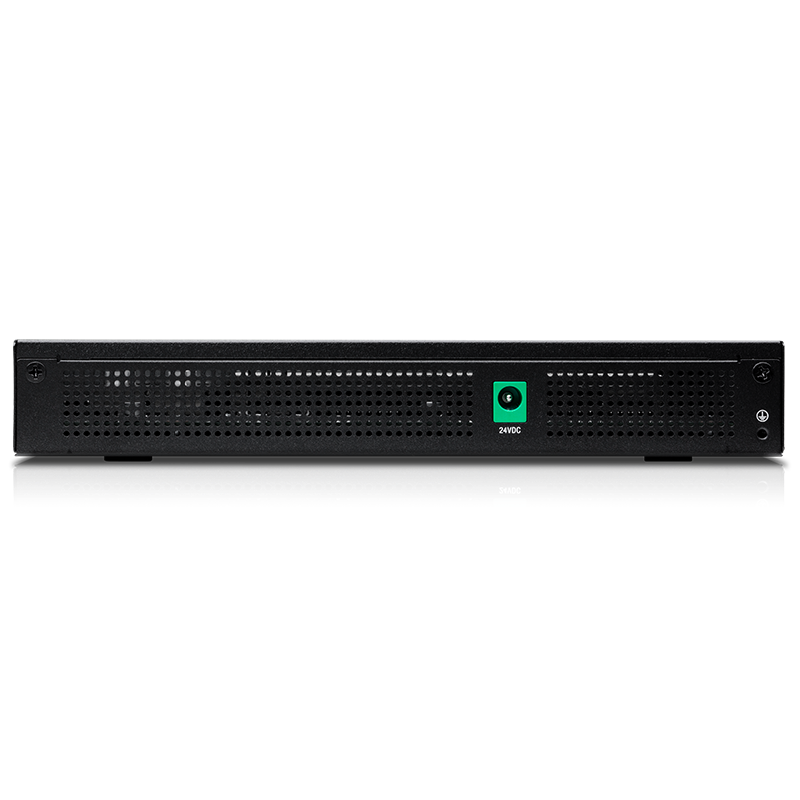

EdgeSwitch 10X

Name: EdgeSwitch 10X
Brand: N/a
SKU: ES-10X
Availability: InStock
Rating: 0 (0 reviews)

(8) 10/100/1000 Mbps RJ45 ports (2) 1 Gbps SFP ports

SKU: ES-10X

Liên hệ

Hàng chính hãng, CO/CQ đầy đủ

Giá cạnh tranh, ưu đãi dự án & đại lý

Tư vấn miễn phí, hỗ trợ kỹ thuật 24/7

Miễn phí giao hàng toàn quốc

Bảo hành minh bạch, chuyên nghiệp

Hỗ trợ Kỹ thuật 098 336 5702

Mechanical
Dimensions	207 x 31.1 x 90 mm (8.2 x 1.2 x 3.5")
Weight	500 g (1.1 lb)
Hardware
Networking interface	(8) 10/100/1000 Mbps RJ45 ports (2) 1 Gbps SFP ports
Management interface	Ethernet In-Band
PoE interface	24V DC passive PoE (Pins 4, 5+; 7, 8-)
Total non-blocking throughput	10 Gbps
Switching capacity	20 Gbps
Forwarding rate	14.88 Mpps
Power method	24V DC, 1A power adapter (Included) 24V passive PoE
Supported voltage range	9–30V DC
Max. passive PoE wattage per port	15W
24V passive PoE voltage range	24V
Max. power consumption	8W (Excluding PoE output)
LEDs	System: status RJ45 ports: link/speed/activity SFP ports: link/activity
ESD/EMP protection	Air/contact: ± 24 kV
Shock and vibration	ETSI300-019-1.4 Standard
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
NDAA Compliant	Yes
