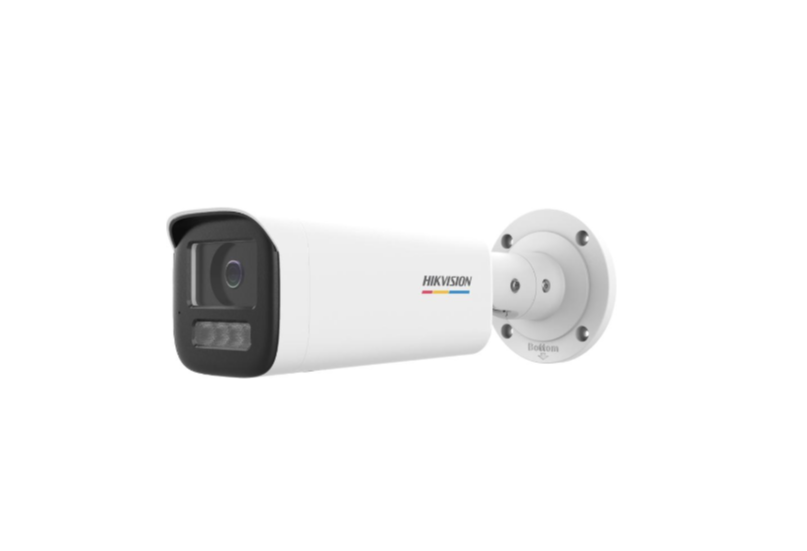

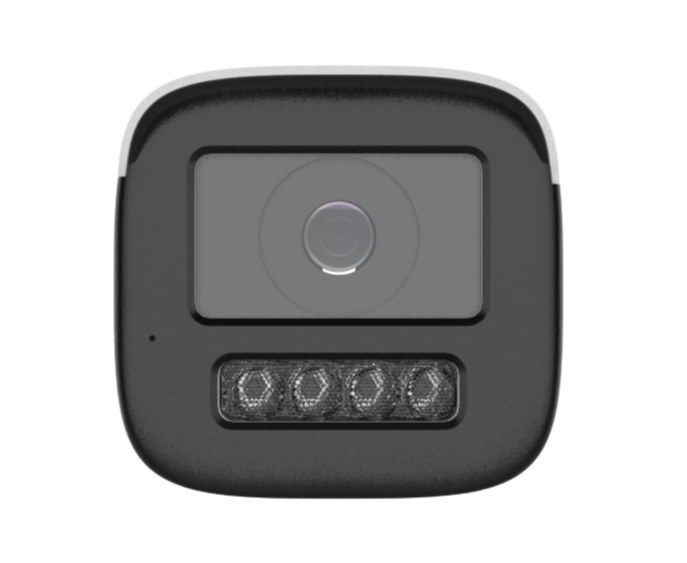

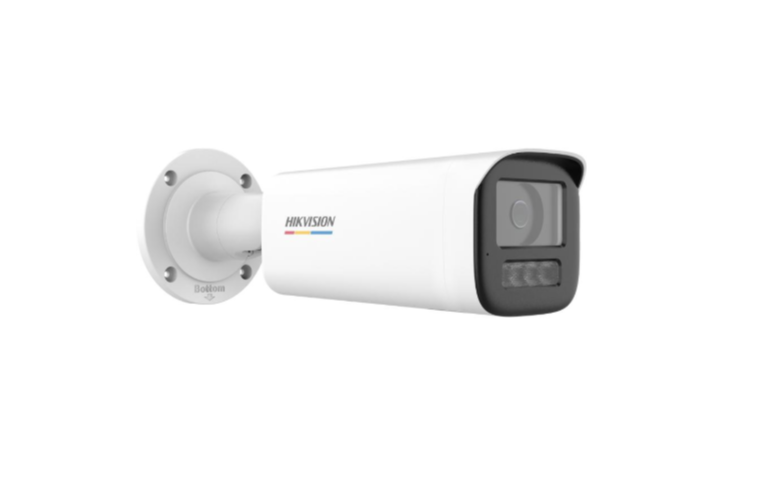

Camera Hikvision DS-2CD1B47G3H-LIU(F) 4MP ColorVu 3.0 | Full Color 24/7, Motion Detection 3.0, IP67

Download Datasheet

• Máy ảnh
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0001 Lux @ (F1.0, AGC ON)
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7°

  4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5°

• Lens MountM16
• Iris TypeFixed
• ApertureF1.0
• Depth of Field

  2.8 mm: 2.5 m to ∞

  4 mm: 2.8 m to ∞

• DORI
• DORI

  2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m

  4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz:

  25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz:

  24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (768 × 432, 640 × 360)

  60 Hz: 24 fps (768 × 432, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+

• Image
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage



  NA

• Built-in MicrophoneYes,1 built-in microphone
• Built-in SpeakerNA
• Reset Key



  NA

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP,notify surveillance center,send email,trigger recording,trigger capture

• General
• Power

  12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 9 W

• MaterialCover: PLASTIC, main body: METAL
• Dimension69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8")
• Package Dimension210 mm × 116 mm × 106 mm (8.3" × 4.6" × 4.2")
• WeightApprox. 310 g (0.7 lb.)
• With Package WeightApprox. 465 g (1.0 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
• General FunctionHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
• Flashing LightNA

• Approval
• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU

• ProtectionIP67: IEC 60529-2013
