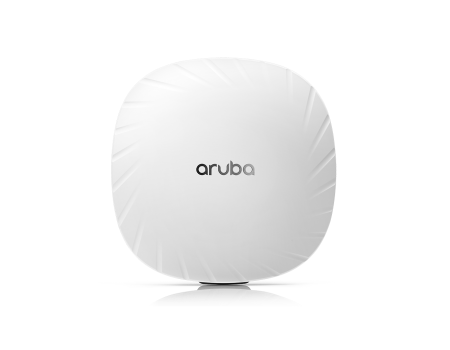

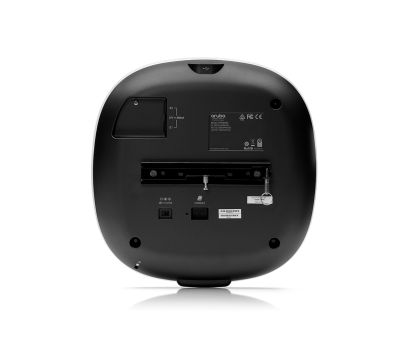

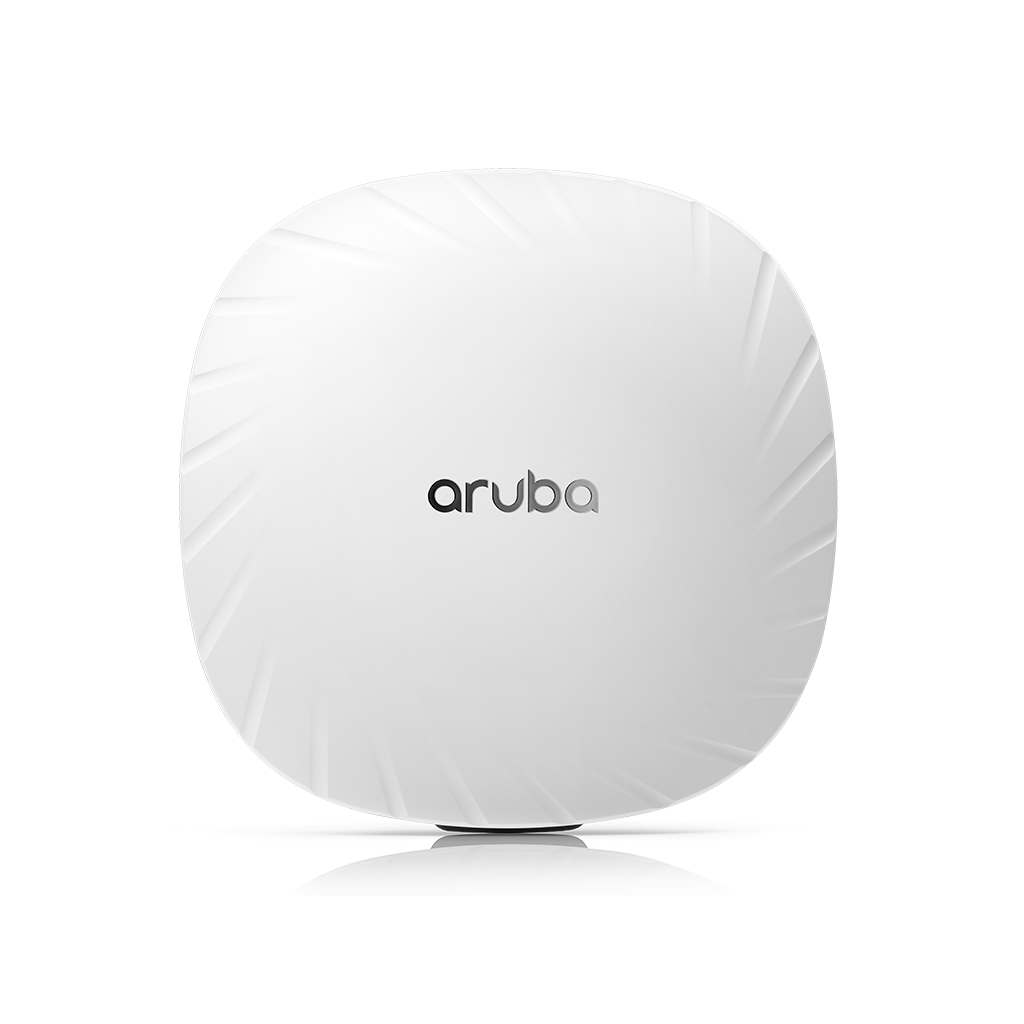

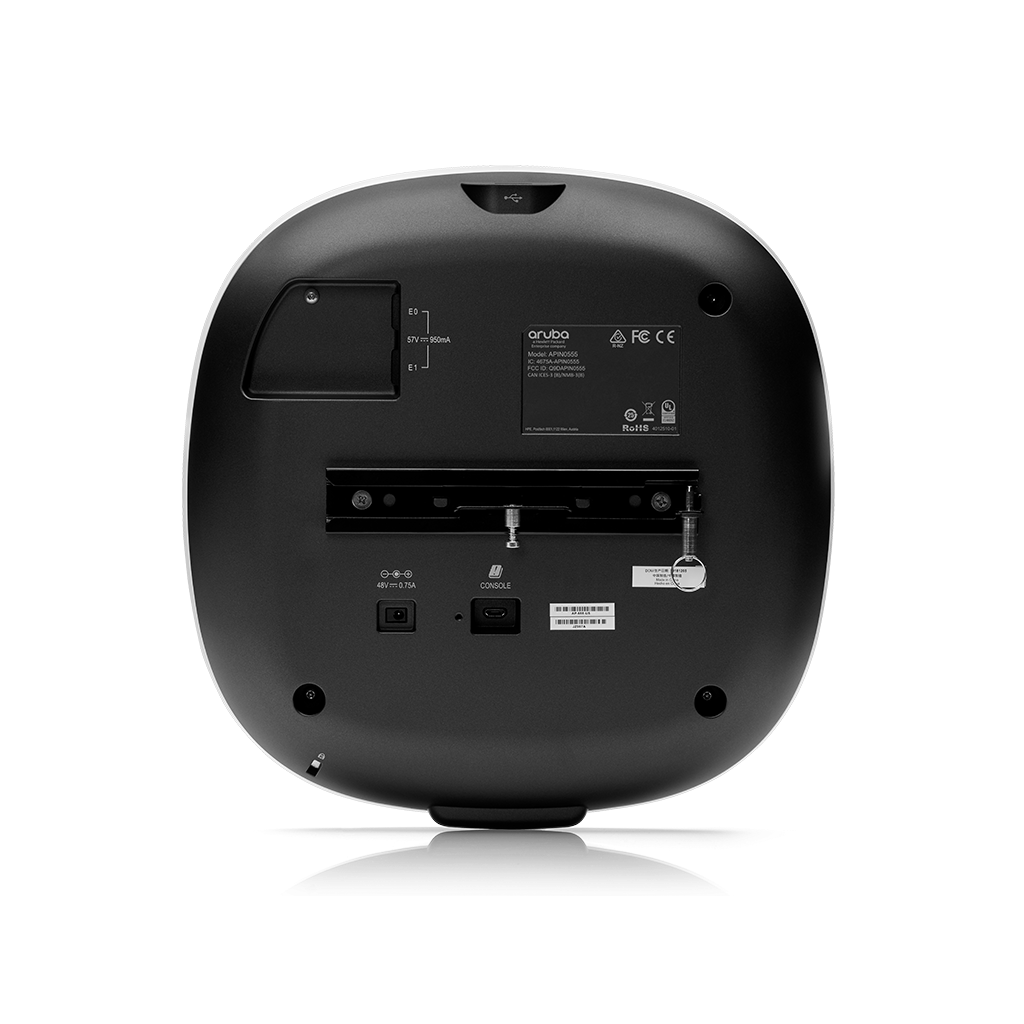

Aruba AP-555

Mã sản phẩm : Aruba AP-555

Giá bán : Liên hệ

Aruba AP-555 - Thiết bị phát sóng Wi-Fi 6 (802.11ax) của HPE Aruba Networking cung cấp kết nối hiệu suất cao cho bất kỳ tổ chức nào đang phải đáp ứng số lượng thiết bị di động và IoT ngày càng tăng. Với tổng tốc độ dữ liệu đỉnh lên đến 5.37 Gbps, dòng HPE Aruba Networking 550 Series Campus Access Points mang lại tốc độ và độ tin cậy cần thiết cho các doanh nghiệp.

Các tính năng chính của Aruba 555

Tốc độ dữ liệu đỉnh lên đến 5.37 Gbps
Hỗ trợ bảo mật Wi-Fi Protected Access phiên bản 3 (WPA3) và Enhanced Open
Tích hợp công nghệ giúp khắc phục vấn đề "sticky client" cho cả thiết bị Wi-Fi 6 và Wi-Fi 5
Hỗ trợ OFDMA và MU-MIMO giúp cải thiện hiệu suất cho nhiều người dùng cùng lúc
Tích hợp Bluetooth 5, Near Field Communication (NFC) và Zigbee, sẵn sàng cho ứng dụng IoT
Chế độ ba radio tùy chọn, hỗ trợ hai radio 5GHz và một radio 2.4GHz (4x4 MIMO)
Công nghệ định vị tiên tiến, cho phép đo lường vị trí chính xác trong không gian trong nhà

Specifications	Description
Interfaces	E0, E1: HPE SmartRate port (RJ-45, maximum negotiated speed 5 Gb/s) Auto-Sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX 2.5 Gb/s and 5 Gb/s speeds comply with NBase-T and 802.3 bz specifications Power Over Ethernet (POE)-PD: 48 V dc (Nominal) 802.3af/at/bt POE (Class 3 or higher) 802.3az Energy Efficient Ethernet (EEE) Link Aggregation Control Protocol (LACP) support between both network ports for redundancy and increased capacity POE Power can be drawn from either port (Single source, or set to prioritize) or both ports simultaneously (Set to combine) DC power interface: 48 V dc (Nominal, +/- 5%), accepts 1.35 mm/3.5 mm Center-Positive circular plug with 9.5 mm length USB 2.0 host interface (Type A connector) Capable of sourcing up to 1A / 5 W to an attached device Bluetooth Low Energy (BLE5.0) and zigbee (802.15.4) radio BLE: up to 8 dBm transmit power (Class 1) and -99 dBm receive sensitivity (125 kb/s) Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity A pair of integrated omni-directional antennas (Polarization diversity) with roughly 30 degrees downtilt and peak gain of 4.5 dBi Visual indictors (Two multi-color LEDs): For system and radio status Reset button: factory reset, LED mode control (Normal/OFF) Serial console interface (Proprietary, Micro-B USB physical jack) Kensington security slot
WI-FI Antennas	Integrated downtilt omni-directional antennas for 4 x 4 Multiple-Input, Multiple-Output (MIMO) in 2.4 GHz with peak antenna gain of 4.3 dBi, and 8x8 MIMO in 5 GHz with peak antenna gain of 5.8 dBi in 5 GHz. In Tri-Radio mode, the peak gain of the antennas for each of the 4 x 4 5 GHz radios is 5.5 dBi (Radio 0L, lower half of 5 GHz) and 5.6 dBi (Radio 0U, upper half of 5 GHz). Built-in antennas are optimized for horizontal ceiling mounted orientation of the Access Point (AP). The down tilt angle for maximum gain is roughly 30 degrees A mix of horizontally and vertically polarized antenna elements is used Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.4 dBi in 2.4 GHz and 0.7 dBi in 5 GHz (Dual-Radio mode). In Tri-Radio mode, the peak gain of the combined, average pattern is 1.1 dBi (Radio 0L, lower half of 5 GHz) and 3.6 dBi (Radio 0U, upper half of 5 GHz)
Hardware variants	AP-555: Internal antenna models
Additional Wi-Fi features	Each AP also includes the following standards-based technologies: Transmit beamforming (TxBF) increases signal reliability and range. Passpoint Wi-Fi (Release 2) (Hotspot 2.0) offers seamless cellular-to-Wi-Fi carry over for guests. Dynamic Frequency Selection (DFS) optimizes use of available RF spectrum. Maximum Ratio Combining (MRC) improves receiver performance. Cyclic Delay/Shift Diversity (CDD/CSD) provides greater downlink RF performance. Space-Time Block Coding increases range and improved reception. Low-Density Parity Check (LDPC) provides a high-efficiency error correction for increased throughput.

top

Specifications	Description
Direct DC source	The AP supports direct DC power and POE (POE; on port E0 and/or E1) When POE power is supplied to both ethernet ports, the AP can be configured to combine or prioritize power sources When both DC and POE power sources are available, DC power takes priority over POE
POE	Power sources are sold separately; see the ordering Information section below for details When powered by DC, 802.3 bt (Class 5) POE or 2 x 802.3 at (Class 4) POE, the AP will operate without restrictions. When powered by 1x 802.3at (Class 4) POE and with the IPM feature disabled, the AP will disable the USB port, disable the other ethernet port, operate the 5 GHz radio in 4 x 4 mode, and disable Tri-Radio operation In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE budget and actual power. The feature restrictions and order can be programmed Operating the AP with an 802.3af (Class 3 or lower) POE source is not supported
Maximum (Worst-Case) power consumption	DC Powered: 38.5 W POE Powered (802.3 bt or dual 802.3 at): 38.2 W POE Powered (802.3 at, IPM enabled): 25.1 W All numbers above are without an external USB device connected. When sourcing the full 5 W power budget to such a device, the incremental (Worst-Case) power consumption for the AP is up to 5.7 W (POE Powered) or 6 W (DC Powered)
Maximum (Worst-Case) power consumption in idle mode (Dual-Radio operation)	18 W (POE) or 18 W (DC) In tri-radio mode, this increases to 18 W (POE) or 18 W (DC).
Maximum (Worst-Case) power consumption in deep-sleep mode	3 W (POE) or 3 W (DC)

top

Specifications	Description
Dimensions (H x W x D)	AP-555: (Unit, excluding mount accessories) 58 x 260 x 260 mm (2.3 x 10.2 x 10.2 in)
Dimensions (H x W x D)	AP-555: (Shipping) 108 x 320 x 303 mm (4.3 x 12.6 x 11.9 in)
Weight	AP-555: (Unit, excluding mount accessories) 1,570 g (3.46 lb)
Weight	AP-555: (Shipping) 2,230 g (4.91 lb)

top

Specifications	Description
Operating temperature	0° to 50°C (32° to 122°F)
Operating humidity	5% to 93% Non-Condensing AP is plenum rated for use in air-handling spaces ETS 300 019 class 3.2 environments
Storage and transportation temperature	-40° to 70°C (-40° to 158°F) Humidity: 5% to 93% Non-Condensing ETS 300 019 Class 3.2 environments
Reliability	Mean Time Between Failure (MTBF): 962,134 hrs (110 years) at +25°C operating temperature

top

Specifications	Description
Certifications	UL2043 Plenum rating Wi-Fi Alliance: Wi-Fi Certified a, b, g, n, ac Wi-Fi Certified ax WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi vantage, W-Fi agile multiband Wi-Fi Location Passpoint (Release 2) Bluetooth SIG Ethernet alliance (POE, PD device, class 4)
Regulatory model numbers	AP-555: APIN0555
Regulatory compliance	FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low voltage directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2
NOTE: Will require software update. Certification effort will be kicked off as soon as the Wi-Fi Alliance starts the program. Not available initially; will require a software upgrade.

top

Specifications	Description
AP Type	Indoor, dual/tri-radio, 5 GHz and 2.4 GHz 802.11ax 4 x 4 MIMO
Software-Configurable dual radio	Supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz Radio (Dual-Radio operation): Eight spatial stream Single User (SU) MIMO for up to 4.8 Gb/s wireless data rate with individual 8SS HE80 (or 4SS HE160) 802.11ax client devices, or with eight 1SS or four 2SS HE80 802.11ax Multi-User (MU), MIMO capable client devices simultaneously 5 GHz Radio (Tri-Radio operation): Four spatial stream SU MIMO for up to 2.4 Gb/s wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously 2.4 GHz Radio: Four spatial stream SU MIMO for up to 1,150 Mb/s wireless data rate with individual 4SS HE40 802.11ax client devices or with two 2SS HE40 802.11ax MU-MIMO capable client devices simultaneously
Support for client devices per radio	Upto 1,024 associated client devices per radio (Typical recommended limit for active clients is 200) Upto 16 BSSIDs per radio
Supported frequency bands (Country-Specific restrictions apply)	2.400 to 2.4835 GHz - (Radio 1) 5.150 to 5.250 GHz - (Radio 0 and 0L) 5.250 to 5.350 GHz - (Radio 0 and 0L) 5.470 to 5.725 GHz - (Radio 0 and 0U) 5.725 to 5.850 GHz - (Radio 0 and 0U)
Available channels	Dependent on configured regulatory domain
RF Spectrum	DFS optimizes the use of available RF spectrum
Supported radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency-Division Multiple Access (OFDMA) with up to 37 resource units (For an 80 MHz channel)
Supported modulation types	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (Proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (Proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n High Throughput (HT) support	HT20/40
802.11ac Very High Throughput (VHT) support	VHT20/40/80/160
802.11ax High Efficiency (HE) support	HE20/40/80/160
Transmit power	Configurable in increments of 0.5 dBm
Supported data rates (Mb/s)
